i
Individualization and data transfer
Page 50
screensavers
images
drinks
custom
rc
QML files
Drive
You must maintain a specific directory structure so that the A800 can
recognize your images without difficulty.
Create the folder structure one time, save it and it will be quickly available.
You can also generate this directory structure automatically. For this, use
the menu item 1.7 Generate directory structure.
Necessary folder structure on the USB stick

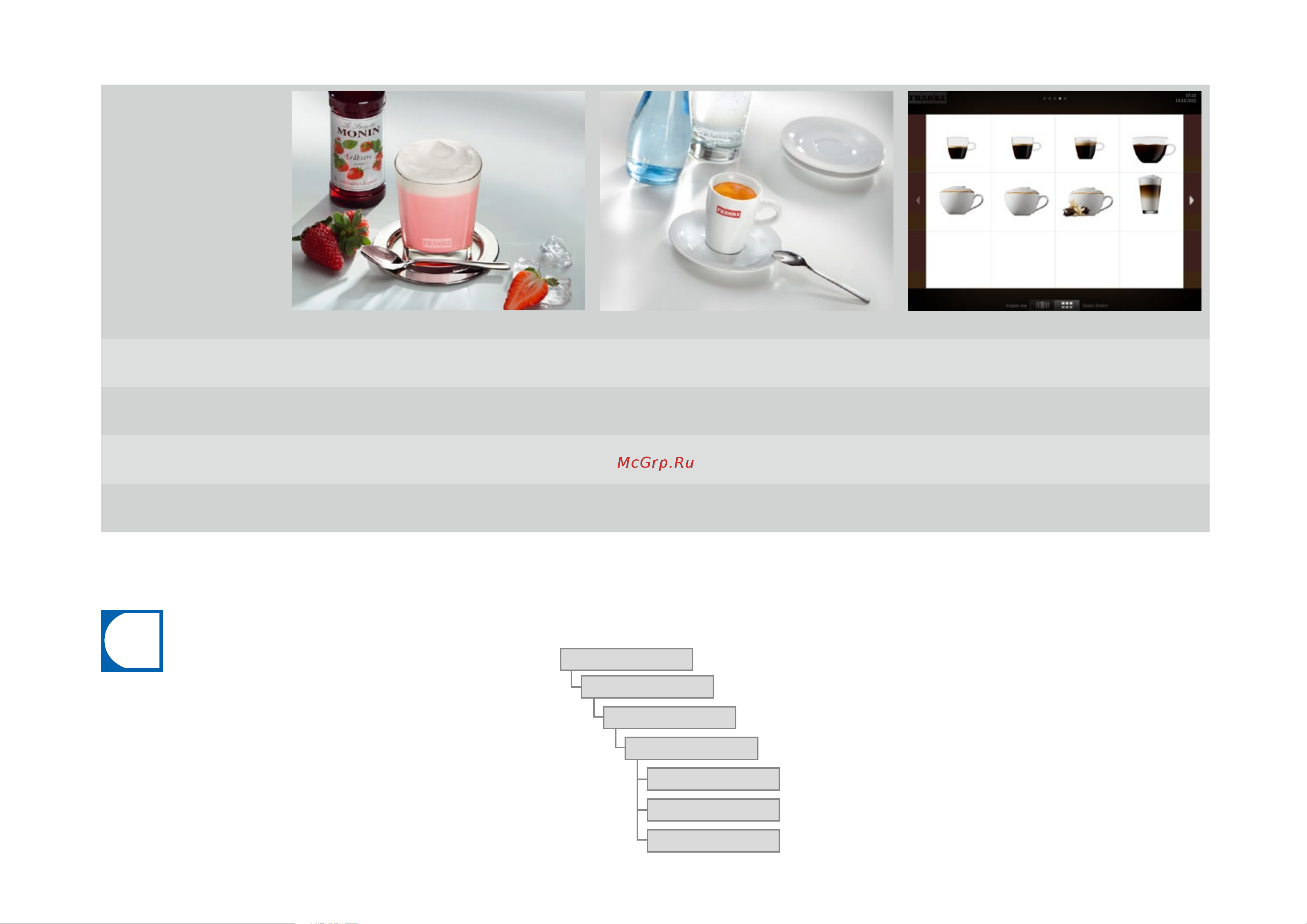

Advertising images Screen saver Drink images
Image size
(width x height)
800 x 600 px 800 x 600 px 430 x 274 px
Data format PNG with 24-bit PNG with 24-bit PNG with 24-bit and 8-bit alpha channel if
necessary
Orientation --- --- Centered on vertical axis
Memory folder on USB stick Drive:\QML-Files\rc\custom\images Drive:\QML-Files\rc\custom\screensavers Drive:\QML-Files\rc\custom\drinks
Requirements of my image material
