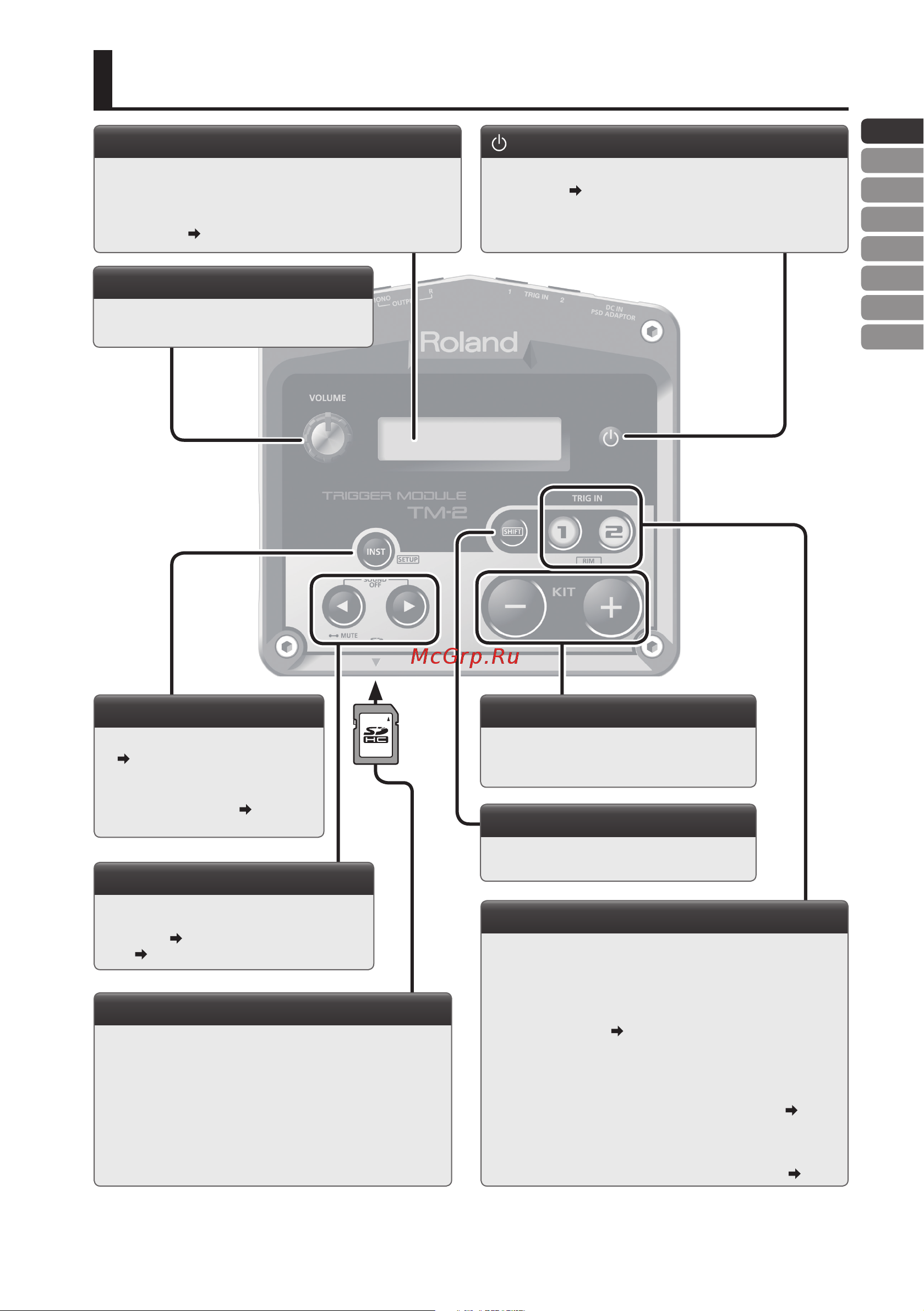

Panel Descriptions
* The explanations in this manual include illustrations that depict what should typically be shown by the display. Note, however, that your
unit may incorporate a newer, enhanced version of the system (e.g., includes newer sounds), so what you actually see in the display may
not always match what appears in the manual.
[INST] button
• Displays the instrument edit screen.
p. 11
• If you hold down the [SHIFT] button
and press the [INST] button, the
setup screen appears.
p. 14
Display
When you turn on the power, the display shows the kit number
and name. If you press the [INST] button, the display shows
parameters and values.
Display settings p. 14
[-] [+] buttons
Use these buttons to switch kits.
In screens such as the edit screen, use these
buttons to edit parameter values.
[SHIFT] button
You can access a variety of functions by using
this in conjunction with other buttons.
[VOLUME] knob
Adjusts the volume of the OUTPUT jacks and
PHONES jack.
TRIG IN [1] [2] buttons
• When you strike a pad, the corresponding TRIG IN [1] [2]
button lights.
• When editing an instrument, use the TRIG IN [1] [2] buttons to
select the pad whose settings you want to change. To select
the rim, hold down the [SHIFT] button and press a TRIG IN
button. (Head, Rim
p. 8)
Preview
When you press a TRIG IN button, the instrument will sound,
allowing you to audition the tone. You can also change a setting
so that sound is not heard when you press the button. p. 14
Trigger lock on/o
If you long-press the TRIG IN [1] or [2] button, the target for
editing will not change even when you strike the pads. p. 14
[<] [>] buttons
Use these buttons to switch parameters or pages.
SOUND OFF p. 8
MUTE p. 8
SD card slot
You can insert an SD card into this slot.
Push the SD card once again to eject.
* Never insert or remove an SD card while this unit is turned
on. Doing so may corrupt the data on the SD card.
* Carefully insert the SD card all the way in—until it is rmly in
place.
[ ] (Power) button
Turns the power on/o. Hold down the button until the power
turns on or o. p. 6
