Roland TM-2 Trigger Module [7/23] Connecting pads

7

ENG

JPN

DEU

FRA

ITA

ESL

POR

NLD

TRIG IN 1 TRIG IN 2

HEAD RIM HEAD RIM

Use an RT-10K to enhance an acoustic

kick, and add a PD-128S electronic second

snare

—

Add a KD-7 kick trigger, and a BT-1 to start

phrases

— —

* Choke play is not supported.

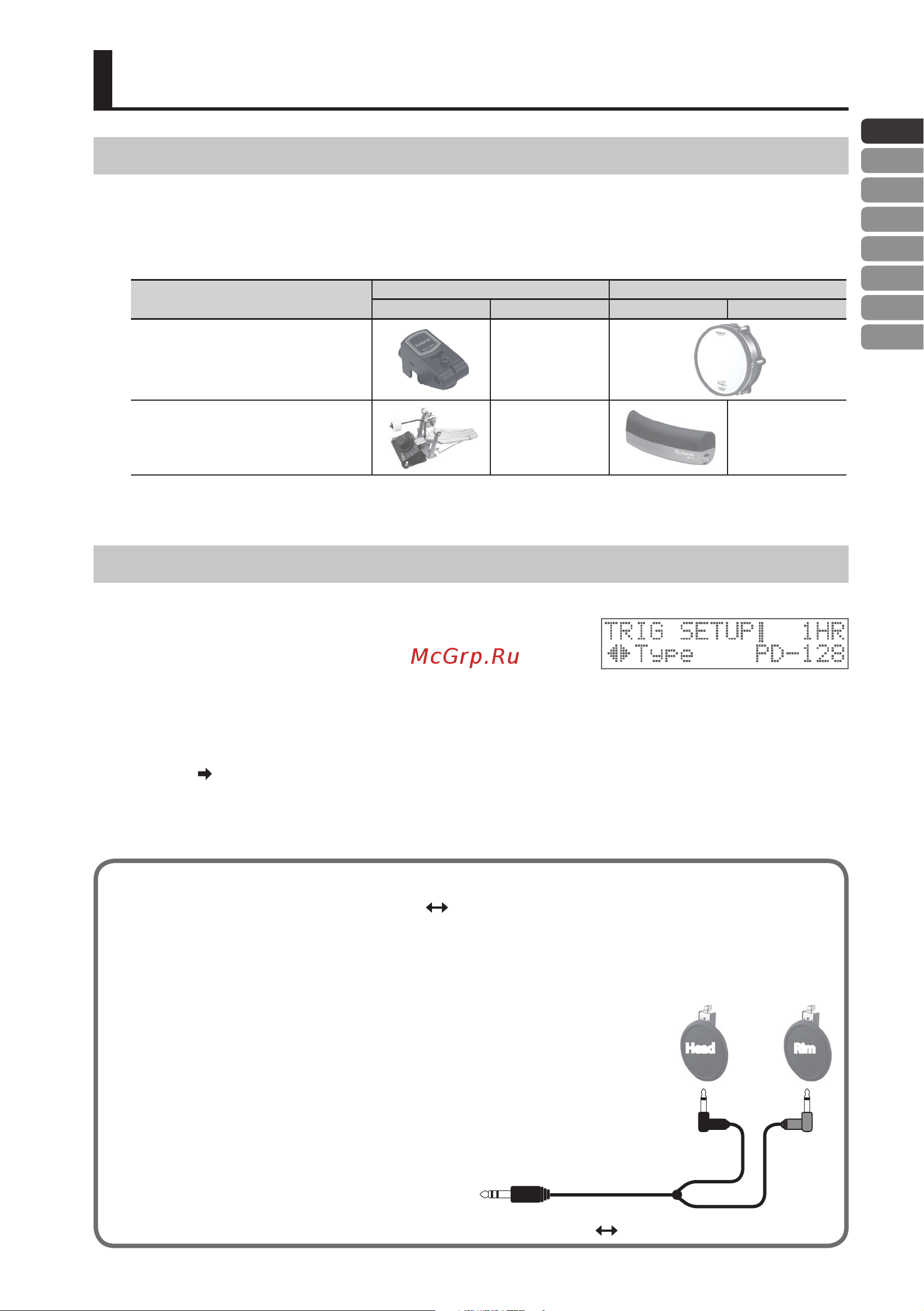

The TRIG SETUP–Type screen will appear.

Press the TRIG IN [1] or [2] button to select the pad for which you want to make settings.

You can also select a pad by striking it.

Use the [-] [+] buttons to select the type of the pad that’s connected.

If you connect a drum trigger, adjust the parameters as appropriate for how it’s attached and how the head is

stretched. p. 16

Press the [INST] button several times to return to the kit screen.

By using a connection cable (1/4” stereo phone plug 1/4” phone plug x 2: sold separately) you can connect two pads to

one TRIG IN jack. This lets you use separate pads to play the head and rim of one TRIG IN jack.

* With this connection, striking the rim of the pad won’t produce sound.

Connection cable

(1/4” stereo phone 1/4” phone x 2: sold separately)

Head Rim

To TRIG IN 1 or 2

1.

Hold down the [SHIFT] button and press the [INST] button.

2.

Use the [-] [+] buttons to select “PADx2.”

5.

Press the [>] button.

Strike the two pads to select them, and specify the

type of each pad.

* Satisfactory operation cannot be obtained if “BT-1” is

selected as the type. When using a BT-1, select “BT-1

SENS” as the type.
