5 LA8 AMPLIFIED CONTROLLER
LA8 AMPLIFIED CONTROLLERLA8 AMPLIFIED CONTROLLER
LA8 AMPLIFIED CONTROLLER
5.1 Main features
5.1.1 Front and rear panel

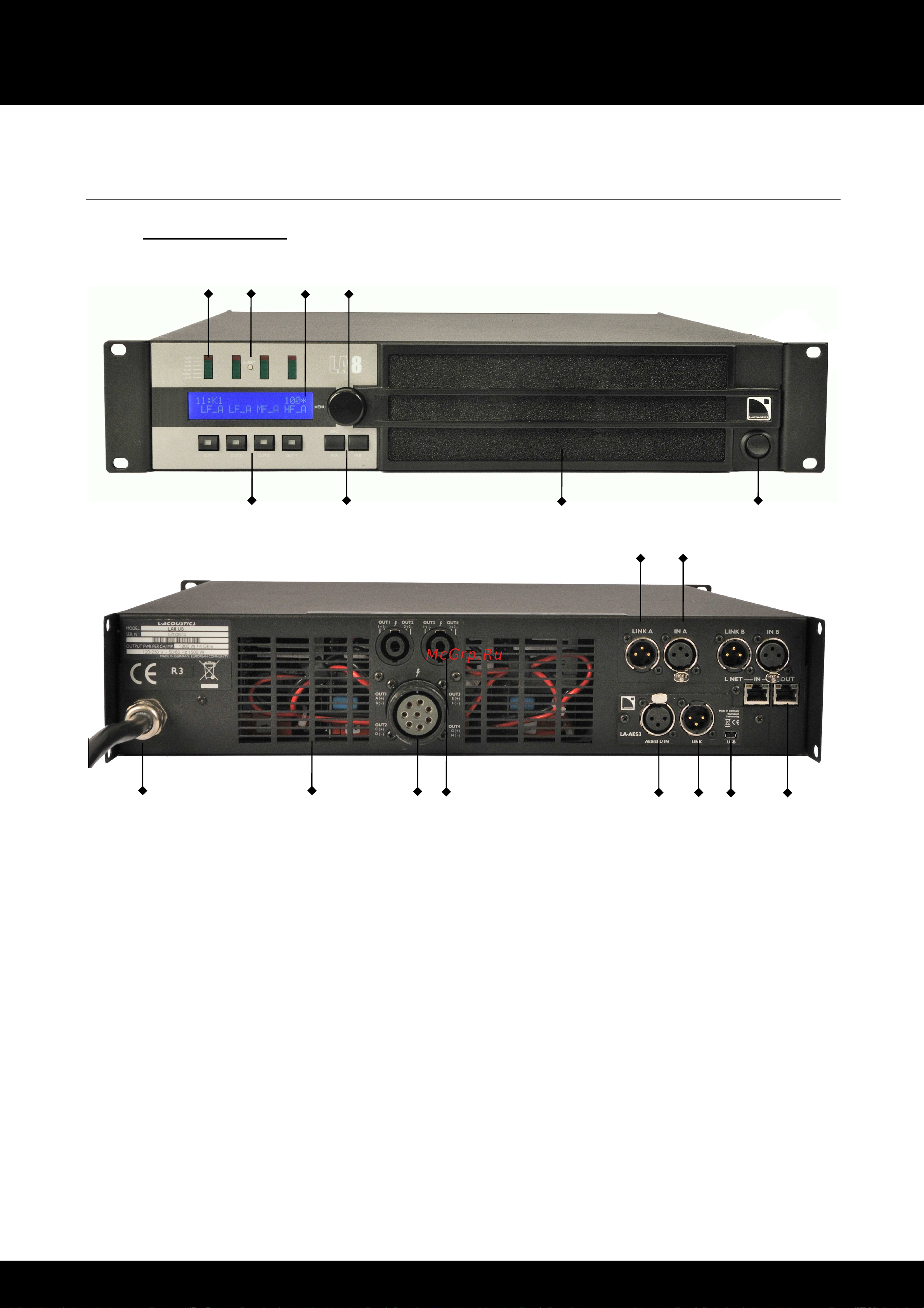

Figure 3: LA8 amplified controller front & rear panels
1
On/Off
s
witch
2 Anti-dust cover
3 Input selection + Menu keys
4 Output selection keys
5 Load LED
Signal presence LED
Level and clip bargraph LED
6 L-NET network control LED
7 LCD screen
8 Nav/Edit encoder wheel
9
XLR
connector
for analog signal
10 XLR link connector for analog signal
11 XLR input connector for digital signals (AES/EBU)
12 XLR link connector for digital signals (AES/EBU)
13 Mini-USB port reserved for future applications
14 RJ45 L-NET network sockets
15 SpeakON
®
output connector
16 CA-COM
®
output connector
17 Fan grill
18 AC power cord
4 3
2
1
18 17
16
10 9
11 14
1
3
12
1
5
5 6 7
