6.1 Mounting

The LA8 is two rack units high (2U) and can be mounted in an EIA-standard 19’’ rack (Figure 6). Four mount points are

provided on the controller front panel for rack mounting. Use four screws and washers when mounting the controller

to the front rack rails.

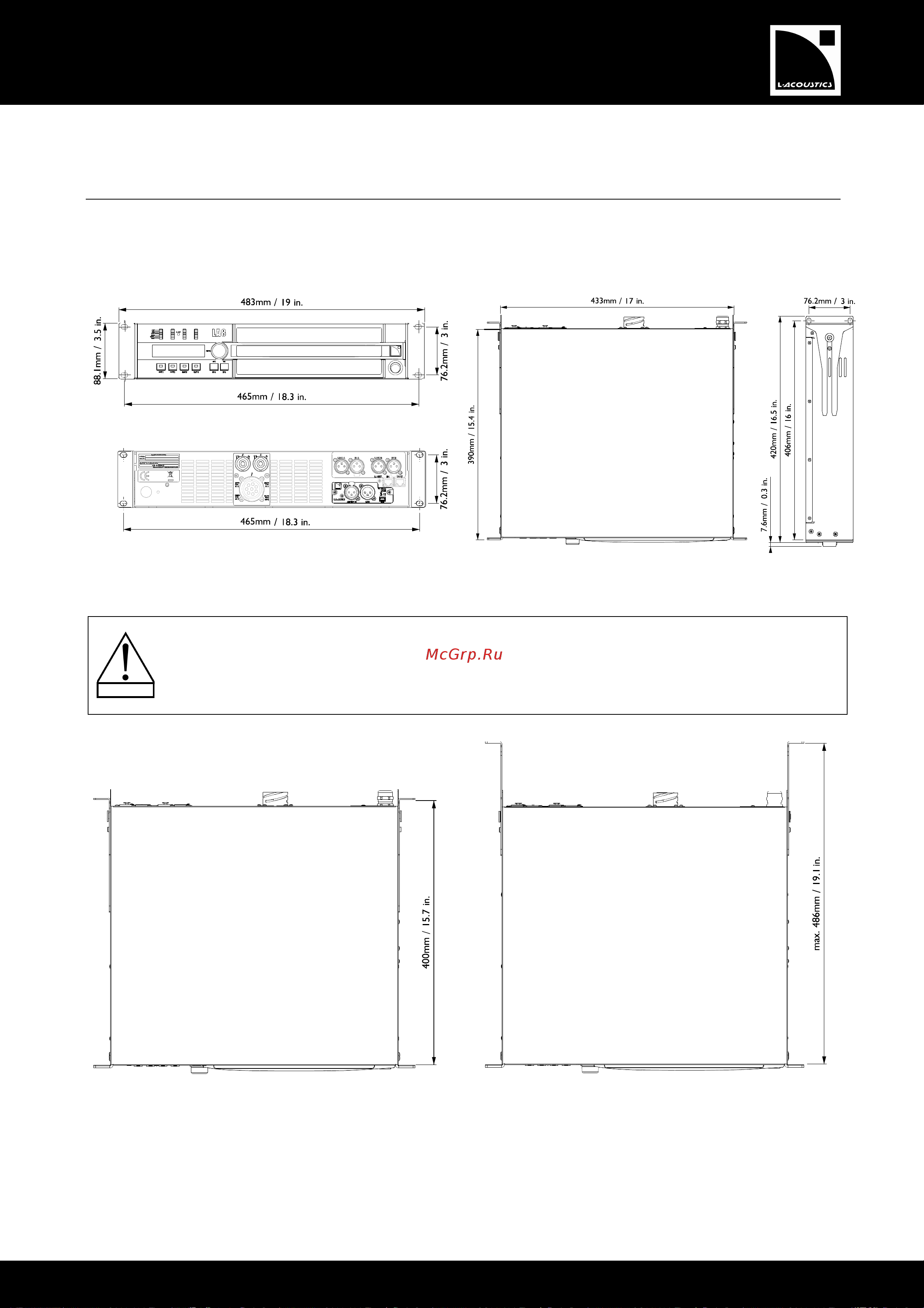

Figure 6: Controller dimensions

During transport or while on tour it is essential that the LA8 controllers are rear supported in addition to

the front panel mounting. Use the rear rack support brackets provided with the controller as described in

Figure 7.

Any mechanical damage to LA8 controllers used in portable applications without rear support will not be

covered by warranty.

Figure 7: Controller and rear rack support brackets

Note: The L-ACOUSTICS

LA-RAK touring rack is available for three LA8 with all power and signal connection

facilities (please refer to the LA-RAK User manual or Spec sheets [3.4]).
