8.2 Authorized service procedure

8.2.1 Replacement kits

The replacement kits (KR) available for the customer are shown in Figure 37 and listed in Table 7 with reference to the

corresponding service procedure.

Service and repair work for any other part must be carried out by an L-ACOUSTICS

authorized

representative. Otherwise, the customer may be exposed to dangerous situations and the warranty will

no longer apply.

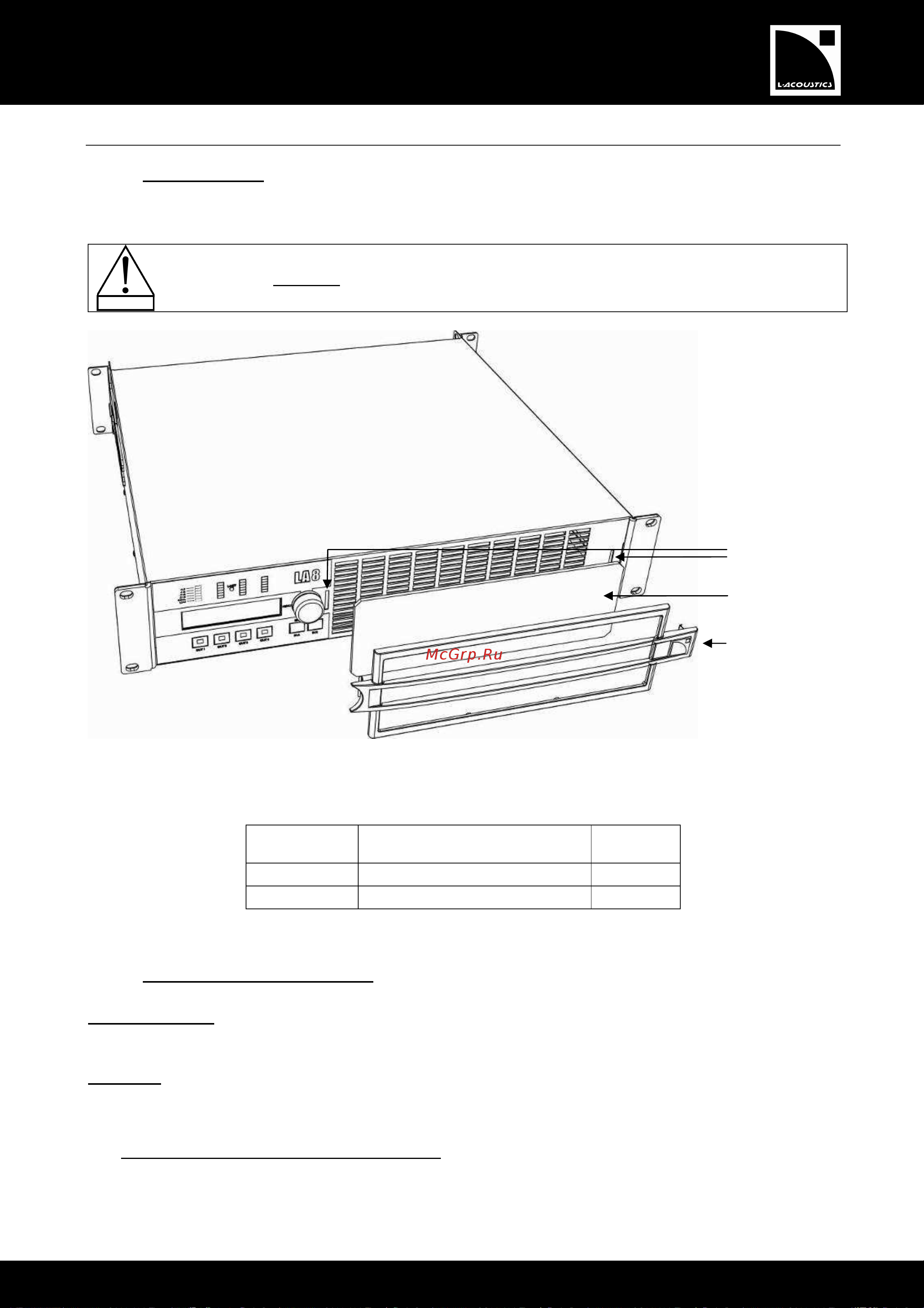

Figure 37: Front FRAME and FOAM FILTER

Table 7: Replacement kits

Reference Description

Service

procedure

KR LAXGRI Front FRAME [8.2.2]

KR LAXMOU Set of 10 front FOAM FILTERS [8.2.2]

8.2.2 Front FRAME and FOAM FILTER

Required material

KR LAXGRI kit (optional) KR LAXMOU kit (optional)

Procedure

1. Unclip the front FRAME by pulling on it.

2. Remove the FOAM FILTER.

3. If the FOAM FILTER is not intended to be replaced, clean it with mild dishwashing detergent or soap and dry it.

4. Install the old/new FOAM filter.

5. Align the old/new front FRAME with both clip holes on the CHASSIS (logo on the right) and push until it is locked.

WARNING

KR LAXGRI

KR LAXMOU

Clip holes
