KUDO_UM_ML_2-0
w w w . l - a c o u s t i c s . c o m
9
99
9 en
EN
5
55
5 KUDO
KUDOKUDO
KUDO
®
ENCLOSURE
ENCLOSURE ENCLOSURE
ENCLOSURE
The L-ACOUSTICS
®
KUDO
®
enclosure contains two 1.75” HF diaphragm compression drivers coupled to individual
DOSC
®
waveguides, four 5” MF transducers mounted in a V-shaped configuration, and two direct-radiating 12” LF
transducers mounted in a bass reflex-loaded enclosure. Based on a quad amplified 3-way design, the nominal impedance of
the KUDO
®
enclosure is 8 ohms for each of the HF and MF sections and each of both LF sections.
Fulfilling WST
®
(Wavefront Sculpture Technology) coupling conditions with a coplanar transducer configuration and a dual
DOSC
®
waveguide the KUDO
®
can be qualified as a true line source array. This configuration also provides even coverage
without secondary lobes over the KUDO
®
coverage pattern.
The KUDO
®
is unique in the sense that in conjunction to WST
®
coverage pattern adjustment can now be performed in
the perpendicular plane of the DOSC
®
waveguides using the K-LOUVER
®
Modular Directivity Technology. Four
coverage pattern settings can be mechanically adjusted: 50° (symmetric), 110° (symmetric), 25° x 55° (asymmetric), and 55°
x 25° (asymmetric).
The KUDO
®
fully integrated rigging allows KUDO
®
enclosures to combine the functions of a variable curvature vertical
line source array (like V-DOSC
®
) and a constant curvature horizontal line source array (like ARCS
®
).
Given the choice of four directivity settings and 2 orientations the KUDO
®
multi-mode WST
®
enclosure is offering an
unrivaled level of flexibility that represent the equivalent of 8 different products. The Figure 4 shows three vertical line
source array configurations, the fourth one being the symmetric of the 55° / 25° picture. The other four configurations
are obtained by setting the enclosures as horizontal line source arrays.
The KUDO
®
cabinet is made of high grade Baltic birch plywood with remarkable mechanical and acoustical properties
for improved long term durability.

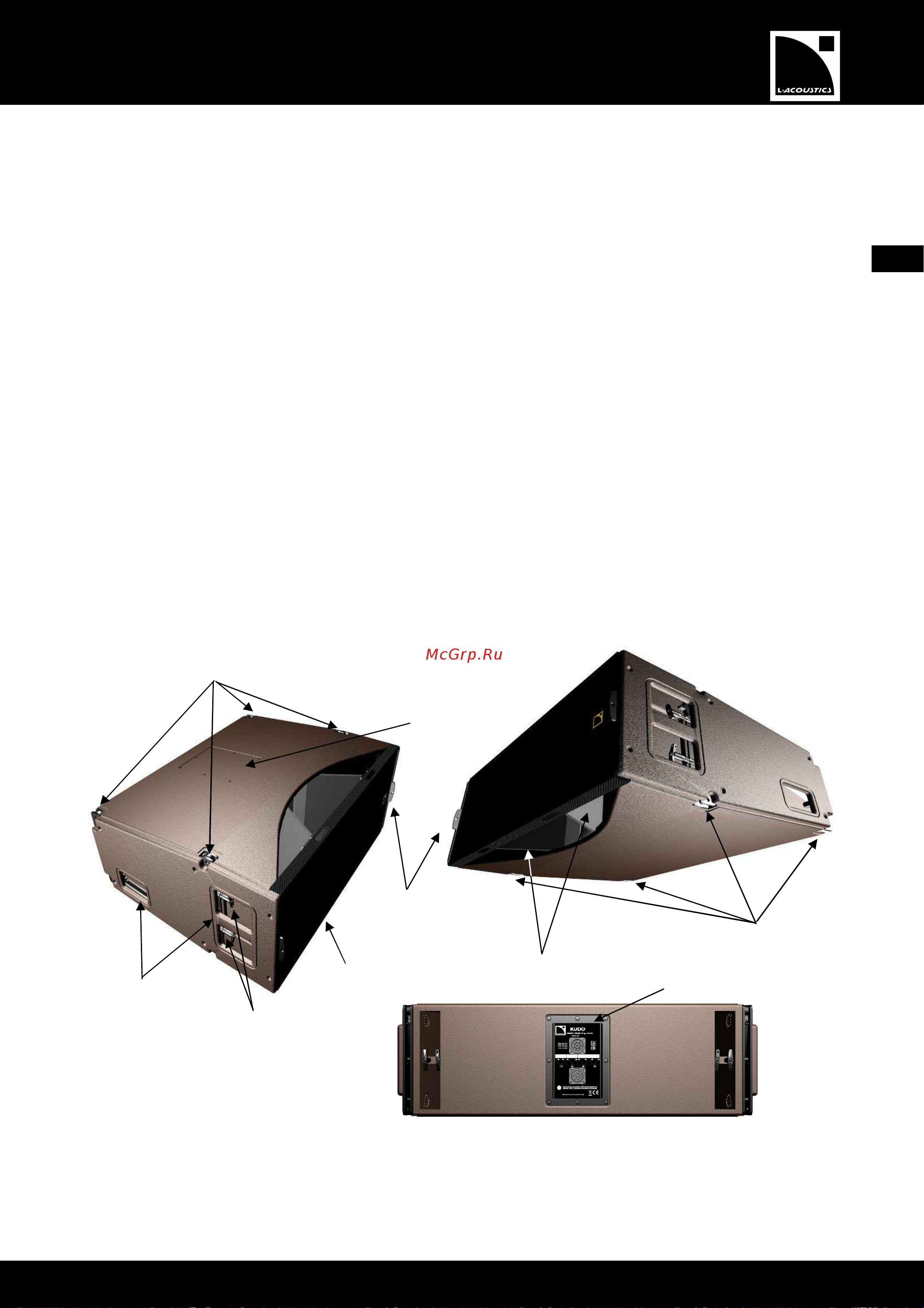

Figure 3: The KUDO
®
enclosure
Grill
Front locator studs
K
-
LOUVER
®
panels
Four rigging points
Hatch
Two rotating arms allowing angle
setting and four-point rigging
Grip handles
Ball locking pins
pins
Connector socket
