KUDO_UM_ML_2-0
w w w . l - a c o u s t i c s . c o m
11
1111
11 en
EN
6
66
6 INSTALLATION
INSTALLATIONINSTALLATION
INSTALLATION
6.1 Shipping and setting-up the KUDO
®
6.1.1 Shipping the KUDO
®
The optional L-ACOUSTICS
®
KPLA-2 dolly board (see Figure 1) secures to the KUDO
®
enclosure by inserting both
captive dolly board’s ball locking pins in the enclosure’s front locator studs, thus allowing easy transportation and
protection of the enclosure.
It is recommended to use the L-ACOUSTICS
®
KCOV protective cover in conjunction with the
KPLA-2.

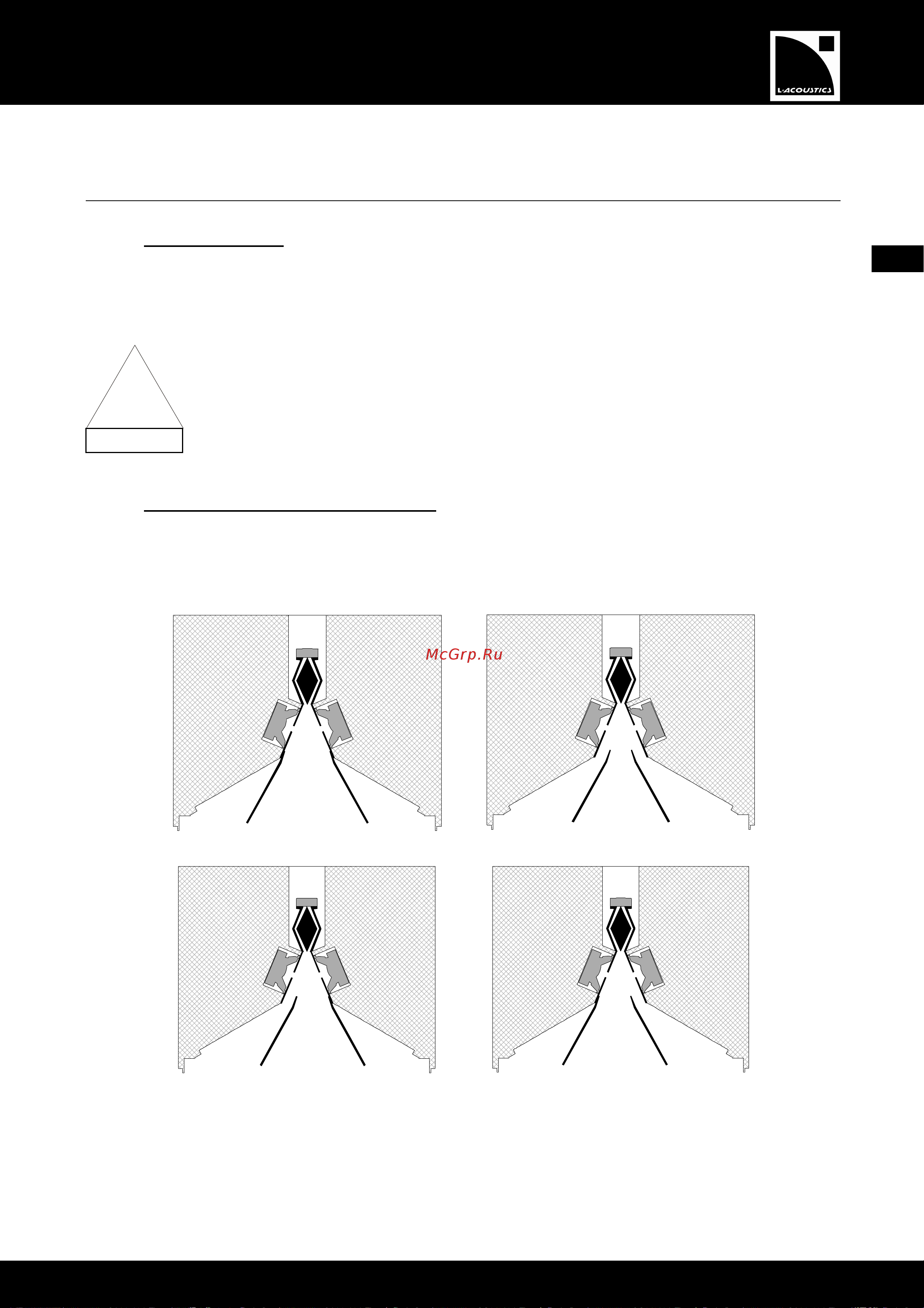

6.1.2 K-LOUVER
®
coverage pattern adjustment
KUDO
®
incorporates K-LOUVER
®
modular directivity technology that allows the enclosure to be configured with 4
different directivity settings: 50° or 110° symmetric patterns or 80° left or right asymmetric patterns, as shown in the
following figure:
25° / 25° (50° symmetric)
55° / 55° (110° symmetric)
55° / 25° (80 ° asymmetric - left)
25° / 55° (80 ° asymmetric - right)
Figure 5:
K-LOUVER
®
directivity configurations
!
IMPORTANT
