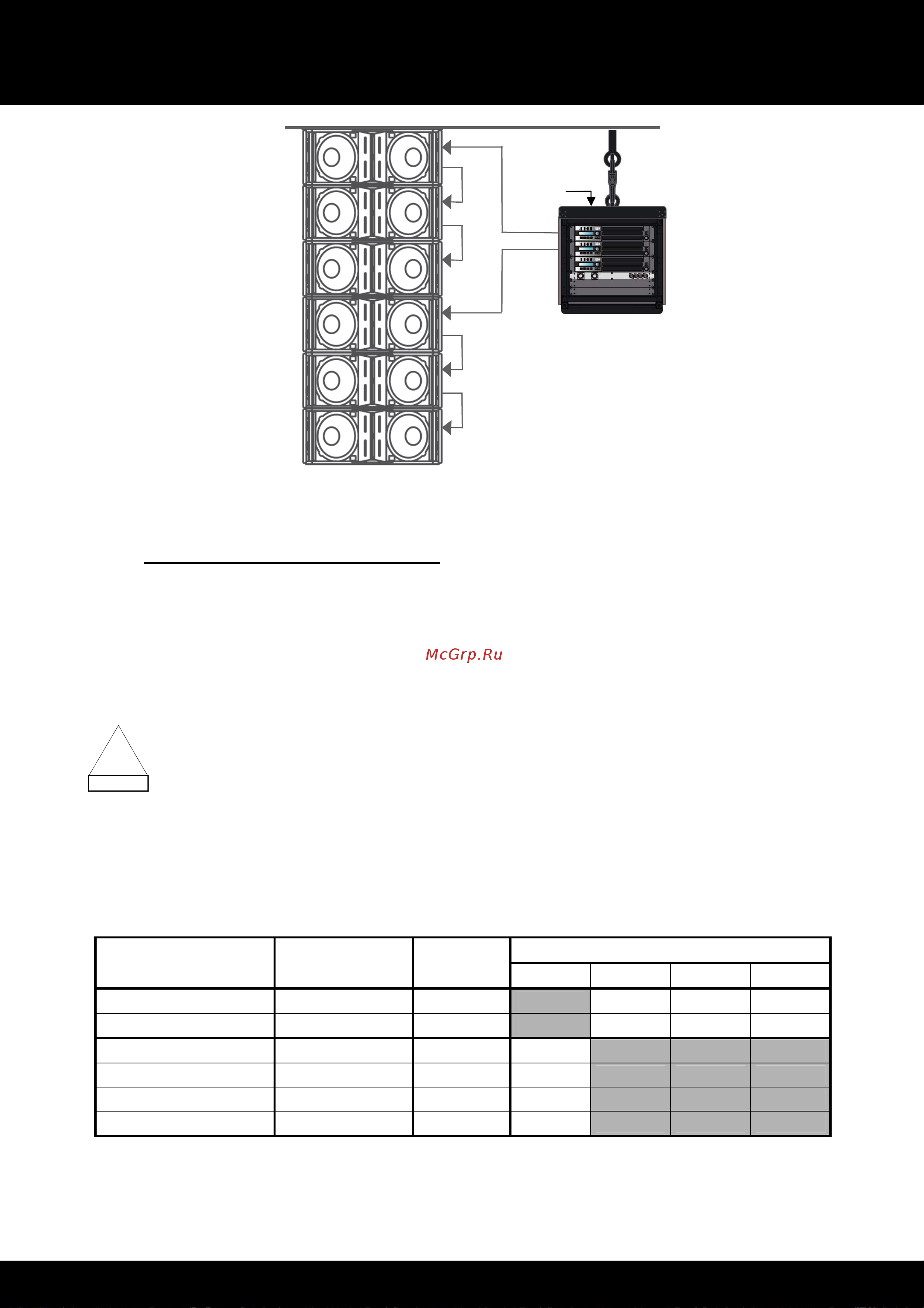

Figure 8: A 6-KUDO
®
vertical line source array connected to two LA8 controllers
7.2.3 [KUDO
_25] and [KUDO
_40] presets
The [KUDO50_25], [KUDO80_25], and [KUDO110_25] presets feature a 25 Hz high-pass filter resulting in a low
frequency limit of 35 Hz.
The [KUDO50_40], [KUDO80_40], and [KUDO110_40] presets feature a 40 Hz high-pass filter resulting in a low
frequency limit of 40 Hz.
The [KUDO50_], [KUDO80_], and [KUDO110_] presets are specifically equalized to optimize the frequency
response of the KUDO
®
system whether the K-LOUVER
®
directivity setting is respectively 50°, 80° or 110°.
Always ensure that the K-LOUVER
®
panels are set in accordance with the selected preset.
Activate the LOAD PRESET menu from the LA8 amplified controller front panel and then select the desired preset.
Refer to the ‘‘LA8’’ user manual for additional instructions. The presets are also accessible using the LA NETWORK
MANAGER software (refer to the ‘‘LA NETWORK MANAGER’’ user manual). The accessible parameters in ‘‘FULL
RANGE’’ mode are shown in the following chart:
Table 2: Accessible parameters in ‘‘FULL RANGE’’ mode
Accessible (O) and blocked (X) parameters
LA8 Inputs / Outputs
Elements to
connect
Preset
Assignment*
Mute Gain Delay Polarity
IN A Input Signal A IN_A X O O
O
IN B Input Signal B IN_B X O O
O
OUT 1 Left LF transducer LF_A O
X X X
OUT 2 Right LF transducer
LF_A O
X X X
OUT 3 MF section MF_A O
X X X
OUT 4 HF section HF_A O
X X X
* IN: input signal. A, B: channel A, B. LF: low frequency transducer. MF: medium frequency transducer. HF: high frequency transducer.
!
IMPORTANT
IN A
