6.2 Connecting speakers
The KUDO
®
enclosure is driven and powered by the dedicated L-ACOUSTICS
®
LA8 amplified controller. For more
details please refer to the “LA8’’ user manual also available on the L-ACOUSTICS
®
web site at www.l-acoustics.com.
The KUDO
®
enclosure is equipped with two 8-point PA-COM
®
sockets wired in parallel. The male socket allows
connection with the LA8 using the L-ACOUSTICS
®
DO10 or DO25 cable. The female socket allows connection with
another KUDO
®
enclosure in parallel using the L-ACOUSTICS
®
DO.7 cable (see Figure 2 and Figure 7).
A maximum of three KUDO
®
enclosures can be connected per LA8.
The L-ACOUSTICS
®
wiring convention is as follows:
PA-COM
®
connector labels Connection to transducers
A / B Left*-mounted LF transducer (+/-)
C / D Right*-mounted LF transducer (+/-)
E / F MF section (+/-)
G / H HF section (+/-)
* To locate the ‘‘left’’ and ‘‘right’’ sides put the enclosure horizontally with hatch on top and stay in front of the gill.

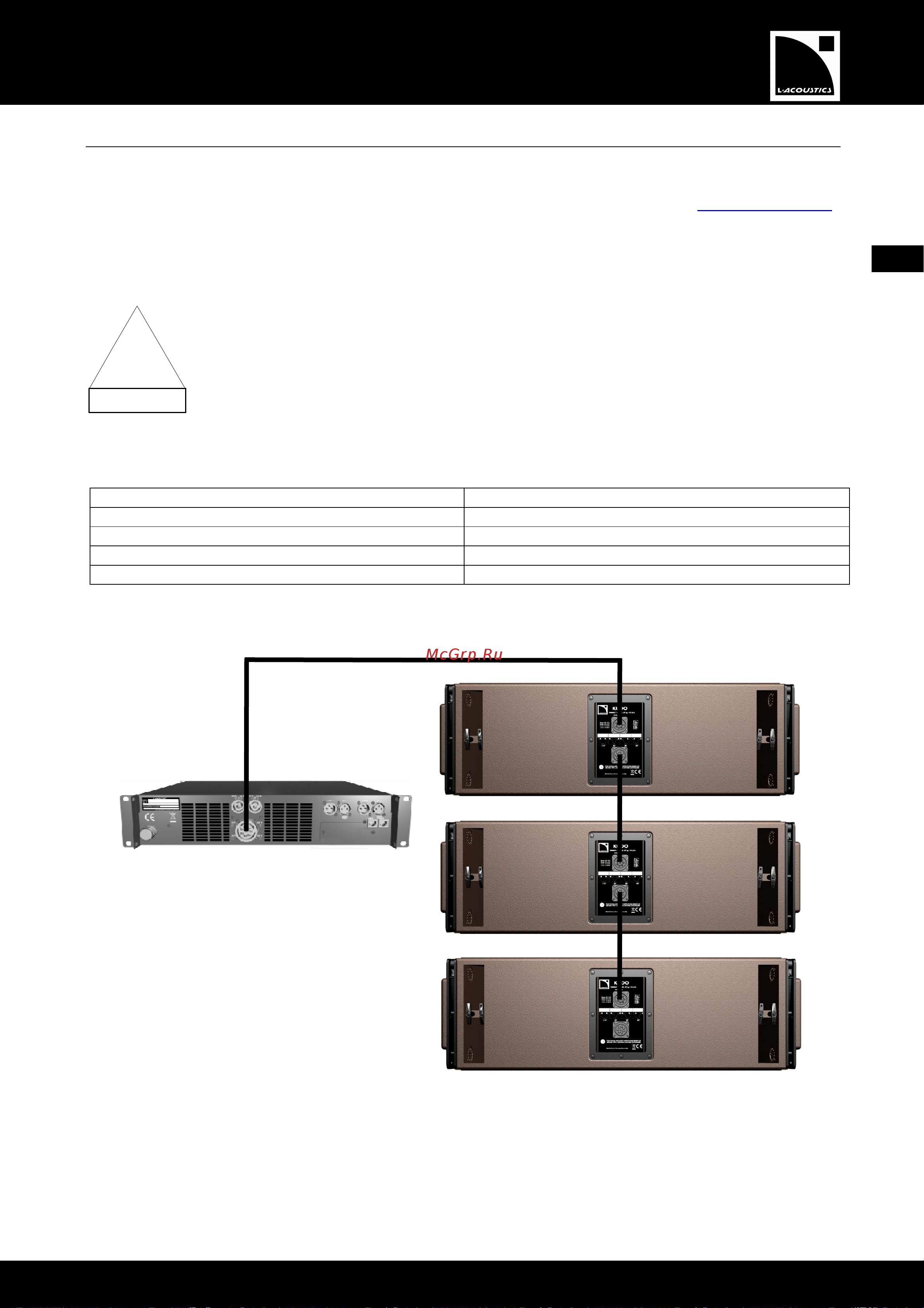

Figure 7: Connecting three KUDO
®
in parallel to an LA8 amplified controller
DO10 or DO25
DO.7
DO.7
!
IMPORTANT
