4.9.3 AES/EBU GAIN

The AES/EBU input ports include a gain module, common to all ports, which can be set from -12 dB to +12 dB by

0.1 dB steps. It must be used when the fallback mode is enabled, a digital audio source is connected to input pair AB

and an analog audio source is connected to input pair CD. The AES/EBU GAIN allows aligning the digital audio source

level to the analog level value so as to ensure seamless fallback switch from AES/EBU to analog inputs in case of fallback

mode activation (refer to section 4.9.2).

The AES/EBU GAIN must be set according to the analog audio source’s calibration (based on manufacturer’s specs or

user measurements) and the amplified controller’s analog inputs calibration (0 dBfs for an input signal of +22 dBu). The

three following examples illustrate the most common cases:

 If the analog audio source is calibrated at +18 dBu for 0 dBfs, set the AES/EBU GAIN to -4 dB.

 If the analog audio source is calibrated at +24 dBu for 0 dBfs, set the AES/EBU GAIN to +2 dB.

 If the analog audio source is calibrated at +22 dBu for 0 dBfs or if the fallback option is disabled or if a digital audio

source is connected to input pair CD, set the AES/EBU GAIN to +0 dB.

To set the AES/EBU GAIN follow these steps (see also Figure 37):

From the main menu select INPUT SETTINGS and press the OK key or the encoder wheel (or ESC to abort). 1.

Turn the encoder wheel to select AES/EBU GAIN. 2.

While holding the ESC, OK or OUT1 key, turn the encoder wheel to select an input gain value and release the 3.

key.

The setting applies in real-time when turning the encoder wheel.

Value setting resolution

 Turn the encoder wheel to obtain a 0.1-step resolution.

 Press and turn the encoder wheel to obtain a 1-step resolution.

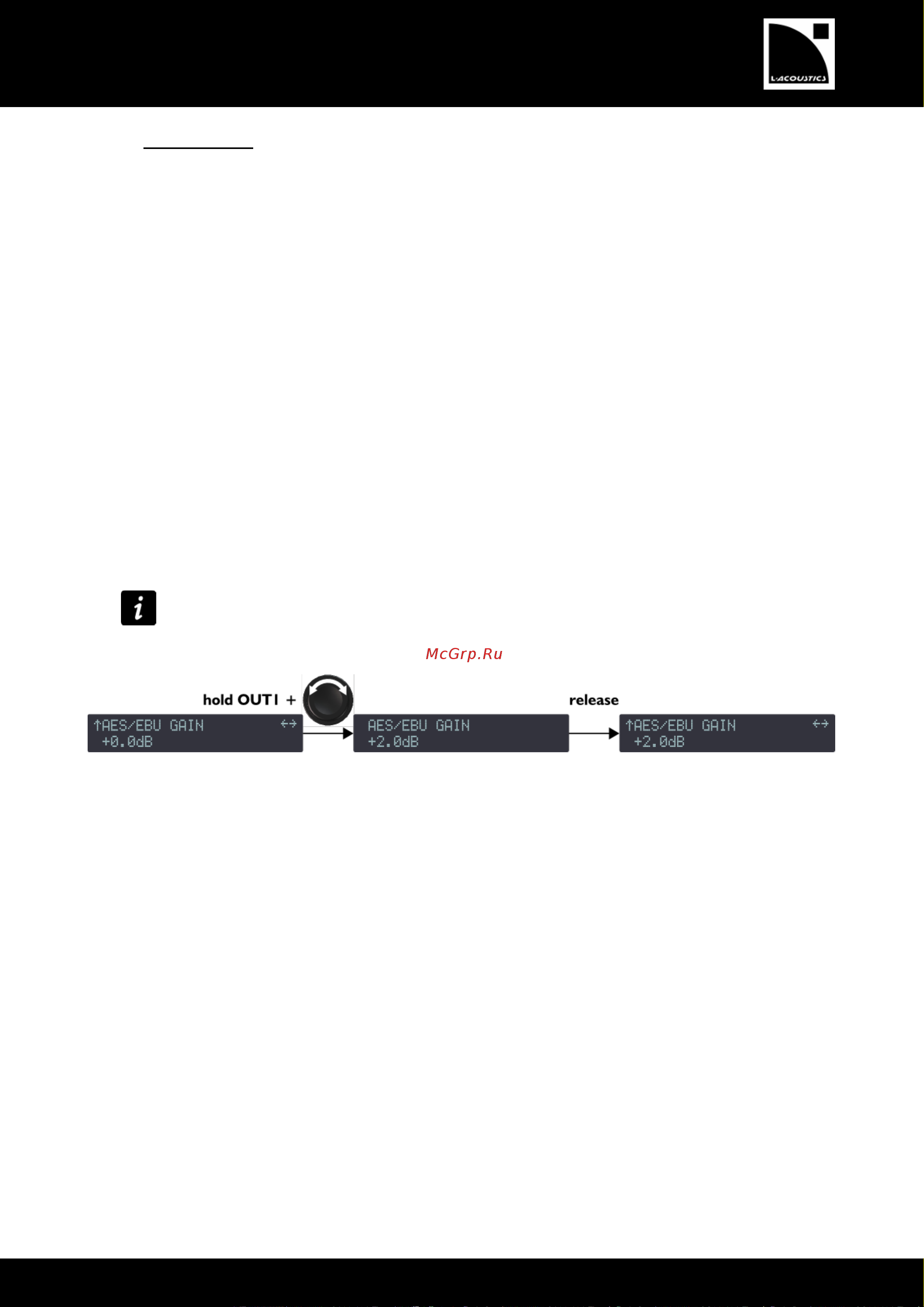

Figure 37: Setting the AES/EBU GAIN
