Behringer RX1602 EURORACK PRO [7/12] Applications
![Behringer RX1602 EURORACK PRO [7/12] Applications](/views2/2008129/page7/bg7.png)
7 EURORACK PRO RX1602 User Manual
(15)
(14)(13)

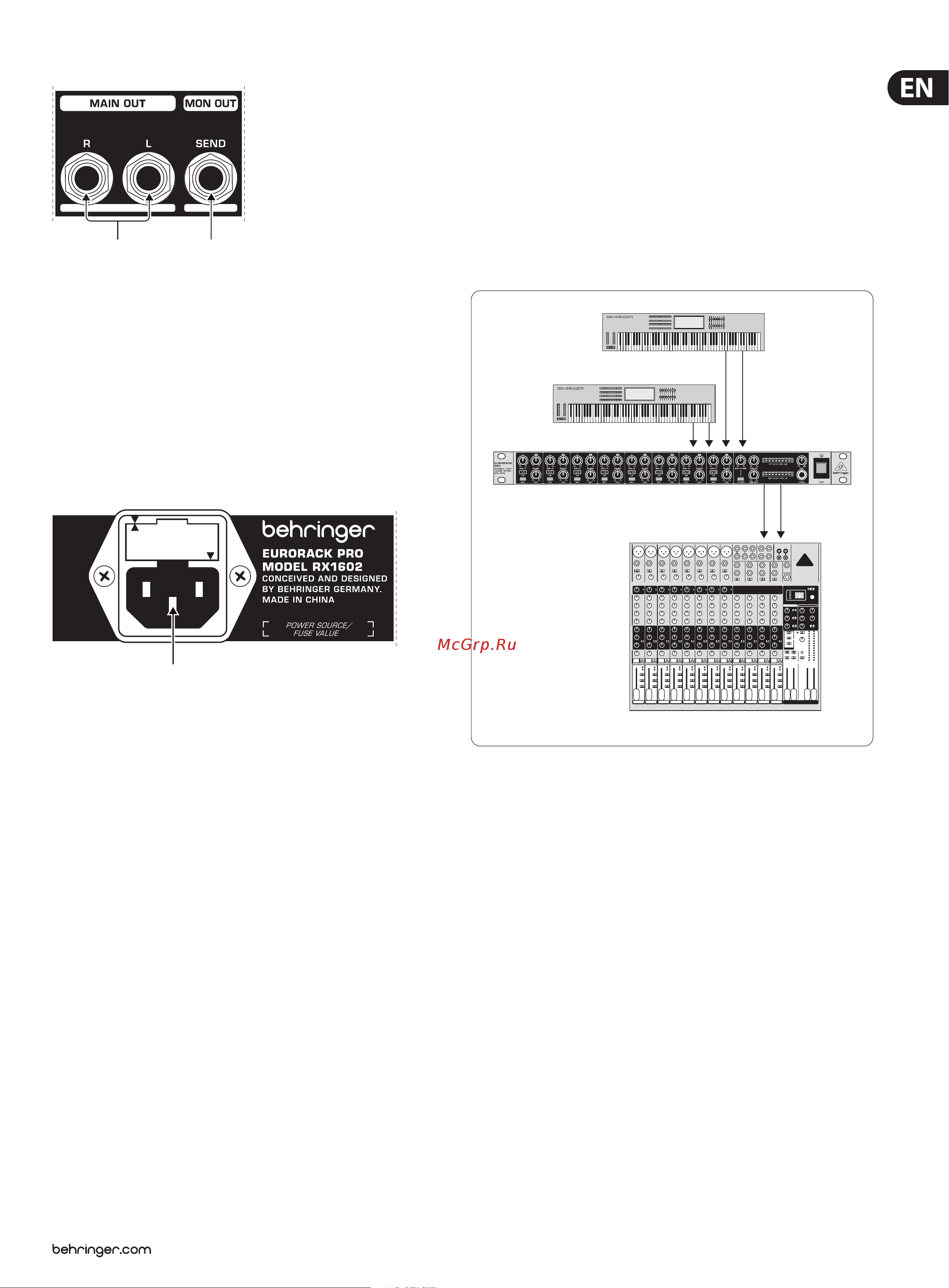

Fig. 2.4: MAIN OUT and MON OUT SEND connectors
(13) The MAIN OUT connectors come as ¼" TRS jacks. The main mix signal
(derived from all channels) is present here. You can set the output signal
level by using the MAIN LEFT and MAIN RIGHT controls (8) (reducing all the
way down to -oo , increasing up to +15 dB). The main mix signal can be used
to feed your mixing console or stereo amplier, among others.
(14) The monitor signal can be taken at the MON OUT SEND connector
(¼" TRS connector). It is just as well-suited for being used with
eectsapplications.
2.3 Mains connection
(15)
(14)(13)
Fig. 2.5: Mains connector with integrated fuse compartment
(15) The mains connection is achieved via the standard IEC connector. A matching
power cord is included.
FUSE COMPARTMENT/VOLTAGE SELECTION: Before plugging the unit into
a power socket, please make sure you have selected the correct voltage.
Faulty fuses must be replaced with fuses of appropriate rating without
exception. Some units feature a fuse compartment that can be operated
in two dierent positions, allowing alternating between 230 V and 120V.
Attention: when using the unit outside of Europe (running on 120 V),
youhave to implement a fuse with a higher rating.
SERIAL NUMBER. The serial number is located on the top of the
unit. Pleasetake a few minutes and send to us a completely lled
out warranty card within 14 days of the original date of purchase.
Otherwise, warrantyclaims may be rendered invalid. Or ll out the
warrantyinformation online at behringer.com.
3. Applications
3.1 Keyboards sub-mixer
Very often, keyborards feature a stereo design, their signals are already
pre-amplied and require no sound processing. To avoid using valuable channels
of your main mixer for a purpose other than processing mic signals, you can
instead use your RX1602 as a sub-mixer.
In this case, the output signals of keyboards, samplers or similar sound sources
are connected to the inputs (6) of the RX1602. You can route the MAIN OUTs of
your RX1602 into your main mixer via the aux returns or a stereo channel.
Keyboard
EURORACK PRO RX1602
Channel inputs
Stereo input channels/
stereo aux returns
L R
Main outputs
XENYX X2222FX USB
Fig. 3.1: Keyboard sub-mix using the RX1602
