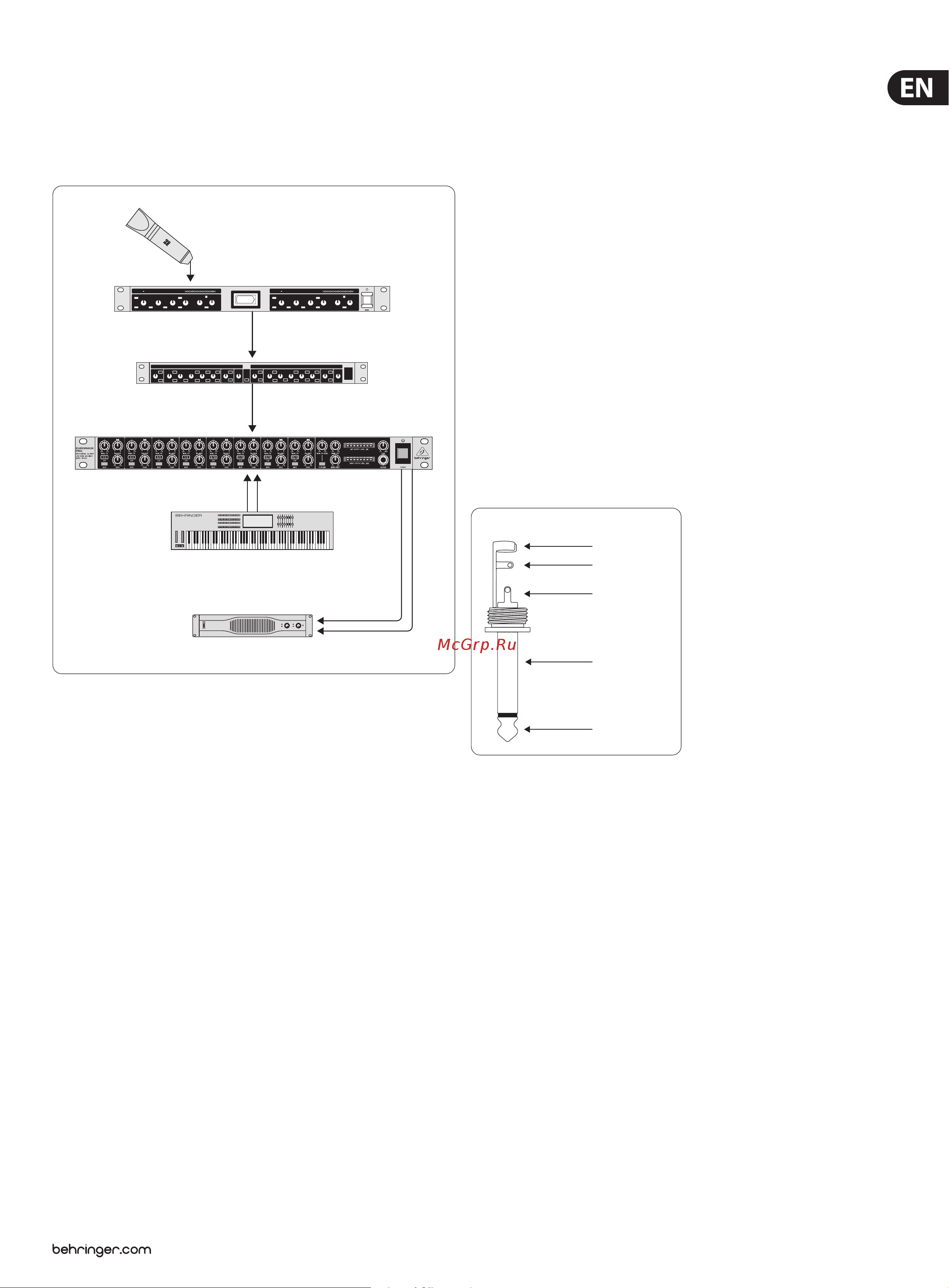

3.4 Small live setup

Compact and powerful, feature-rich equipment is optimal for musicians who

spend a lot of their time on the road. Fig. 3.4 shows an example of a compact

solution for keyboard and vocal amplication, whereby a singing guitar player or

an additional musician can easily be integrated into the mix.

B-2 PRO

ULTRAGAIN PRO MIC2200

COMPOSER PRO-XL MDX2600

EURORACK PRO RX1602

Keyboard

EUROPOWER EP2000

Main

outputs

L R

Fig. 3.4: Expandable small live setup

4. Installation

4.1 Rack mounting

The BEHRINGER EURORACK PRO RX1602 requires one height unit (1 HU) forbeing

installed into a 19" rack. Please allow at least an extra 4" of space for the

connectors on the rear panel.

Also, please make sure that sucient ventilation of the unit is provided

for, andnever put the rack mixer onto an amp or similar equipment to

avoidoverheating.

Please use M6 machine screws and nuts to install your RX1602 into a rack.

4.2 Audio connections

You will require several types of cables for the various kinds of connections

possible. The following illustrations show you how to wire dierent cables.

Always use high-quality cables.

The audio inputs of the RX1602 are electronically balanced to avoid

humproblems.

Of course, you can also connect equipment featuring un-balanced outputs.

Tothis end, use either mono jacks or connect ring and sleeve of the stereo jack

(bridge pin 1 and pin 3 when using XLR connectors).

strain relief clamp

sleeve

tip

sleeve

(ground/shield)

Unbalanced ¼" TS connector

tip

(signal)

Fig. 4.1: ¼" TS connector
