8 EURORACK PRO RX1602 User Manual

3.2 Sub-mix with samplers

Those of you who work with hardware samplers in studio environments, and who

combine many outputs of these units on a single RX1602, can save yourselves

a lot of frequent plugging in and out of cables. At the same time, you get a

practical way to adjust the signal level to various recording equipment inputs.

Last but not least, you also get an extra eects bus.

Hardware sampler

VIRTUALIZER PRO DSP2024P

Monitor output

Monitor o

utput

L R

Channel inputs

EURORACK PRO RX1602

PC with

recording

software

Sound

card

XENYX X2222USB

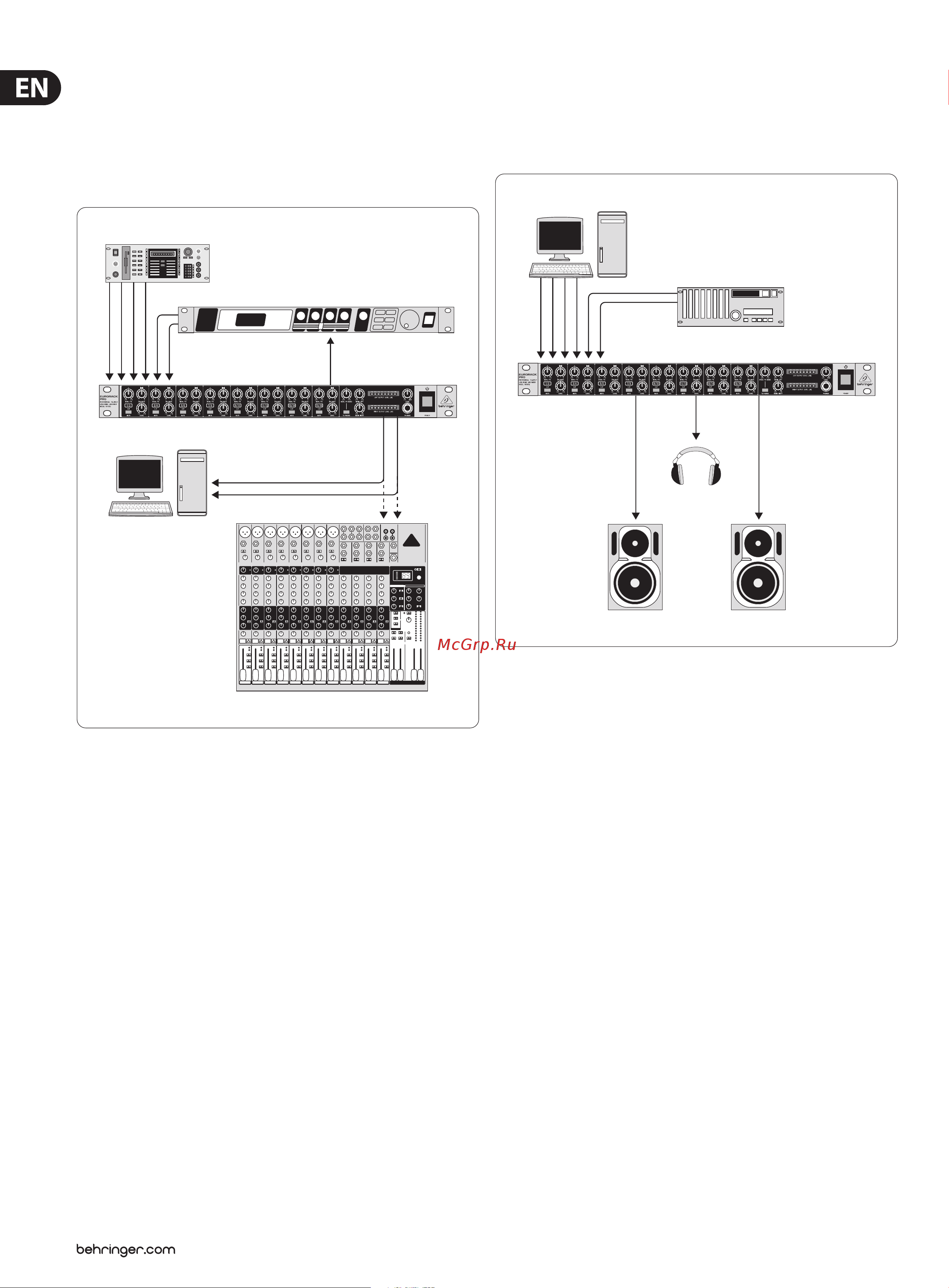

Fig. 3.2: Sampler/PC application

3.3 Monitoring multi-track recorders

Professional sound cards and multi-track recorders can replay several tracks

simultaneously. For this purpose, your RX1602 can be ideally used as a space-

saving monitor mixer.

PC with recording software

8-channel

sound card

Multi-track recorder

Main out left

Active studio monitors TRUTH B2031A

HPS3000

EURORACK PRO RX1602

Main out right

Fig. 3.3: Monitoring multi-track recorders or multi-channel sound cards
