LED Pixel 4C Installation
The LED Pixel 4C is fully operational in three different mounting posi-
tions, hanging upside-down from a ceiling, hanging sideways on
trussing, or set on a at level surface. The unit should be mounted
using a mounting clamp (not provided), afxing it to the mounting
bracket that is provided with the unit. Always ensure that the unit is
rmly xed to avoid vibration and slipping while operating. Always
ensure that the structure to which you are attaching the unit is secure
and is able to support a weight of 10 times the unit’s weight. Also,
always use a safety cable that can hold 12 times the weight of the
unit when installing the xture.
The equipment must be installed by a professional, and it must be
installed in a place where it is out of the reach of people’s grasp.
ADJ Products, LLC - www.adj.com - LED Pixel 4C User Manual Page 21 ADJ Products, LLC - www.adj.com - LED Pixel 4C User Manual Page 22
LED Pixel 4C Trouble Shooting
LED Pixel 4C Cleaning
Listed below are a few common problems the user may encounter,
with solutions.
Unit not responding to DMX:
1. Check that the DMX cables are connected properly and are
wired correctly (pin 3 is “hot”; on some other DMX devices
pin 2 may be ‘hot’). Also, check that all cables are connected
to the right connectors; it does matter which way the inputs
and outputs are connected.
Unit does not respond to sound:
1. Quiet or high pitched sounds will not activate the unit.
2. Make sure that Sound Active mode is activated.
Due to fog residue, smoke, and dust cleaning the internal and exter-
nal optical lenses must be carried out periodically to optimize light
output.
1. Use normal glass cleaner and a soft cloth to wipe down the
outside casing.
2. Clean the external optics with glass cleaner and a soft cloth
every 20 days.
3. Always be sure to dry all parts completely before plugging
the unit back in.
Cleaning frequency depends on the environment in which the fixture
operates (i.e. smoke, fog residue, dust, dew).
LED Pixel 4C Fuse Replacement
Disconnect the unit from its power source. Remove the power cord
from the unit. Once the cord has been removed, you will find that the
fuse holder is located inside the power socket. Insert a flat-head screw
driver into the power socket and gently pry out the fuse holder. Remove
the bad fuse and replace with a new one. The fuse holder also has a
holder for a spare fuse.

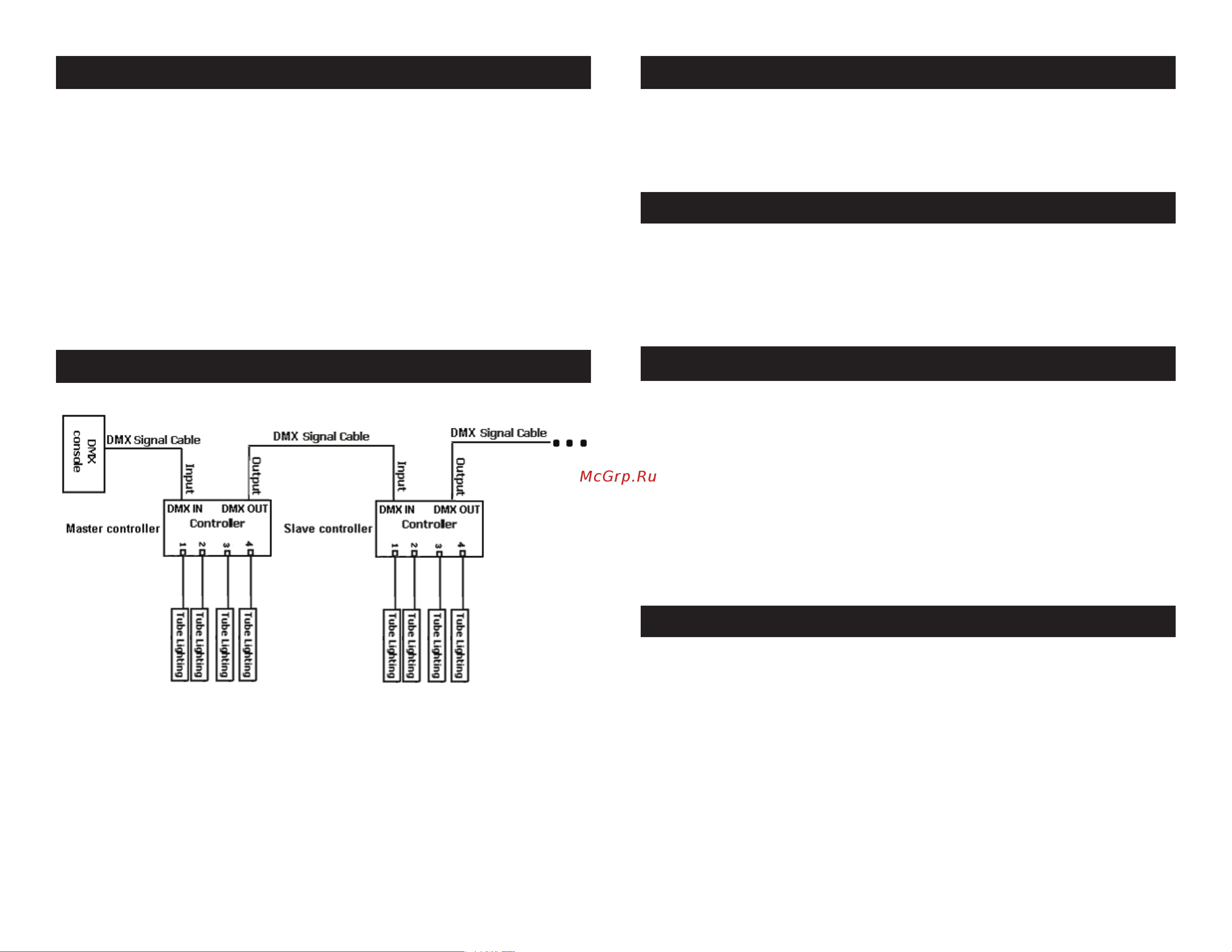

LED Pixel 4C Connection & Linking
With this feature you can connect the controllers to one another
using the IEC input and output sockets. The quantity that can be
connected is 8 controllers maximum. After 8 controllers you will
need to use a new power outlet. They must be the same control-
lers. DO NOT mix controllers.
LED Pixel 4C Power Cord Daisy Chain
