Inno Color Beam Z19 Safety Precautions
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required volt-
age for your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken. Do not attempt to remove or break o the ground
prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out`
doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by
t he manufacturer. See page 22 for cleaning details.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (inclu-
d ing amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a
marked change in performance.

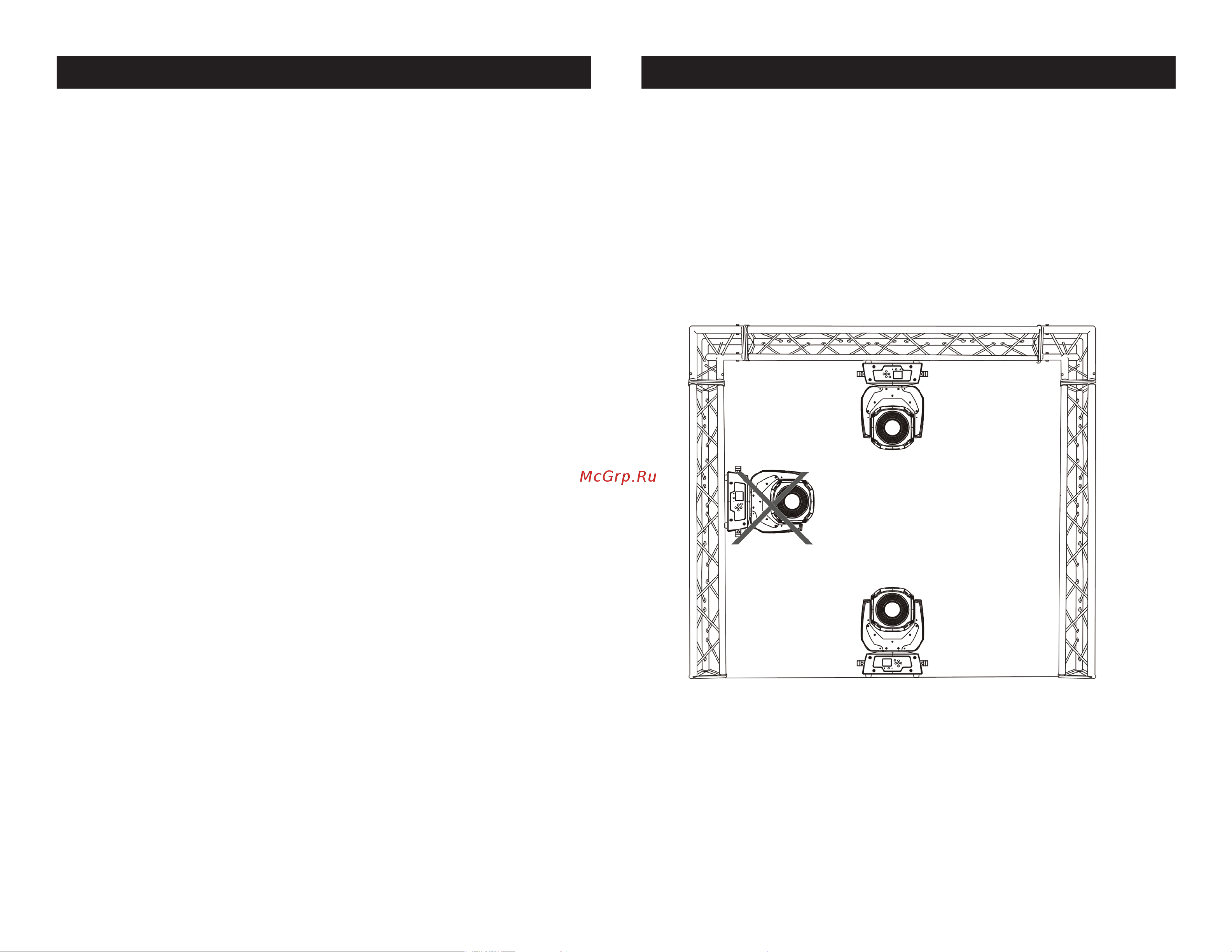

The Inno Color Beam Z19 is fully operational in two dierent mount-
ing positions, hanging upside-down from a ceiling or set on a at level
surface. To avoid internal damage to the unit, never mount the unit on
its side as illustrated above. Be sure this xture is kept at least 0.5m
away from any ammable materials (decoration etc.). Always use
and install the supplied safety cable as a safety measure to prevent
accidental damage and/or injury in the event the clamp fails (see next
page). Never use the carrying handles for secondary attachment.
When installing the unit, the trussing or area of installation must be
able to hold 10 times the weight without any deformation. When
installing the unit must be secured with a secondary safety attach-
ment, e.g. and appropriate safety cable. Never stand directly below
the unit when mounting, removing, or servicing the unit.
Overhead mounting requires extensive experience, including calculat-
ing working load limits, installation material being used, and perodic
safety inspection of all installation material and unit. If you lack these
qualications, do not attempt the installation yourself.
These installaiton should be checked by a skilled person once a year.
Inno Color Beam Z19 Installation
Содержание
- Inno color beam z19 1
- User instructions 1
- Caution 2
- Customer support 2
- Introduction 2
- Unpacking 2
- Warning 2
- Data cable dmx cable requirements for dmx operation 4
- Dmx 512 4
- Dmx linking 4
- Notice the suitable enviromental temperature for this light ing fixture is between 25 c to 45 c do not place this lighting fixture in an enviroment where the temperatures are under or above the temperatures stated above this will allow the fixture to run at its best and help prolong the fixture life 4
- Power supply 4
- Screw one clamp via a m12 screw and nut onto the omega holder insert the quick lock fasteners of the omega holder into the respective holes on the bottom of the inno color beam z19 tighten the quick lock fasteners fully clockwise pull the safety cable through the eyehole hook on the bottom of the base and over the trussing system or a safe fixation spot insert the end in the carabine and tighten the safety screw 4
- Adj products llc www adj com inno color beam z19 user manual page 8 adj products llc www adj com inno color beam z19 user manual page 9 5
- Be sure to follow figures two and three when making your own cables do not use the ground lug on the xlr connector do not con nect the cable s shield conductor to the ground lug or allow the shield conductor to come in contact with the xlr s outer casing grounding the shield could cause a short circuit and erratic behavior 5
- Figure 2 5
- Figure 3 5
- Figure 4 5
- Inno color beam z19 set up 5
- Inno color beam z19 system menu 5
- Notice 5
- Pin xlr dmx connectors 5
- Some manufactures use 5 pin xlr connectors for data transmission in place of 3 pin 5 pin xlr fixtures may be implemented in a 3 pin xlr dmx line when inserting standard 5 pin xlr connectors in to a 3 pin line a cable adaptor must be used these adaptors are readily available at most electric stores the chart below details a proper cable conversion 5
- Special note line termination 5
- When longer runs of cable are used you may need to use a terminator on the last unit to avoid erratic behavior a terminator is a 90 120 ohm 1 4 watt resistor which is con nected between pins 2 and 3 of a male xlr connector data and data this unit is inserted in the female xlr connector of the last unit in your daisy chain to terminate the line using a cable terminator adj part number z dmx t will decrease the possibilities of erratic behavior 5
- Xlr pin configuration 5
- Blackou 6
- Dimmer curv 6
- Dmx addres 6
- Show mod 6
- Slave mode 6
- Sound sens 6
- Sound stat 6
- Back light auto of 7
- Function dela 7
- Manual tes 7
- Pan invers 7
- Tilt invers 7
- White balanc 7
- Auto tes 8
- Firmware versio 8
- Fixture use tim 8
- Pro defaul 8
- Channel value function 9
- Master slave configuration 9
- Pan 0 255 0 540 2 0 255 pan fine 3 tilt 0 255 0 220 4 0 255 tilt fine 5 red 0 255 0 100 6 green 0 255 0 100 7 blue 0 255 0 100 8 white 0 255 0 100 9 color macros 0 off 1 4 macro 1 5 8 macro 2 9 12 macro 3 13 16 macro 4 17 20 macro 5 21 24 macro 6 25 28 macro 7 29 32 macro 8 33 36 macro 9 37 40 macro 10 41 44 macro 11 45 48 macro 12 49 52 macro 13 53 56 macro 14 57 60 macro 15 61 64 macro 16 65 68 macro 17 69 72 macro 18 9
- Universal dmx control 9
- Channel value function 11
- Inno color beam z19 14 channel mode 11
- Inno color beam z19 dimmer curve chart 11
- Inno color beam z19 photometric chart 11
- Shutter strobing 225 229 open 230 244 burst 245 255 open 11 master dimmer 0 255 0 100 12 zoom 0 225 wide narrow 13 pan tilt movement speed 0 225 max min movement sped 14 reset 0 9 no function 10 14 reset all 15 255 no function 11
- Adj products llc www adj com inno color beam z19 user manual page 22 12
- Adj products llc www adj com inno color beam z19 user manual page 23 12
- Always be sure to dry all parts completely before plugging the unit back in 12
- And outputs are connected and outputs are connected 12
- Check that the dmx cables are connected properly and are wired correctly pin 3 is hot on some other dmx devices 12
- Clean the internal optics with glass cleaner and a soft cloth every 30 60 days 12
- Disconnect the unit from its power source locate the fuse holder on the rear panel of the unit using a phillips head screw driver unscrew the fuse holder remove the bad fuse and replace with a new one screw the fuse holder back into the unit containing the new fuse 12
- Due to fog residue smoke and dust cleaning the internal and exter nal optical lenses and mirror should be carried out periodically to optimize light output cleaning frequency depends on the environ ment in which the fixture operates i e smoke fog residue dust dew in heavy club use we recommend cleaning on a monthly basis periodic cleaning will ensure longevity and crisp output 1 use normal glass cleaner and a soft cloth to wipe down the out side casing 12
- Inno color beam z19 cleaning 12
- Inno color beam z19 fuse replacement 12
- Inno color beam z19 troubleshooting 12
- Inno color beam z19 warranty 12
- Listed below are a few common problems the user may encounter with solutions 12
- Pin 2 may be hot also check that all cables are connected pin 2 may be hot also check that all cables are connected 12
- Quiet or high pitched sounds will not activate the unit 2 check the sound sensitivity level 12
- To the right connectors it does matter which way the inputs to the right connectors it does matter which way the inputs 12
- Unit does not respond to sound 12
- Unit not responding to dmx 12
- Use a brush to wipe down the cooling vents and fan grill 3 clean the external optics with glass cleaner and a soft cloth every 20 days 12
- Inno color beam z19 notes 13
- Auto sensing voltage 14
