Page 14 of 16
Technical Specifications
STRIKE P38 User Manual Rev. 1

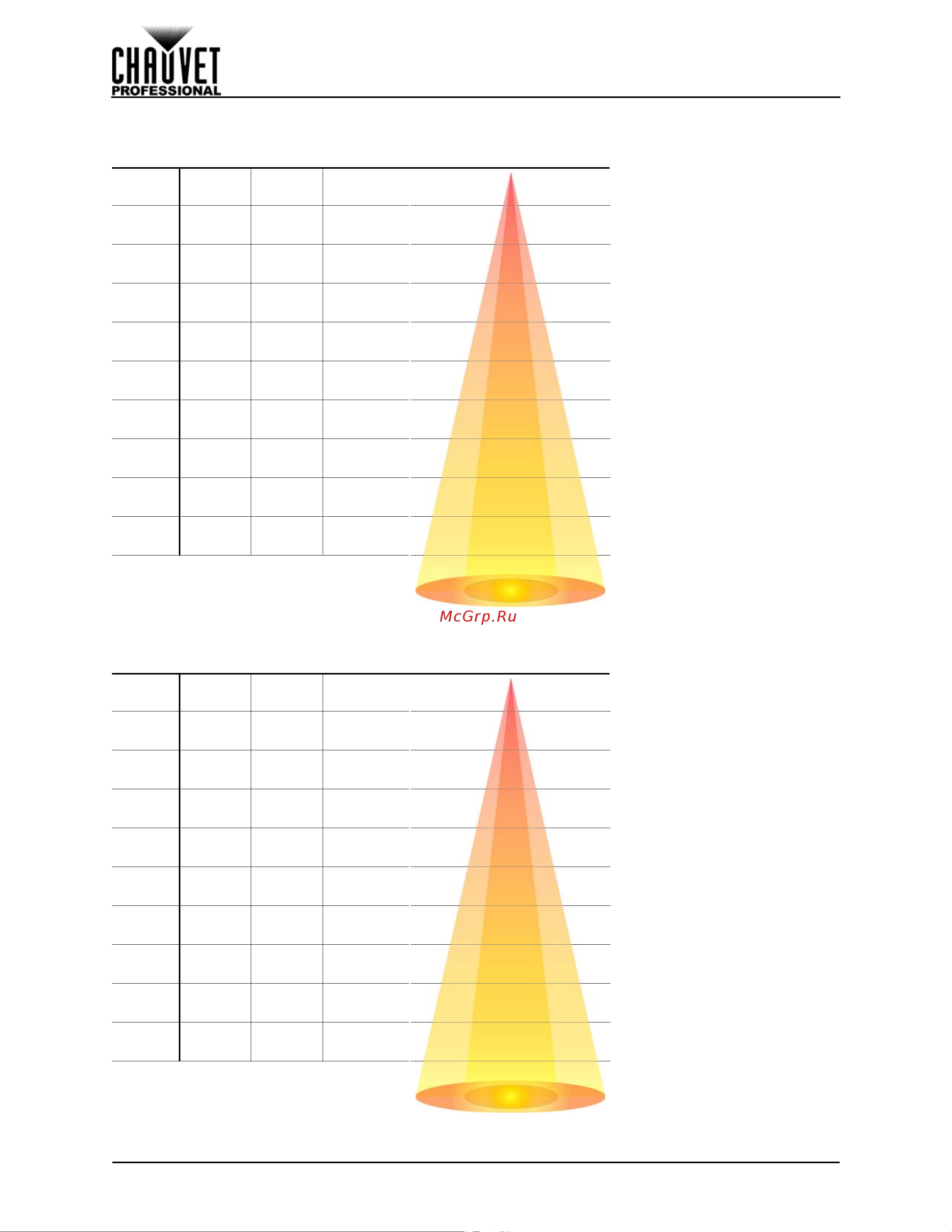

Photometrics Charts
STRIKE P38 (Imperial)
Distance
Beam
Diameter
Field
Diameter Footcandle
15 ft 7.2 ft 14.31 ft 36
20 ft 9.60 ft 19.08 ft 20
30 ft 14.40 ft 28.62 ft 9
40 ft 19.21 ft 38.16 ft 5
50 ft 24.01 ft 47.70 ft 3
75 ft 36.01 ft 71.55 ft 1
100 ft 48.02 ft 95.40 ft 1
125 ft 60.02 ft 119.24 ft 1
150 ft 72.02 ft 143.09 ft 0
STRIKE P38 (Metric)
Distance
Beam
Diameter
Field
Diameter Lux
1 m 0.48 m 0.95 m 8,125
2 m 0.96 m 1.91 m 2,031
5 m 2.40 m 4.77 m 325
8 m 3.84 m 7.63 m 127
10 m 4.80 m 9.54 m 81
15 m 7.20 m 14.31 m 36
20 m 9.60 m 19.08 m 20
25 m 12.00 m 23.85 m 13
30 m 14.40 m 28.62 m 9
Beam FieldField
Beam FieldField
