Si Option Slot and Option Card User Guide V2.12 0813

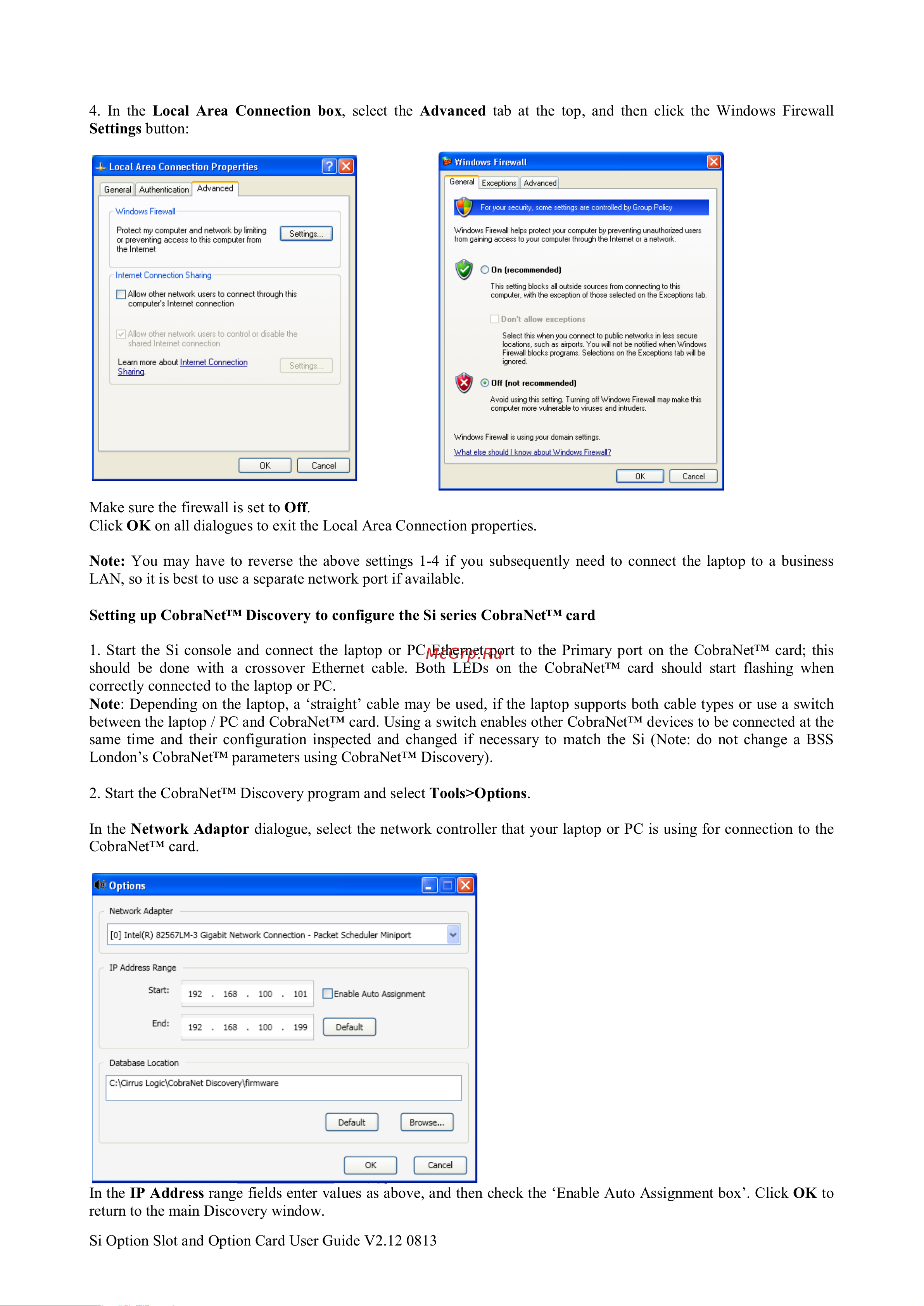

4. In the Local Area Connection box, select the Advanced tab at the top, and then click the Windows Firewall

Settings button:

Make sure the firewall is set to Off.

Click OK on all dialogues to exit the Local Area Connection properties.

Note: You may have to reverse the above settings 1-4 if you subsequently need to connect the laptop to a business

LAN, so it is best to use a separate network port if available.

Setting up CobraNet™ Discovery to configure the Si series CobraNet™ card

1. Start the Si console and connect the laptop or PC Ethernet port to the Primary port on the CobraNet™ card; this

should be done with a crossover Ethernet cable. Both LEDs on the CobraNet™ card should start flashing when

correctly connected to the laptop or PC.

Note: Depending on the laptop, a ‘straight’ cable may be used, if the laptop supports both cable types or use a switch

between the laptop / PC and CobraNet™ card. Using a switch enables other CobraNet™ devices to be connected at the

same time and their configuration inspected and changed if necessary to match the Si (Note: do not change a BSS

London’s CobraNet™ parameters using CobraNet™ Discovery).

2. Start the CobraNet™ Discovery program and select Tools>Options.

In the Network Adaptor dialogue, select the network controller that your laptop or PC is using for connection to the

CobraNet™ card.

In the IP Address range fields enter values as above, and then check the ‘Enable Auto Assignment box’. Click OK to

return to the main Discovery window.
