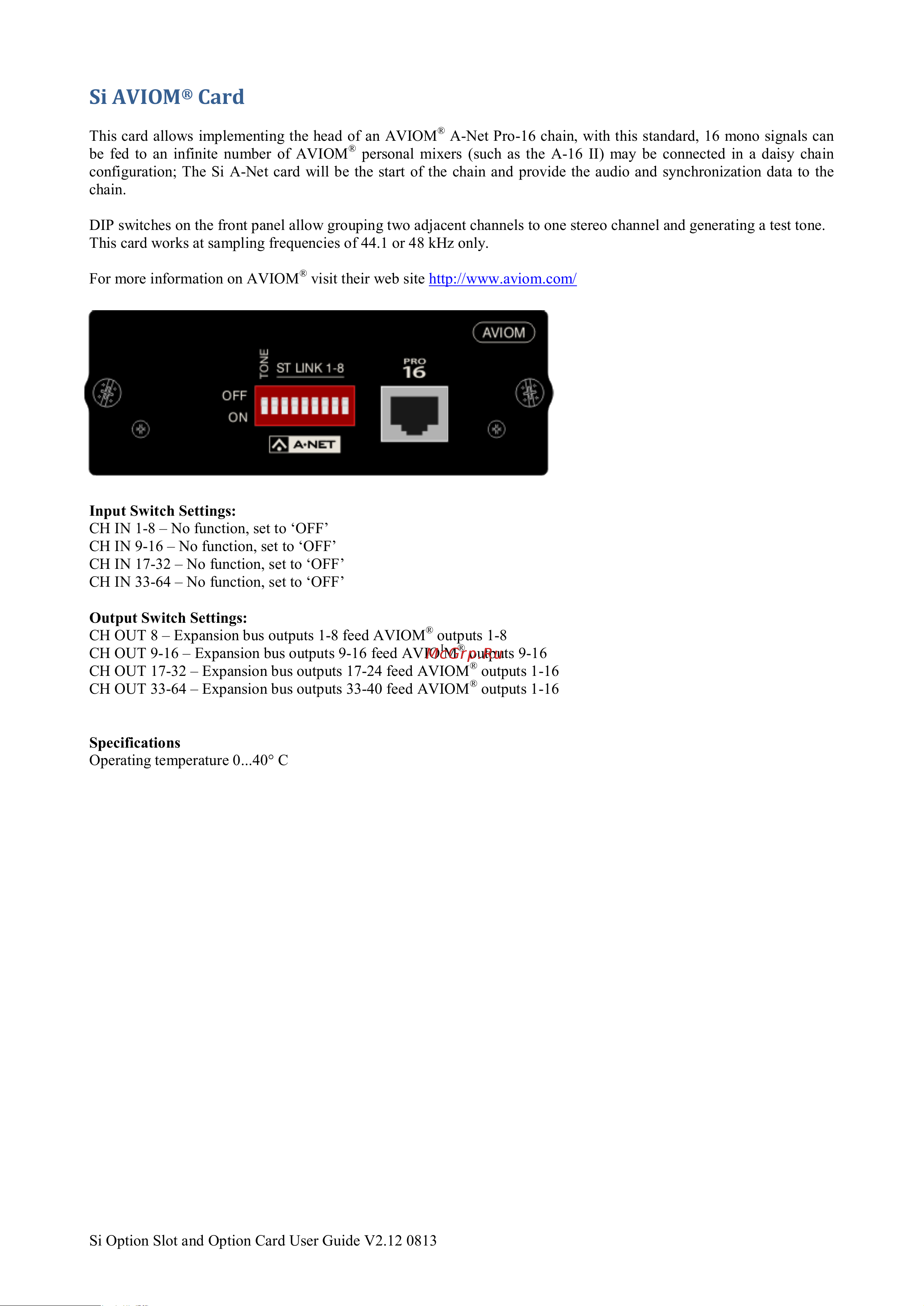

Si AVIOM

Card

This card allows implementing the head of an AVIOM

A-Net Pro-16 chain, with this standard, 16 mono signals can

be fed to an infinite number of AVIOM

personal mixers (such as the A-16 II) may be connected in a daisy chain

configuration; The Si A-Net card will be the start of the chain and provide the audio and synchronization data to the

chain.

DIP switches on the front panel allow grouping two adjacent channels to one stereo channel and generating a test tone.

This card works at sampling frequencies of 44.1 or 48 kHz only.

For more information on AVIOM

visit their web site http://www.aviom.com/

Input Switch Settings:

CH IN 1-8 – No function, set to ‘OFF’

CH IN 9-16 – No function, set to ‘OFF’

CH IN 17-32 – No function, set to ‘OFF’

CH IN 33-64 – No function, set to ‘OFF’

Output Switch Settings:

CH OUT 8 – Expansion bus outputs 1-8 feed AVIOM

outputs 1-8

CH OUT 9-16 – Expansion bus outputs 9-16 feed AVIO

outputs 9-16

CH OUT 17-32 – Expansion bus outputs 17-24 feed AVIOM

outputs 1-16

CH OUT 33-64 – Expansion bus outputs 33-40 feed AVIOM

outputs 1-16

Specifications

Operating temperature 0...40° C
