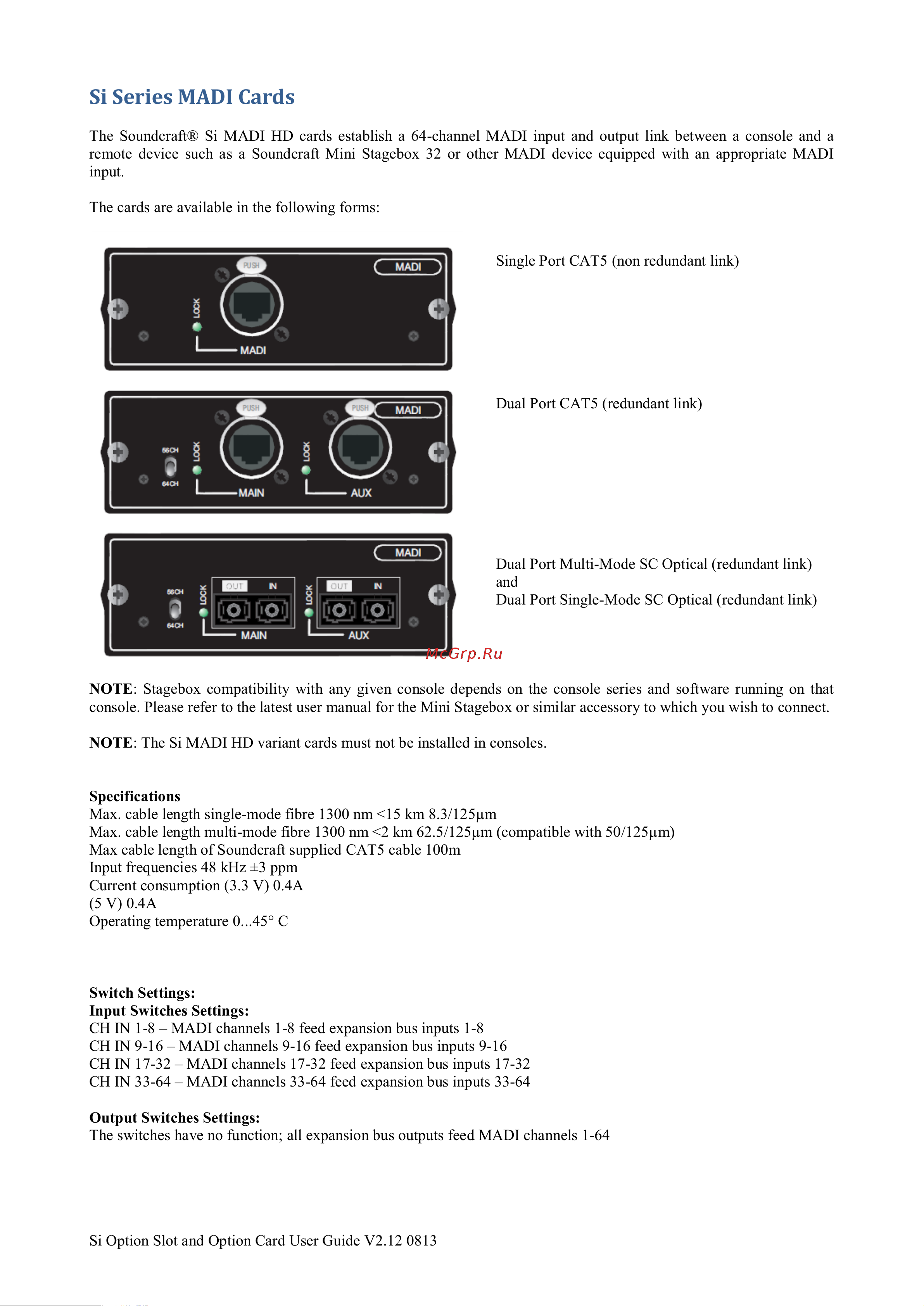

Si Series MADI Cards

The Soundcraft® Si MADI HD cards establish a 64-channel MADI input and output link between a console and a

remote device such as a Soundcraft Mini Stagebox 32 or other MADI device equipped with an appropriate MADI

input.

The cards are available in the following forms:

Single Port CAT5 (non redundant link)

Dual Port CAT5 (redundant link)

Dual Port Multi-Mode SC Optical (redundant link)

and

Dual Port Single-Mode SC Optical (redundant link)

NOTE: Stagebox compatibility with any given console depends on the console series and software running on that

console. Please refer to the latest user manual for the Mini Stagebox or similar accessory to which you wish to connect.

NOTE: The Si MADI HD variant cards must not be installed in consoles.

Specifications

Max. cable length single-mode fibre 1300 nm <15 km 8.3/125µm

Max. cable length multi-mode fibre 1300 nm <2 km 62.5/125µm (compatible with 50/125µm)

Max cable length of Soundcraft supplied CAT5 cable 100m

Input frequencies 48 kHz ±3 ppm

Current consumption (3.3 V) 0.4A

(5 V) 0.4A

Operating temperature 0...45° C

Switch Settings:

Input Switches Settings:

CH IN 1-8 – MADI channels 1-8 feed expansion bus inputs 1-8

CH IN 9-16 – MADI channels 9-16 feed expansion bus inputs 9-16

CH IN 17-32 – MADI channels 17-32 feed expansion bus inputs 17-32

CH IN 33-64 – MADI channels 33-64 feed expansion bus inputs 33-64

Output Switches Settings:

The switches have no function; all expansion bus outputs feed MADI channels 1-64
