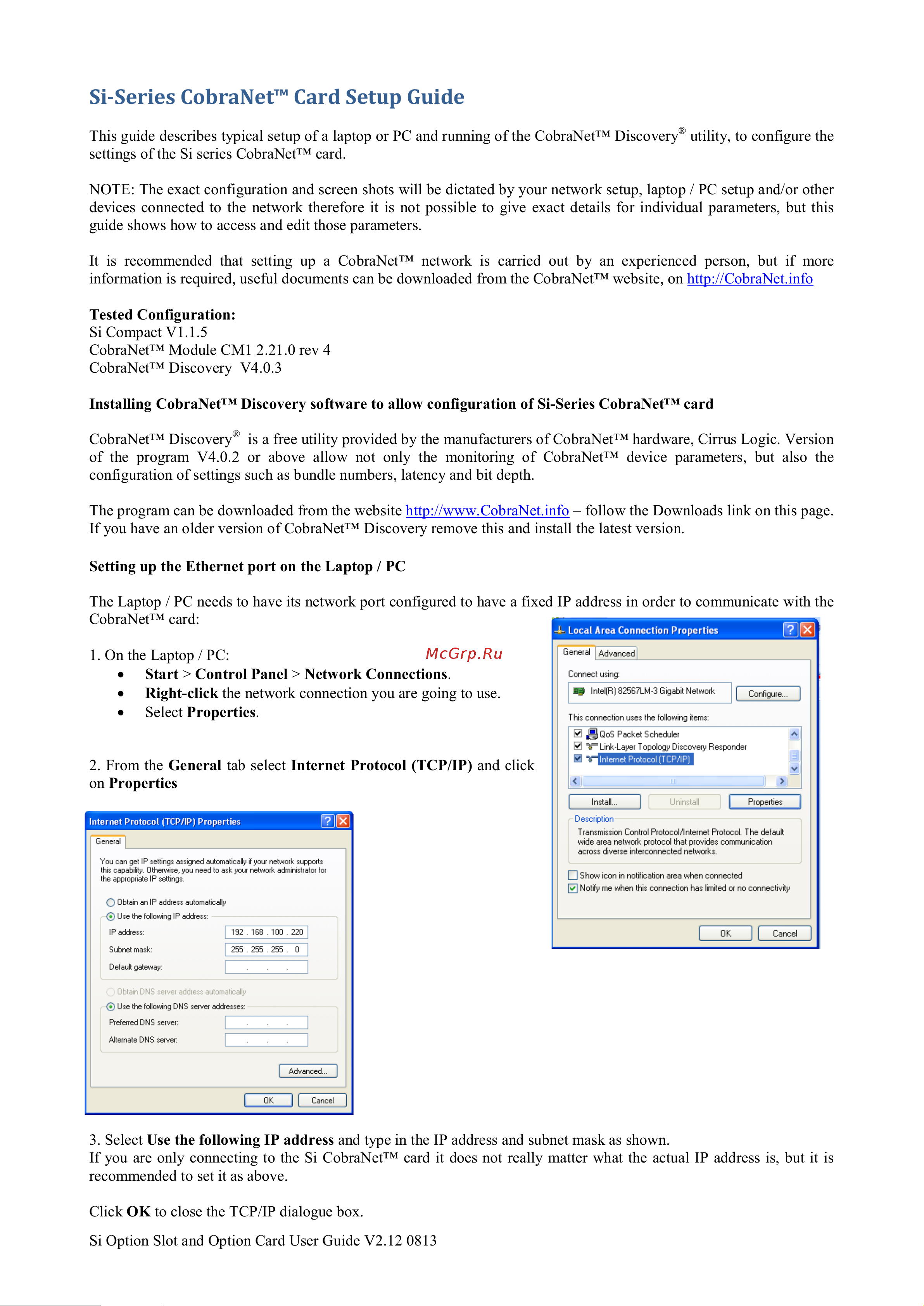

Si-Series CobraNet™ Card Setup Guide
This guide describes typical setup of a laptop or PC and running of the CobraNet™ Discovery
®
utility, to configure the
settings of the Si series CobraNet™ card.
NOTE: The exact configuration and screen shots will be dictated by your network setup, laptop / PC setup and/or other
devices connected to the network therefore it is not possible to give exact details for individual parameters, but this
guide shows how to access and edit those parameters.
It is recommended that setting up a CobraNet™ network is carried out by an experienced person, but if more
information is required, useful documents can be downloaded from the CobraNet™ website, on
http://CobraNet.info
Tested Configuration:
Si Compact V1.1.5
CobraNet™ Module CM1 2.21.0 rev 4
CobraNet™ Discovery V4.0.3
Installing CobraNet™ Discovery software to allow configuration of Si-Series CobraNet™ card
CobraNet™ Discovery
®
is a free utility provided by the manufacturers of CobraNet™ hardware, Cirrus Logic. Version
of the program V4.0.2 or above allow not only the monitoring of CobraNet™ device parameters, but also the
configuration of settings such as bundle numbers, latency and bit depth.
The program can be downloaded from the website
http://www.CobraNet.info – follow the Downloads link on this page.
If you have an older version of CobraNet™ Discovery remove this and install the latest version.
Setting up the Ethernet port on the Laptop / PC
The Laptop / PC needs to have its network port configured to have a fixed IP address in order to communicate with the
CobraNet™ card:
1. On the Laptop / PC:
• Start > Control Panel > Network Connections.
• Right-click the network connection you are going to use.
• Select Properties.
2. From the General tab select Internet Protocol (TCP/IP) and click
on Properties
3. Select Use the following IP address and type in the IP address and subnet mask as shown.
If you are only connecting to the Si CobraNet™ card it does not really matter what the actual IP address is, but it is
recommended to set it as above.
Click OK to close the TCP/IP dialogue box.
