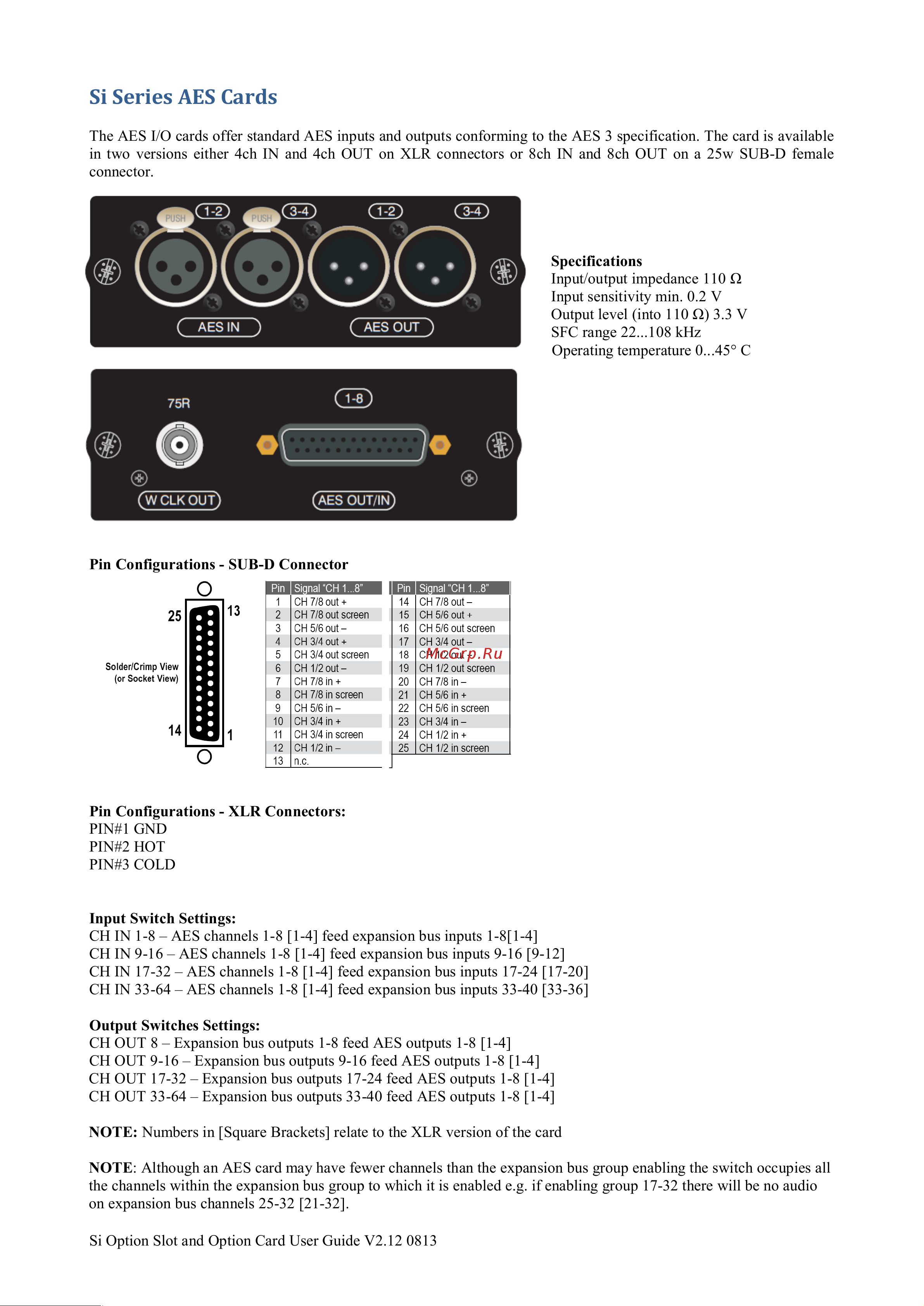

Si Series AES Cards

The AES I/O cards offer standard AES inputs and outputs conforming to the AES 3 specification. The card is available

in two versions either 4ch IN and 4ch OUT on XLR connectors or 8ch IN and 8ch OUT on a 25w SUB-D female

connector.

Specifications

Input/output impedance 110 Ω

Input sensitivity min. 0.2 V

Output level (into 110 Ω) 3.3 V

SFC range 22...108 kHz

Operating temperature 0...45° C

Pin Configurations - SUB-D Connector

Pin Configurations - XLR Connectors:

PIN#1 GND

PIN#2 HOT

PIN#3 COLD

Input Switch Settings:

CH IN 1-8 – AES channels 1-8 [1-4] feed expansion bus inputs 1-8[1-4]

CH IN 9-16 – AES channels 1-8 [1-4] feed expansion bus inputs 9-16 [9-12]

CH IN 17-32 – AES channels 1-8 [1-4] feed expansion bus inputs 17-24 [17-20]

CH IN 33-64 – AES channels 1-8 [1-4] feed expansion bus inputs 33-40 [33-36]

Output Switches Settings:

CH OUT 8 – Expansion bus outputs 1-8 feed AES outputs 1-8 [1-4]

CH OUT 9-16 – Expansion bus outputs 9-16 feed AES outputs 1-8 [1-4]

CH OUT 17-32 – Expansion bus outputs 17-24 feed AES outputs 1-8 [1-4]

CH OUT 33-64 – Expansion bus outputs 33-40 feed AES outputs 1-8 [1-4]

NOTE: Numbers in [Square Brackets] relate to the XLR version of the card

NOTE: Although an AES card may have fewer channels than the expansion bus group enabling the switch occupies all

the channels within the expansion bus group to which it is enabled e.g. if enabling group 17-32 there will be no audio

on expansion bus channels 25-32 [21-32].
