Soundcraft SiO-DANTE [17/17] Note whenever the on ramp and off ramp selections match no audio is extracted from blu link rather the output audio out from the blu link card going to the si console will match exactly the audio being inserted onto blu link from the console

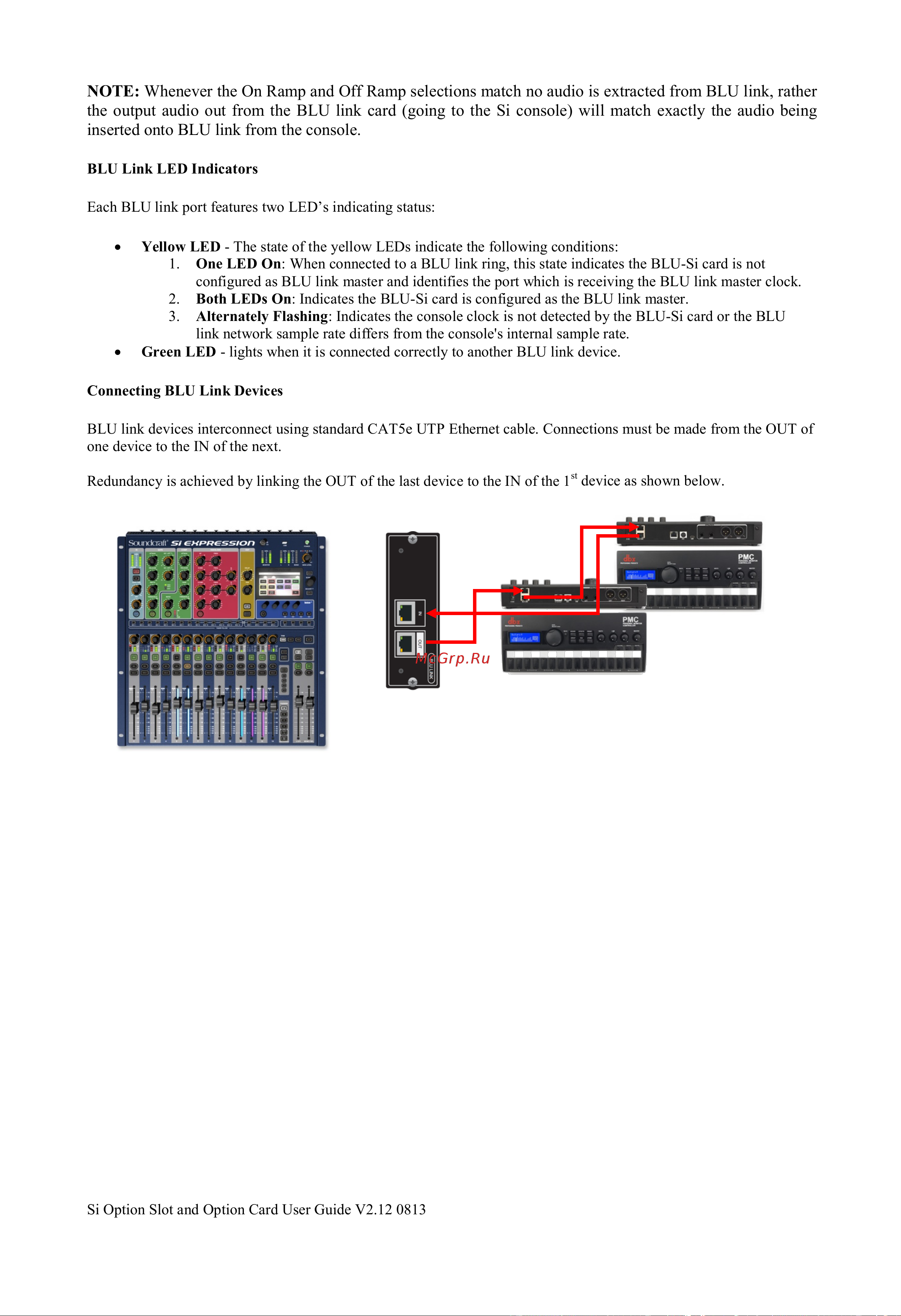

Si Option Slot and Option Card User Guide V2.12 0813

NOTE: Whenever the On Ramp and Off Ramp selections match no audio is extracted from BLU link, rather

the output audio out from the BLU link card (going to the Si console) will match exactly the audio being

inserted onto BLU link from the console.

BLU Link LED Indicators

Each BLU link port features two LED’s indicating status:

• Yellow LED - The state of the yellow LEDs indicate the following conditions:

1. One LED On: When connected to a BLU link ring, this state indicates the BLU-Si card is not

configured as BLU link master and identifies the port which is receiving the BLU link master clock.

2. Both LEDs On: Indicates the BLU-Si card is configured as the BLU link master.

3. Alternately Flashing: Indicates the console clock is not detected by the BLU-Si card or the BLU

link network sample rate differs from the console's internal sample rate.

• Green LED - lights when it is connected correctly to another BLU link device.

Connecting BLU Link Devices

BLU link devices interconnect using standard CAT5e UTP Ethernet cable. Connections must be made from the OUT of

one device to the IN of the next.

Redundancy is achieved by linking the OUT of the last device to the IN of the 1

device as shown below.
