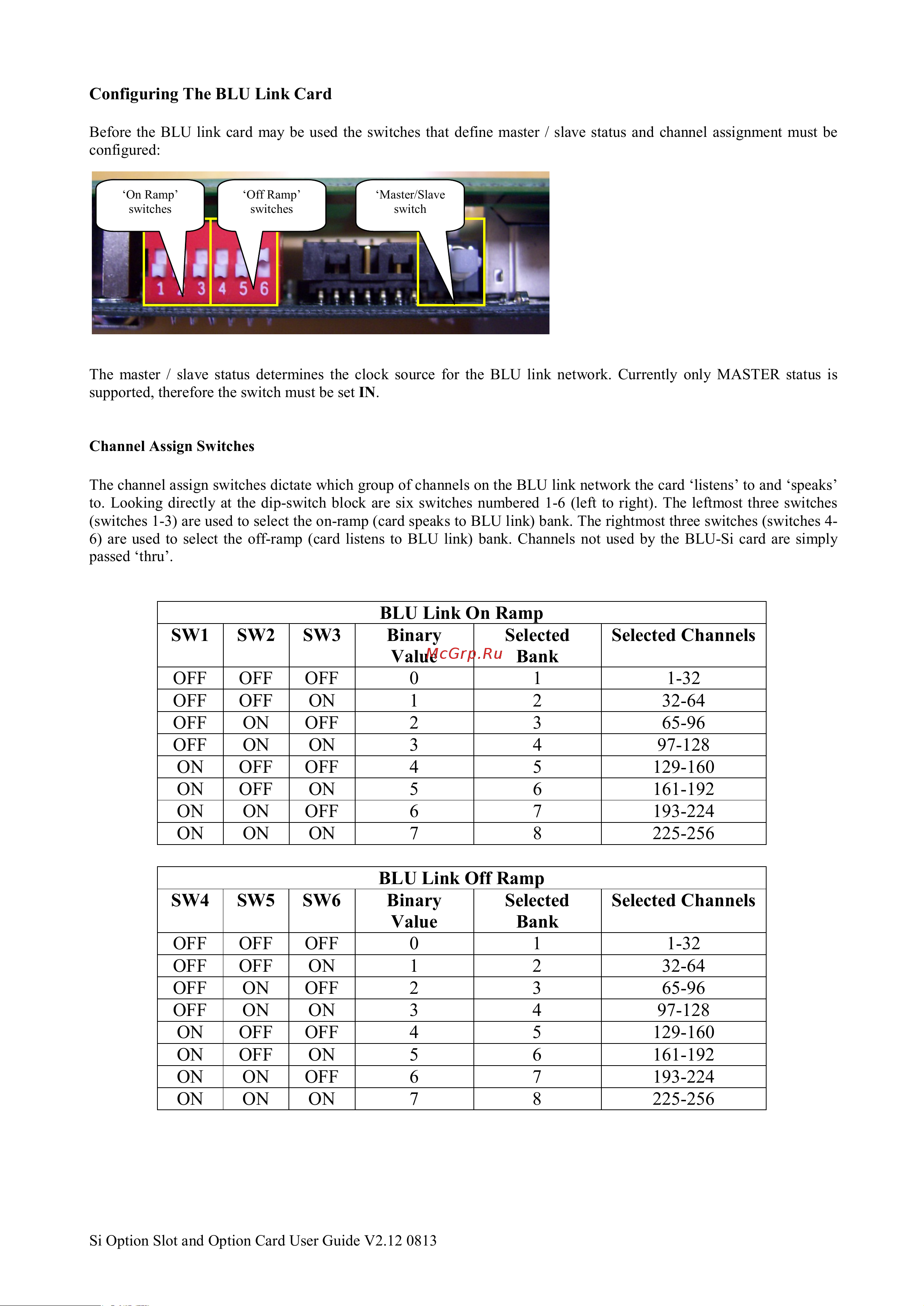

Si Option Slot and Option Card User Guide V2.12 0813
Configuring The BLU Link Card
Before the BLU link card may be used the switches that define master / slave status and channel assignment must be
configured:
The master / slave status determines the clock source for the BLU link network. Currently only MASTER status is
supported, therefore the switch must be set IN.
Channel Assign Switches
The channel assign switches dictate which group of channels on the BLU link network the card ‘listens’ to and ‘speaks’
to. Looking directly at the dip-switch block are six switches numbered 1-6 (left to right). The leftmost three switches
(switches 1-3) are used to select the on-ramp (card speaks to BLU link) bank. The rightmost three switches (switches 4-
6) are used to select the off-ramp (card listens to BLU link) bank. Channels not used by the BLU-Si card are simply
passed ‘thru’.
BLU Link On Ramp
SW1
SW2
SW3
Binary
Value
Selected
Bank
Selected Channels
OFF
OFF
OFF
0
1
1-32
OFF
OFF
ON
1
2
32-64
OFF
ON
OFF
2
3
65-96
OFF
ON
ON
3
4
97-128
ON
OFF
OFF
4
5
129-160
ON
OFF
ON
5
6
161-192
ON
ON
OFF
6
7
193-224
ON
ON
ON
7
8
225-256
BLU Link Off Ramp
SW4
SW5
SW6
Binary
Value
Selected Channels
OFF
OFF
OFF
0
1-32
OFF
OFF
ON
1
32-64
OFF
ON
OFF
2
65-96
OFF
ON
ON
3
97-128
ON
OFF
OFF
4
129-160
ON
OFF
ON
5
161-192
ON
ON
OFF
6
193-224
ON
ON
ON
7
225-256
‘On Ramp’
switches
‘Off Ramp’
switches
‘Master/Slave
switch
