Si Option Slot and Option Card User Guide V2.12 0813

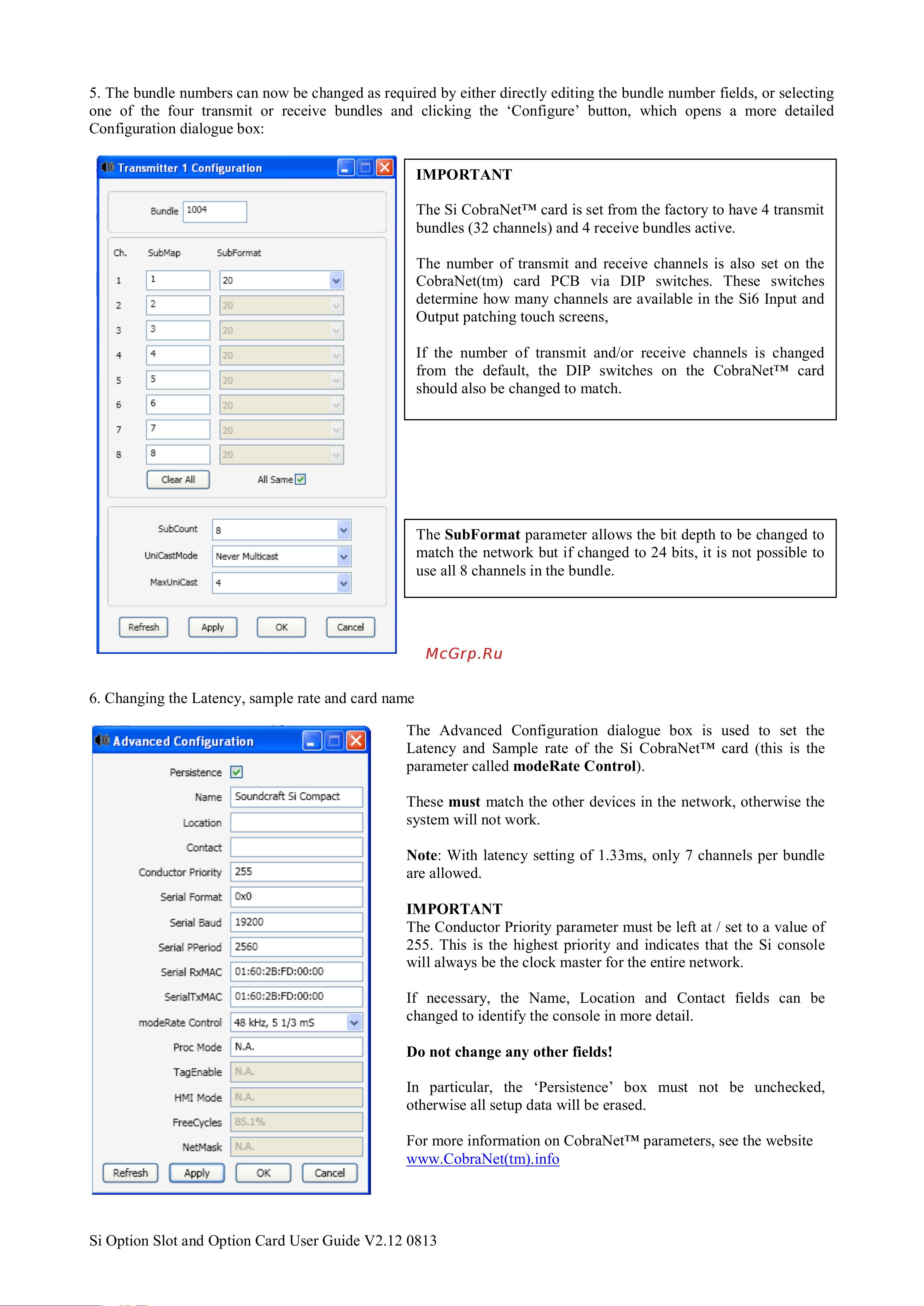

5. The bundle numbers can now be changed as required by either directly editing the bundle number fields, or selecting

one of the four transmit or receive bundles and clicking the ‘Configure’ button, which opens a more detailed

Configuration dialogue box:

6. Changing the Latency, sample rate and card name

IMPORTANT

The Si CobraNet™ card is set from the factory to have 4 transmit

bundles (32 channels) and 4 receive bundles active.

The number of transmit and receive channels is also set on the

CobraNet(tm) card PCB via DIP switch

es. These switches

determine how many channels are available in the Si6 Input and

Output patching touch screens,

If the number of transmit and/or receive channels is changed

from the default, the DIP switches on the CobraNet™ card

should also be changed to match.

The SubFormat parameter allows the bit depth to be changed to

match the network but if changed to 24 bits, it is not possible to

use all 8 channels in the bundle.

The Advanced Configuration dialogue box is used to set the

Latency and Sample rate of the Si CobraNet™ card (this is the

parameter called modeRate Control).

These must match the other devices in the network, otherwise the

system will not work.

Note: With latency setting of 1.33ms, only 7 channels per bundle

are allowed.

IMPORTANT

The Conductor Priority parameter must be left at / set to a value of

255. This is the highest priority and indicates that the Si console

will always be the clock master for the entire network.

If necessary, the Name, Location and Contact fields can be

changed to identify the console in more detail.

Do not change any other fields!

In particular, the

‘Persistence’ box must not be unchecked,

otherwise all setup data will be erased.

For more information on CobraNet™ parameters, see the website

www.CobraNet(tm).info
