Si Option Slot and Option Card User Guide V2.12 0813

64 Channel

Input

Expansion

Bus

64 Channel

Output

Expansion

Bus

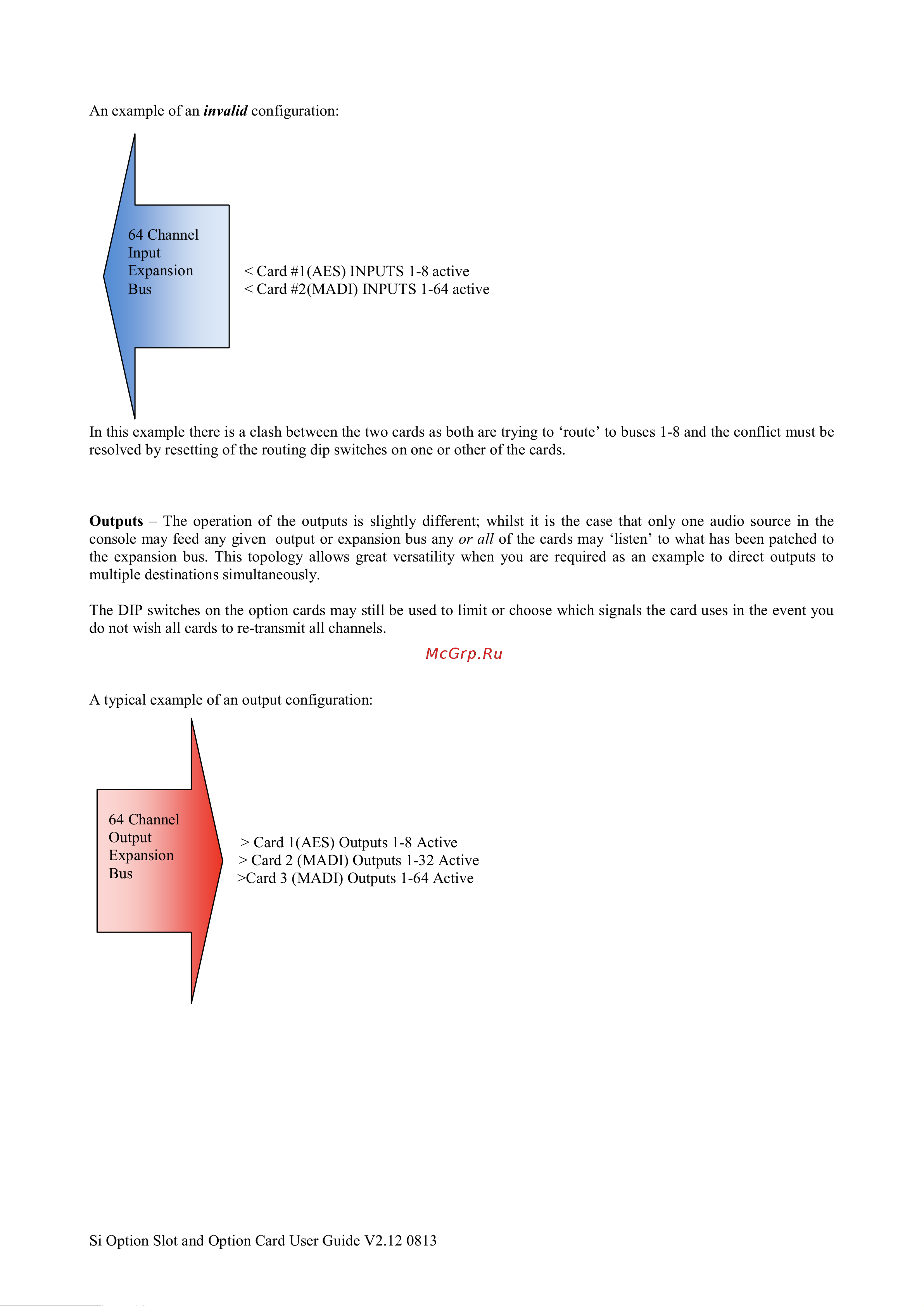

An example of an invalid configuration:

< Card #1(AES) INPUTS 1-8 active

< Card #2(MADI) INPUTS 1-64 active

In this example there is a clash between the two cards as both are trying to ‘route’ to buses 1-8 and the conflict must be

resolved by resetting of the routing dip switches on one or other of the cards.

Outputs – The operation of the outputs is slightly different; whilst it is the case that only one audio source in the

console may feed any given output or expansion bus any or all of the cards may ‘listen’ to what has been patched to

the expansion bus. This topology allows great versatility when you are required as an example to direct outputs to

multiple destinations simultaneously.

The DIP switches on the option cards may still be used to limit or choose which signals the card uses in the event you

do not wish all cards to re-transmit all channels.

A typical example of an output configuration:

> Card 1(AES) Outputs 1-8 Active

> Card 2 (MADI) Outputs 1-32 Active

>Card 3 (MADI) Outputs 1-64 Active
