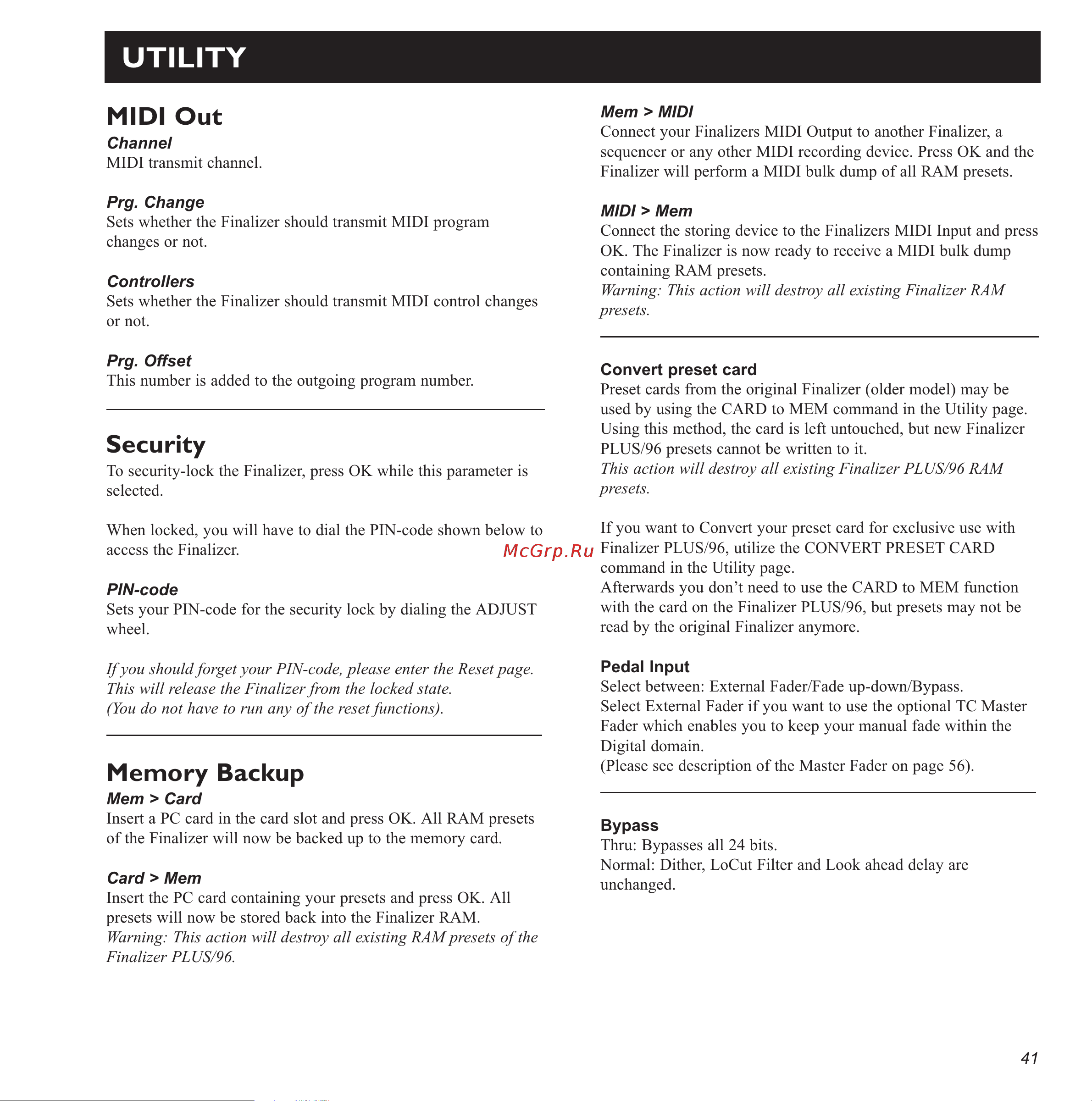

Tc Electronic Finalizer 96K [41/56] Utility
![Tc Electronic Finalizer 96K [41/56] Utility](/views2/2008480/page41/bg29.png)
41
Mem > MIDI
Connect your Finalizers MIDI Output to another Finalizer, a
sequencer or any other MIDI recording device. Press OK and the
Finalizer will perform a MIDI bulk dump of all RAM presets.
MIDI > Mem
Connect the storing device to the Finalizers MIDI Input and press
OK. The Finalizer is now ready to receive a MIDI bulk dump
containing RAM presets.
Warning: This action will destroy all existing Finalizer RAM
presets.
Convert preset card
Preset cards from the original Finalizer (older model) may be
used by using the CARD to MEM command in the Utility page.
Using this method, the card is left untouched, but new Finalizer
PLUS/96 presets cannot be written to it.
This action will destroy all existing Finalizer PLUS/96 RAM
presets.
If you want to Convert your preset card for exclusive use with
Finalizer PLUS/96, utilize the CONVERT PRESET CARD
command in the Utility page.
Afterwards you dont need to use the CARD to MEM function
with the card on the Finalizer PLUS/96, but presets may not be
read by the original Finalizer anymore.
Pedal Input
Select between: External Fader/Fade up-down/Bypass.
Select External Fader if you want to use the optional TC Master
Fader which enables you to keep your manual fade within the
Digital domain.
(Please see description of the Master Fader on page 56).
Bypass
Thru: Bypasses all 24 bits.
Normal: Dither, LoCut Filter and Look ahead delay are
unchanged.
MIDI Out
Channel
MIDI transmit channel.
Prg. Change
Sets whether the Finalizer should transmit MIDI program
changes or not.
Controllers
Sets whether the Finalizer should transmit MIDI control changes
or not.
Prg. Offset
This number is added to the outgoing program number.
Security
To security-lock the Finalizer, press OK while this parameter is
selected.
When locked, you will have to dial the PIN-code shown below to
access the Finalizer.
PIN-code
Sets your PIN-code for the security lock by dialing the ADJUST
wheel.
If you should forget your PIN-code, please enter the Reset page.
This will release the Finalizer from the locked state.
(You do not have to run any of the reset functions).
Memory Backup
Mem > Card
Insert a PC card in the card slot and press OK. All RAM presets
of the Finalizer will now be backed up to the memory card.
Card > Mem
Insert the PC card containing your presets and press OK. All
presets will now be stored back into the Finalizer RAM.
Warning: This action will destroy all existing RAM presets of the
Finalizer PLUS/96.
UTILITY
