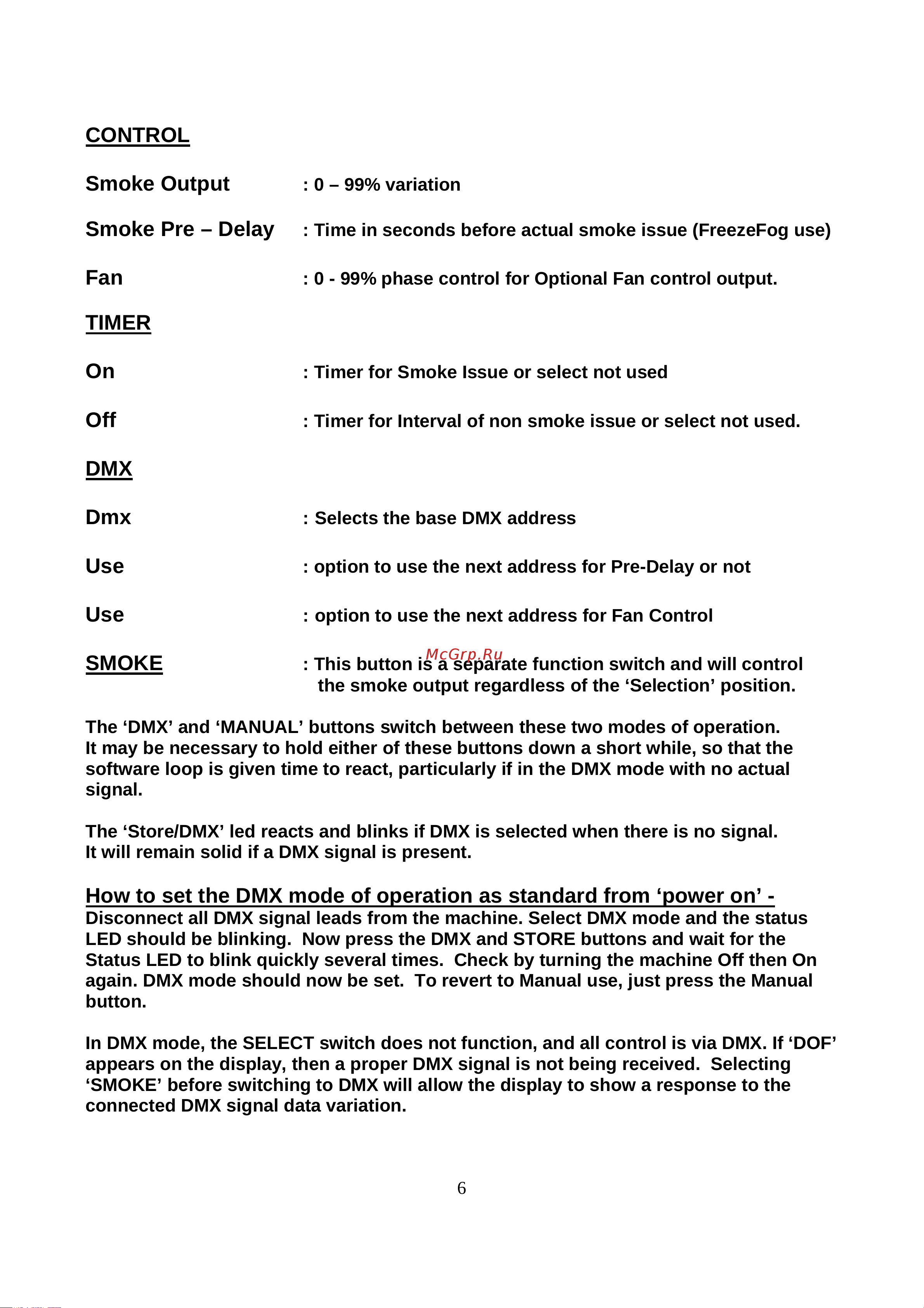

LE MAITRE G-Force 2 DMX [6/7] Control smoke output

CONTROL

Smoke Output

: 0 – 99% variation

Smoke Pre – Delay : Time in seconds before actual smoke issue (FreezeFog use)

Fan

: 0 - 99% phase control for Optional Fan control output.

TIMER

: Timer for Smoke Issue or select not used

Off

: Timer for Interval of non smoke issue or select not used.

DMX

Dmx

: Selects the base DMX address

Use

: option to use the next address for Pre-Delay or not

Use

: option to use the next address for Fan Control

SMOKE

: This button is a separate function switch and will control

the smoke output regardless of the ‘Selection’ position.

The ‘DMX’ and ‘MANUAL’ buttons switch between these two modes of operation.

It may be necessary to hold either of these buttons down a short while, so that the

software loop is given time to react, particularly if in the DMX mode with no actual

signal.

The ‘Store/DMX’ led reacts and blinks if DMX is selected when there is no signal.

It will remain solid if a DMX signal is present.

How to set the DMX mode of operation as standard from ‘power on’ -

Disconnect all DMX signal leads from the machine. Select DMX mode and the status

LED should be blinking. Now press the DMX and STORE buttons and wait for the

Status LED to blink quickly several times. Check by turning the machine Off then On

again. DMX mode should now be set. To revert to Manual use, just press the Manual

button.

In DMX mode, the SELECT switch does not function, and all control is via DMX. If ‘DOF’

appears on the display, then a proper DMX signal is not being received. Selecting

‘SMOKE’ before switching to DMX will allow the display to show a response to the

connected DMX signal data variation.
