©American DJ® - www.americandj.com - Royal 3D Instruction Manual Page 12©American DJ® - www.americandj.com - Royal 3D Instruction Manual Page 11
System Menu: When conrming your setting press ENTER
and then hold MENU for at least 2-3 seconds, or you can
wait 1 minute for automatic setup. To exit without making
any adjustments press the MENU button.
Addr - DMX Address Setting via control board -
1. Press the MENU button until “Addr” is displayed, press ENTER.
2. “X” will now be displayed, “X” represents the displayed address.
Press the UP or DOWN buttons to nd your desired address.
3. Press ENTER to conrm, then connect your DMX controller.
NOTE: If after you connect your DMX controller the unit does not fall
into DMX mode, press and hold the MENU button for at least 3 sec-
onds.
SLNd - This will let you set unit as a slave in a master/
slave conguration.
1. Press the MENU button until “SLNd” is displayed, press ENTER.
Either “SL 1” or “SL 2” will be displayed.
2. Press the UP or DOWN buttons until your desired setting is dis-
played, press ENTER to conm.
NOTE: In a Master/Slave conguration you can make one xture the
Master and then set the next xture to “SL 2”, the xtures will now
have contrast movement to each other.
SOUN - In this mode you can run in sound active mode.
1. Press the MENU button until “SOUN” is displayed, press ENTER.
2. Either “ON” or “OFF” will now be displayed. Press the UP or DOWN
buttons to select one or the other.
3. When you have made your selection, press the ENTER, and then
press and hold the MENU button for at least 3 seconds to conrm.

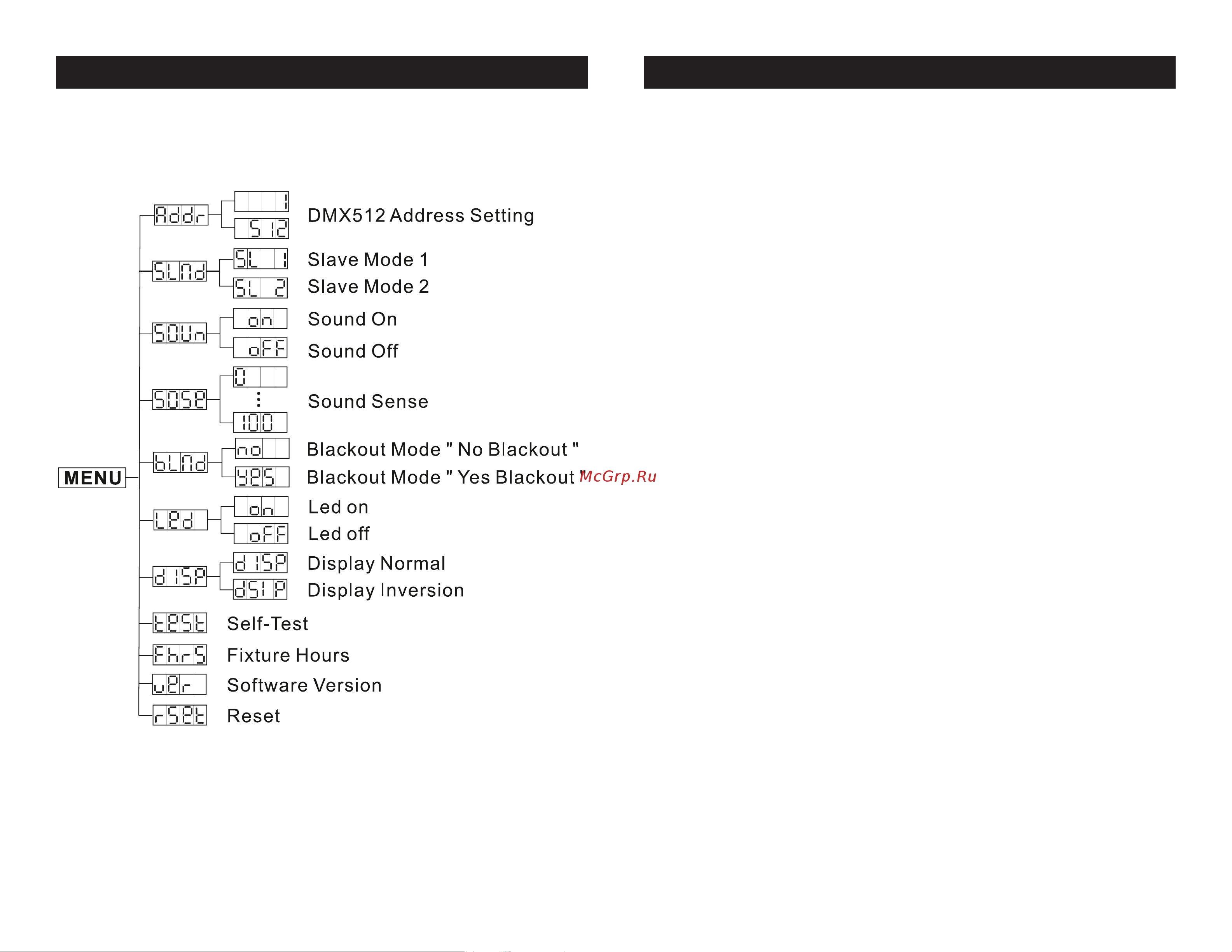

Royal 3D System Menu Royal 3D System Menu
