SmaLL Pa with SubS
Whenusingatraditionalmixerwithoneor
moreL3t/L3mtowersandoneormoreL3s
subsconnectedviaL6LINK,connectboth
theMainLeftandMainRightoutputsofthe
mixertooneL3s’sLeftandRightinputs.
ConnecttheL3s’sL6LINKOut/Thrutoan
L3torL3myouwishtodesignateasleft.
Continuedaisy-chainingspeakersviaL6
LINK.L3subsandtowerswillautomatically
congurethemselvesasleft,right,ormono
(left+right),accordingtothetableonpage
16.

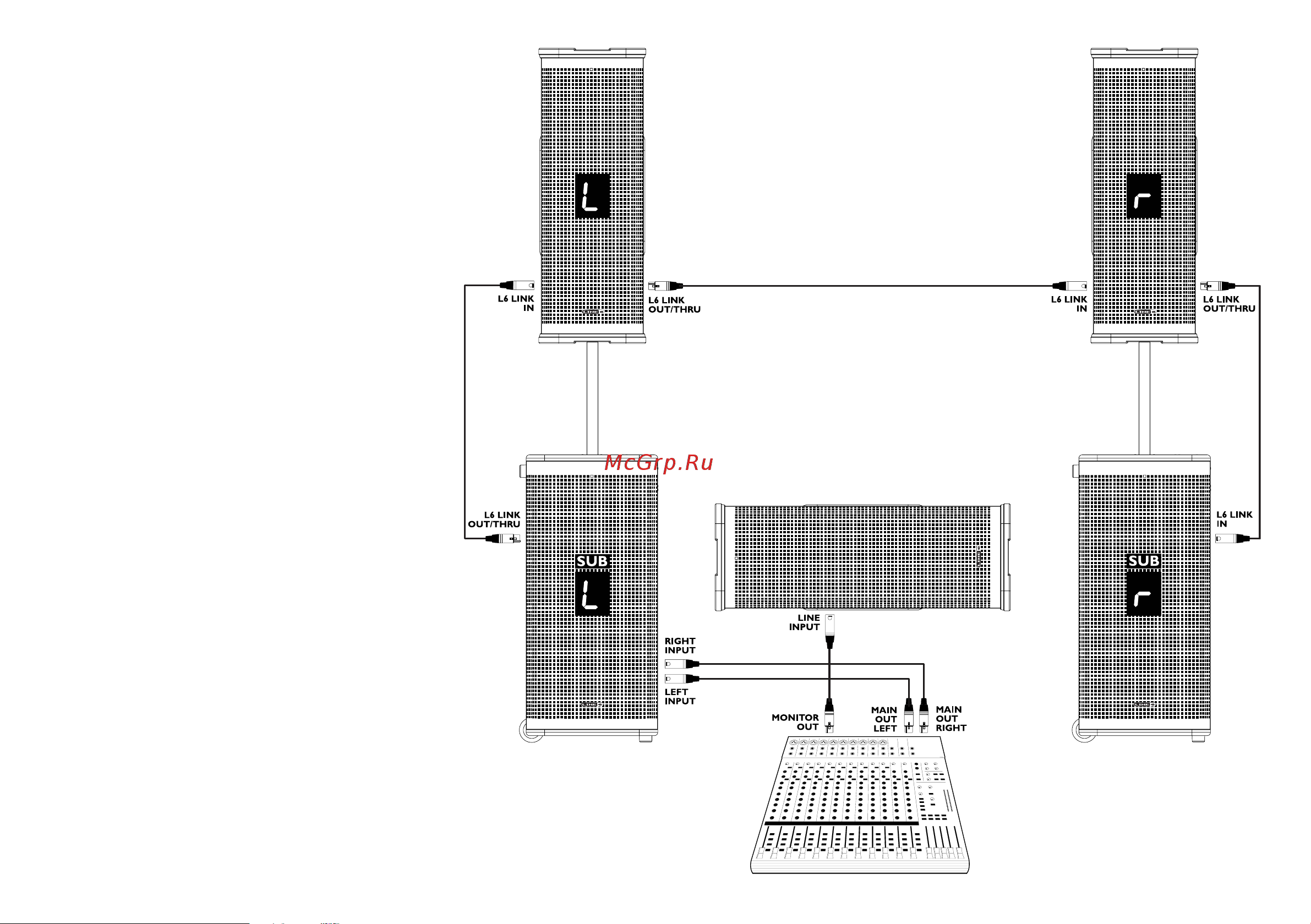

Intheillustrationtotheright,therst
subandrsttoweraredesignatedleft.As
there are only two subs and two towers, the
otherL3t/L3mandL3sareautomatically
designated right.
Theoormonitorisconnectedviatraditional
meansfromthemixer’smonitoroutput.
