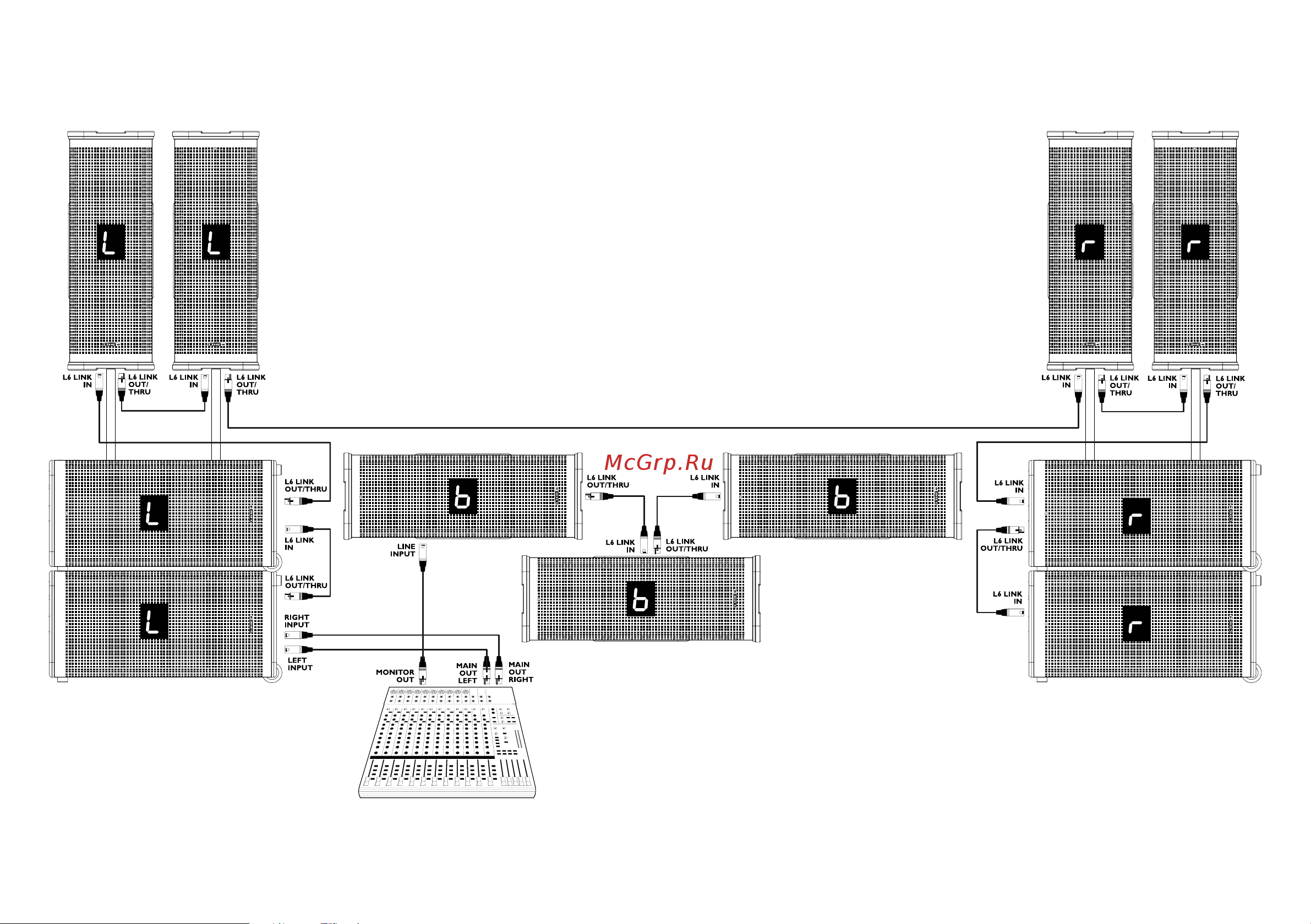

Large Pa with SubS
WhenusingatraditionalmixerwithoneormoreL3t/L3mtowersandoneormoreL3s
subsconnectedviaL6LINK,connectboththeMainLeftandMainRightoutputsofthe
mixertooneL3s’sLeftandRightinputs.
Continuedaisy-chainingspeakersviaL6LINK.
AnyL3subsandtowerswillautomaticallycongurethemselvesasleft,right,ormono
(left+right),accordingtothetableonpage16.
Inthisillustration,thethreeoormonitorsexistonaseparateL6LINKnetwork,andas
they’returnedontheirsides,willautomaticallysumtheleftandrightchannelsofany
signals received (“b” for both).
