StageScaPe
m20d—SmaLL Pa

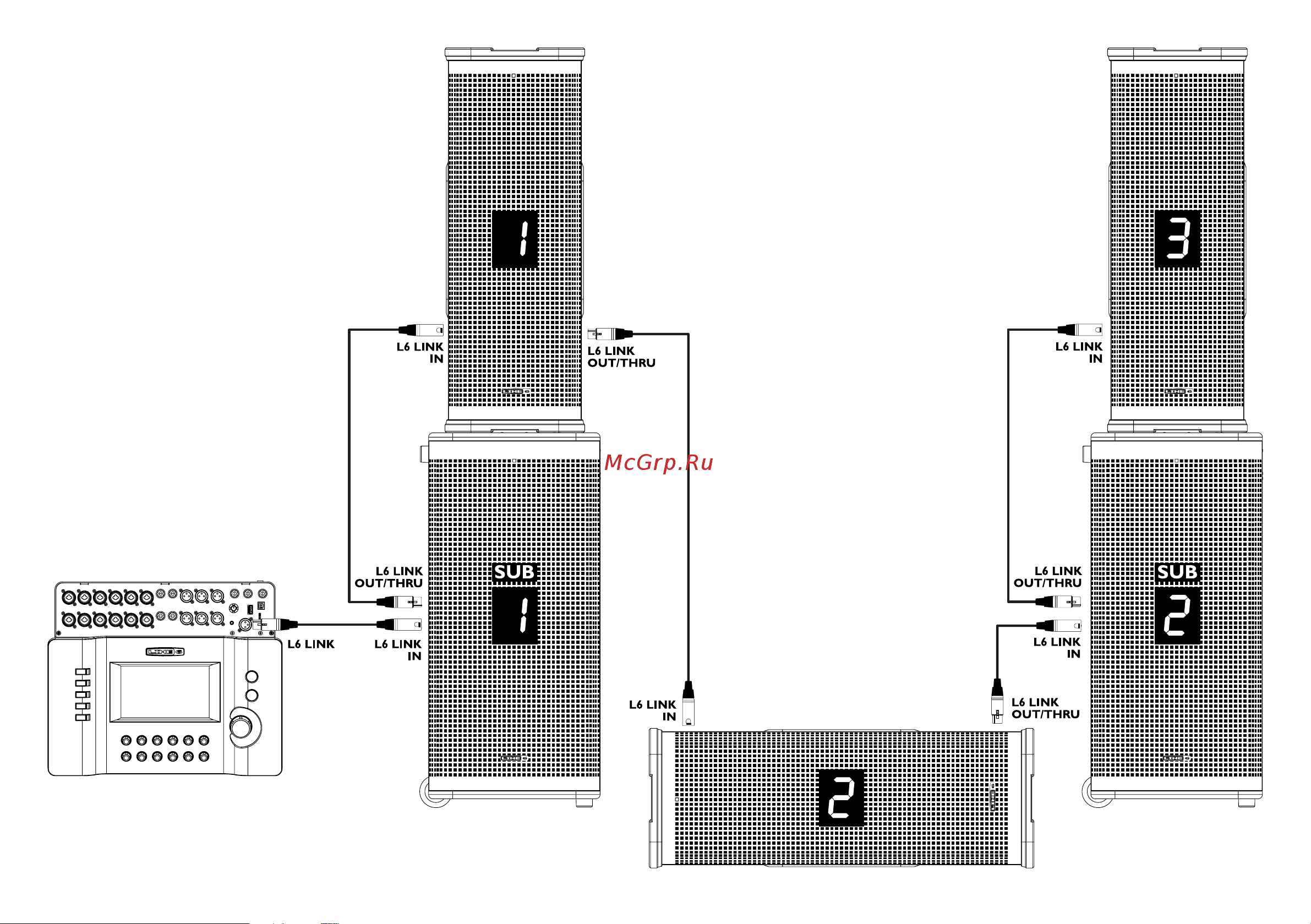

ConnecttheL6LINKoutfroma
StageScapeM20dmixertotherear
panelL6LINKInonanyspeakerin
the network.
AnyL3t/L3mtowersandL3s
subsonanL6LINKnetworkare
numbered independently.
Inthisillustration,thetwoL3s
subs(labeledSUB1and2)will,
by default, play left and right,
respectively.ThetwouprightL3t/
L3mtowers(numbered1and3)
will, by default, play left and right,
respectively.L3t/L3mnumber2,
becauseit’slaidonitsside,will
automatically play discrete monitor
feedA.
Anyspeakeronthenetwork
can have its channel assignment
changedfromtheM20d’stouch
screen interface.
