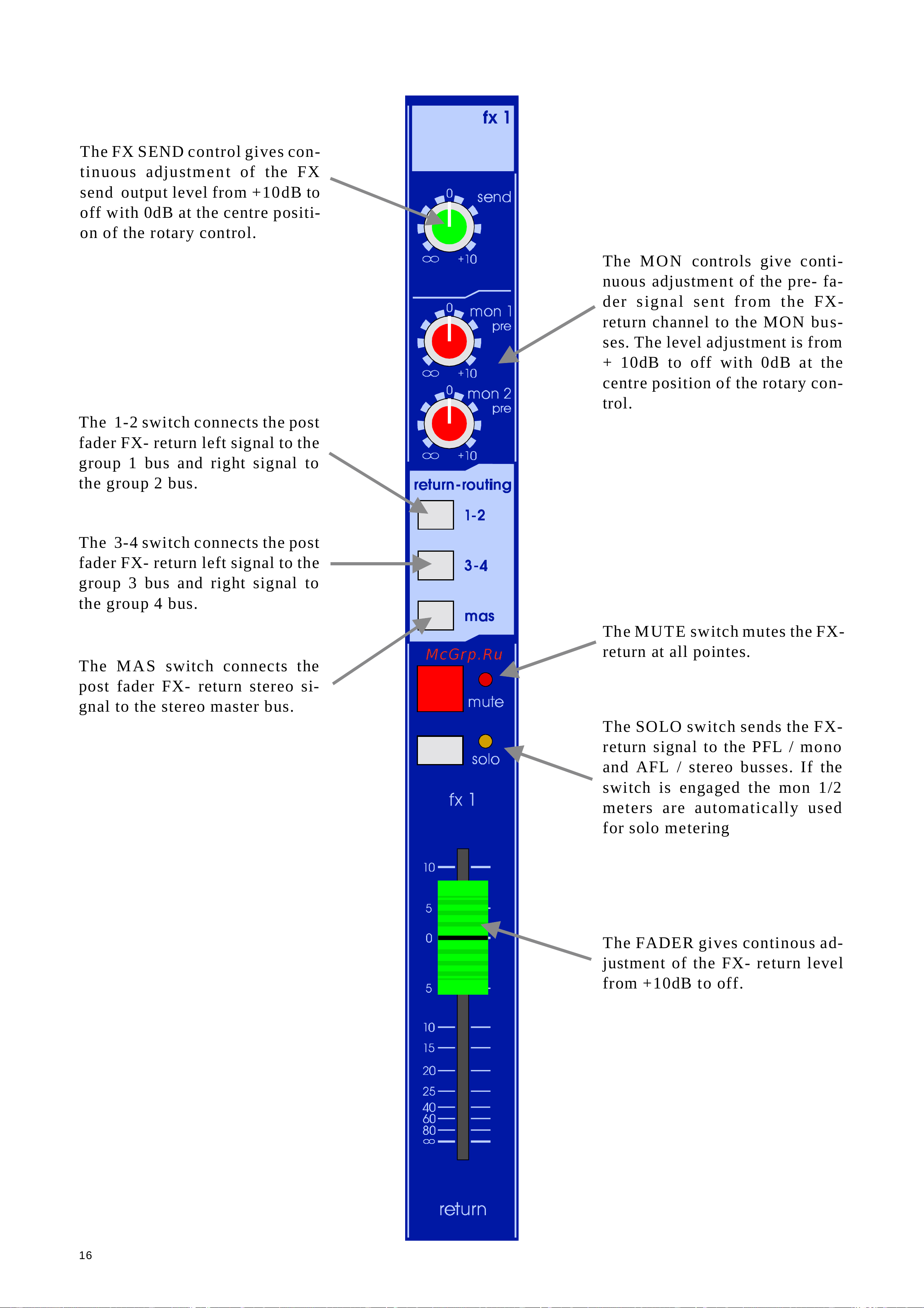

The FX SEND control gives con-

tinuous adjustment of the FX

send output level from +10dB to

off with 0dB at the centre positi-

on of the rotary control.

The 1-2 switch connects the post

fader FX- return left signal to the

group 1 bus and right signal to

the group 2 bus.

The 3-4 switch connects the post

fader FX- return left signal to the

group 3 bus and right signal to

the group 4 bus.

The MAS switch connects the

post fader FX- return stereo si-

gnal to the stereo master bus.

The MON controls give conti-

nuous adjustment of the pre- fa-

der signal sent from the FX-

return channel to the MON bus-

ses. The level adjustment is from

+ 10dB to off with 0dB at the

centre position of the rotary con-

trol.

The MUTE switch mutes the FX-

return at all pointes.

The SOLO switch sends the FX-

return signal to the PFL / mono

and AFL / stereo busses. If the

switch is engaged the mon 1/2

meters are automatically used

for solo metering

The FADER gives continous ad-

justment of the FX- return level

from +10dB to off.
