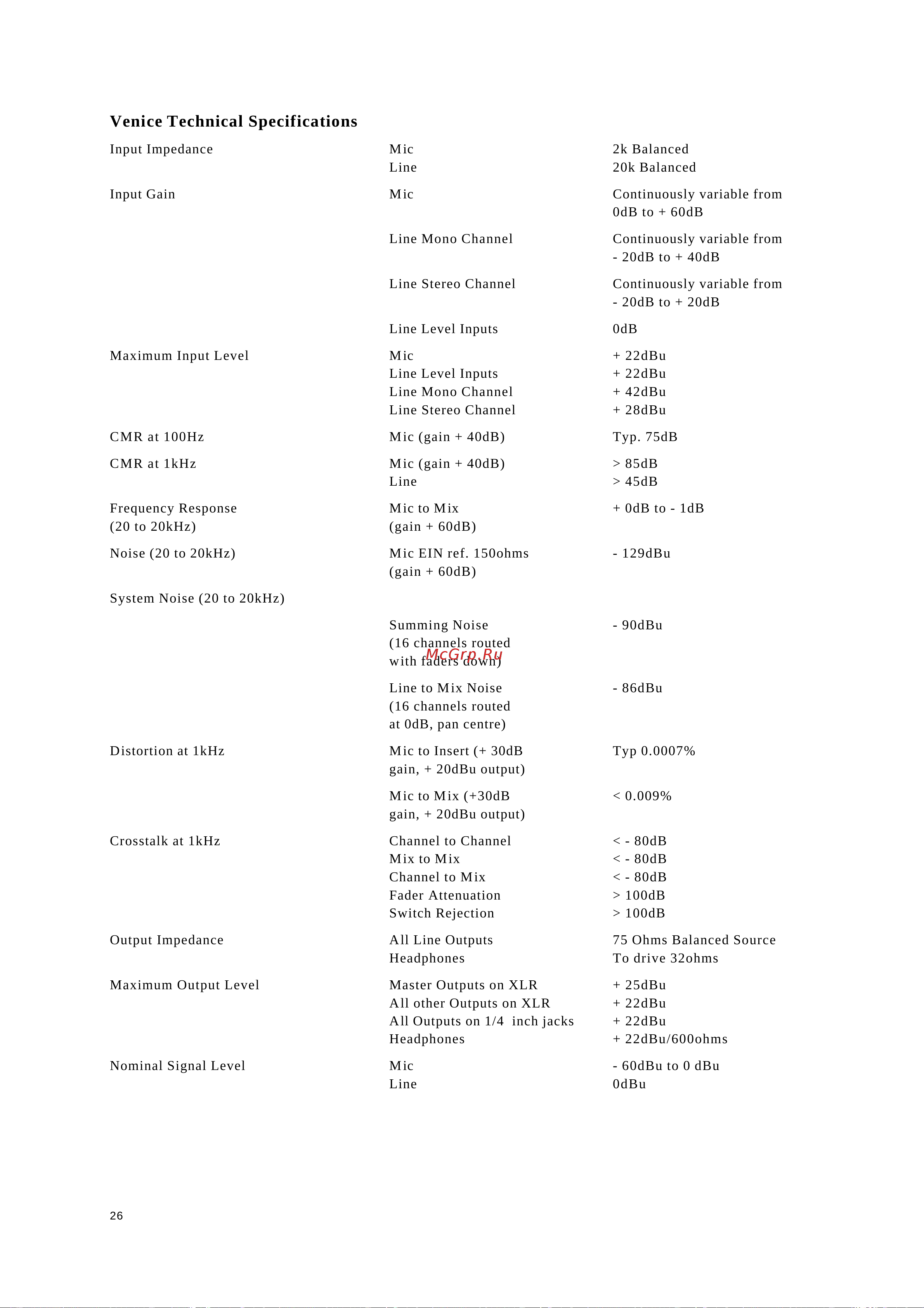

Venice
Technical Specifications
Input Impedance Mic 2k Balanced
Line 20k Balanced
Input Gain Mic Continuously variable from
0dB to + 60dB
Line Mono Channel Continuously variable from
- 20dB to + 40dB
Line Stereo Channel Continuously variable from
- 20dB to + 20dB
Line Level Inputs 0dB
Maximum Input Level Mic + 22dBu
Line Level Inputs + 22dBu
Line Mono Channel + 42dBu
Line Stereo Channel + 28dBu
CMR at 100Hz Mic (gain + 40dB) Typ. 75dB
CMR at 1kHz Mic (gain + 40dB) > 85dB
Line > 45dB
Frequency Response Mic to Mix + 0dB to - 1dB
(20 to 20kHz) (gain + 60dB)
Noise (20 to 20kHz) Mic EIN ref. 150ohms - 129dBu
(gain + 60dB)
System Noise (20 to 20kHz)
Summing Noise - 90dBu
(16 channels routed
with faders down)
Line to Mix Noise - 86dBu
(16 channels routed
at 0dB, pan centre)
Distortion at 1kHz Mic to Insert (+ 30dB Typ 0.0007%
gain, + 20dBu output)
Mic to Mix (+30dB < 0.009%
gain, + 20dBu output)
Crosstalk at 1kHz Channel to Channel < - 80dB
Mix to Mix < - 80dB
Channel to Mix < - 80dB
Fader Attenuation > 100dB
Switch Rejection > 100dB
Output Impedance All Line Outputs 75 Ohms Balanced Source
Headphones To drive 32ohms
Maximum Output Level Master Outputs on XLR + 25dBu
All other Outputs on XLR + 22dBu
All Outputs on 1/4 inch jacks + 22dBu
Headphones + 22dBu/600ohms
Nominal Signal Level Mic - 60dBu to 0 dBu
Line 0dBu
26
