MIDAS VF16 [21/29] May not be exceeded

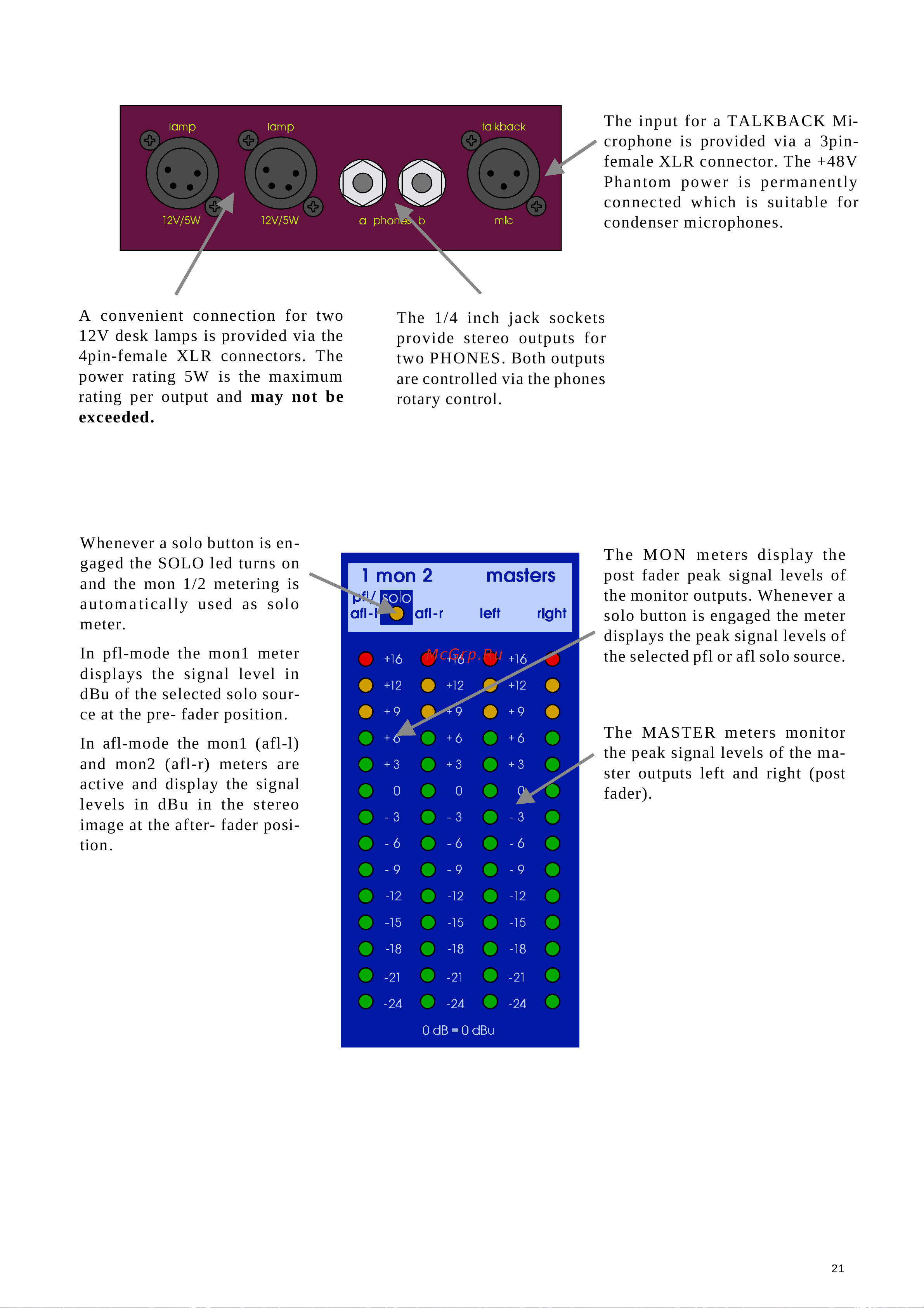

A convenient connection for two

12V desk lamps is provided via the

4pin-female XLR connectors. The

power rating 5W is the maximum

rating per output and may not be

exceeded.

The 1/4 inch jack sockets

provide stereo outputs for

two PHONES. Both outputs

are controlled via the phones

rotary control.

The input for a TALKBACK Mi-

crophone is provided via a 3pin-

female XLR connector. The +48V

Phantom power is permanently

connected which is suitable for

condenser microphones.

Whenever a solo button is en-

gaged the SOLO led turns on

and the mon 1/2 metering is

automatically used as solo

meter.

In pfl-mode the mon1 meter

displays the signal level in

dBu of the selected solo sour-

ce at the pre- fader position.

In afl-mode the mon1 (afl-l)

and mon2 (afl-r) meters are

active and display the signal

levels in dBu in the stereo

image at the after- fader posi-

tion.

The MON meters display the

post fader peak signal levels of

the monitor outputs. Whenever a

solo button is engaged the meter

displays the peak signal levels of

the selected pfl or afl solo source.

The MASTER meters monitor

the peak signal levels of the ma-

ster outputs left and right (post

fader).
