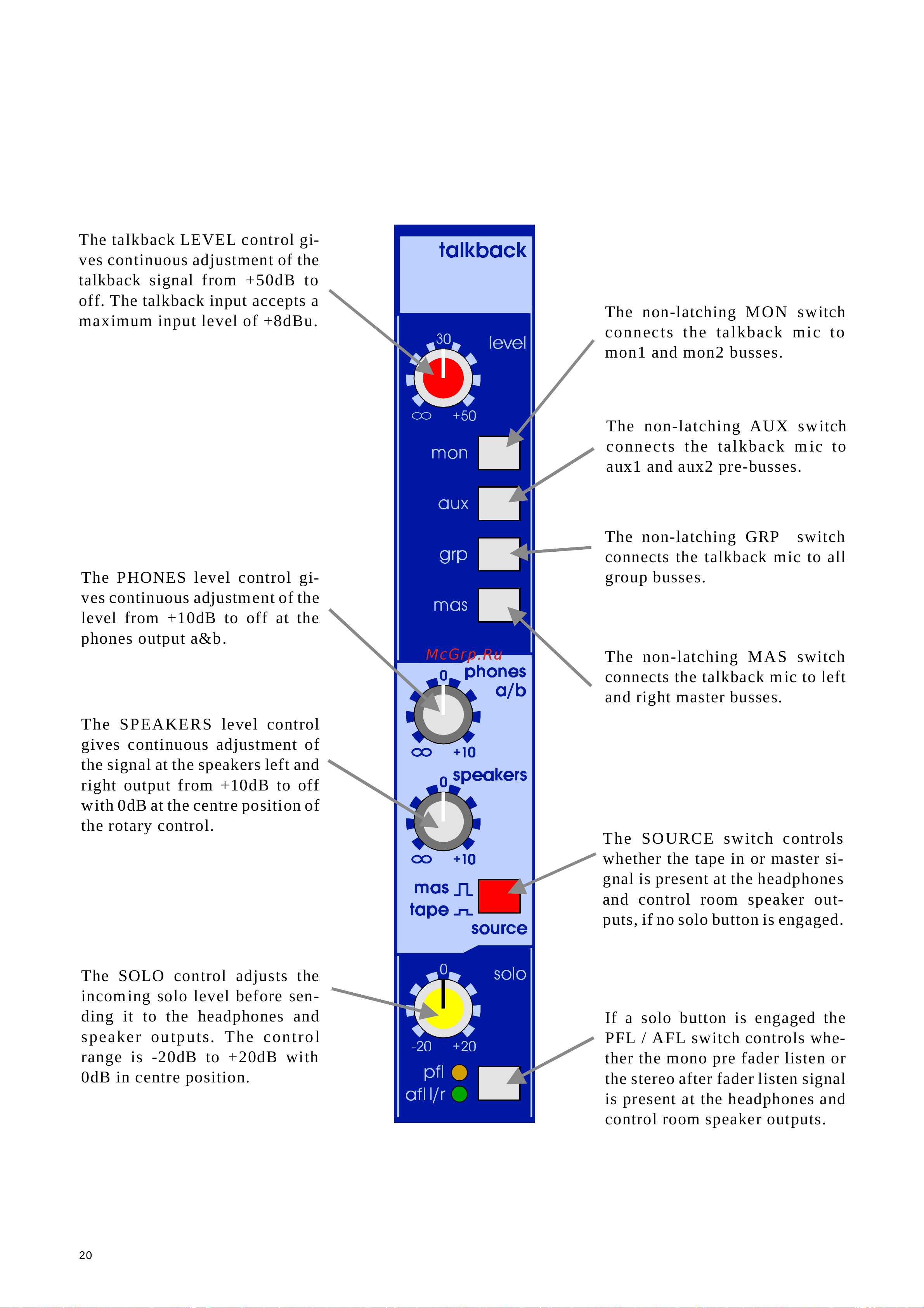

The talkback LEVEL control gi-

ves continuous adjustment of the

talkback signal from +50dB to

off. The talkback input accepts a

maximum input level of +8dBu.

The non-latching MON switch

connects the talkback mic to

mon1 and mon2 busses.

The non-latching AUX switch

connects the talkback mic to

aux1 and aux2 pre-busses.

The non-latching GRP switch

connects the talkback mic to all

group busses.

The non-latching MAS switch

connects the talkback mic to left

and right master busses.

The PHONES level control gi-

ves continuous adjustment of the

level from +10dB to off at the

phones output a&b.

The SOURCE switch controls

whether the tape in or master si-

gnal is present at the headphones

and control room speaker out-

puts, if no solo button is engaged.

The SPEAKERS level control

gives continuous adjustment of

the signal at the speakers left and

right output from +10dB to off

with 0dB at the centre position of

the rotary control.

The SOLO control adjusts the

incoming solo level before sen-

ding it to the headphones and

speaker outputs. The control

range is -20dB to +20dB with

0dB in centre position.

If a solo button is engaged the

PFL / AFL switch controls whe-

ther the mono pre fader listen or

the stereo after fader listen signal

is present at the headphones and

control room speaker outputs.
