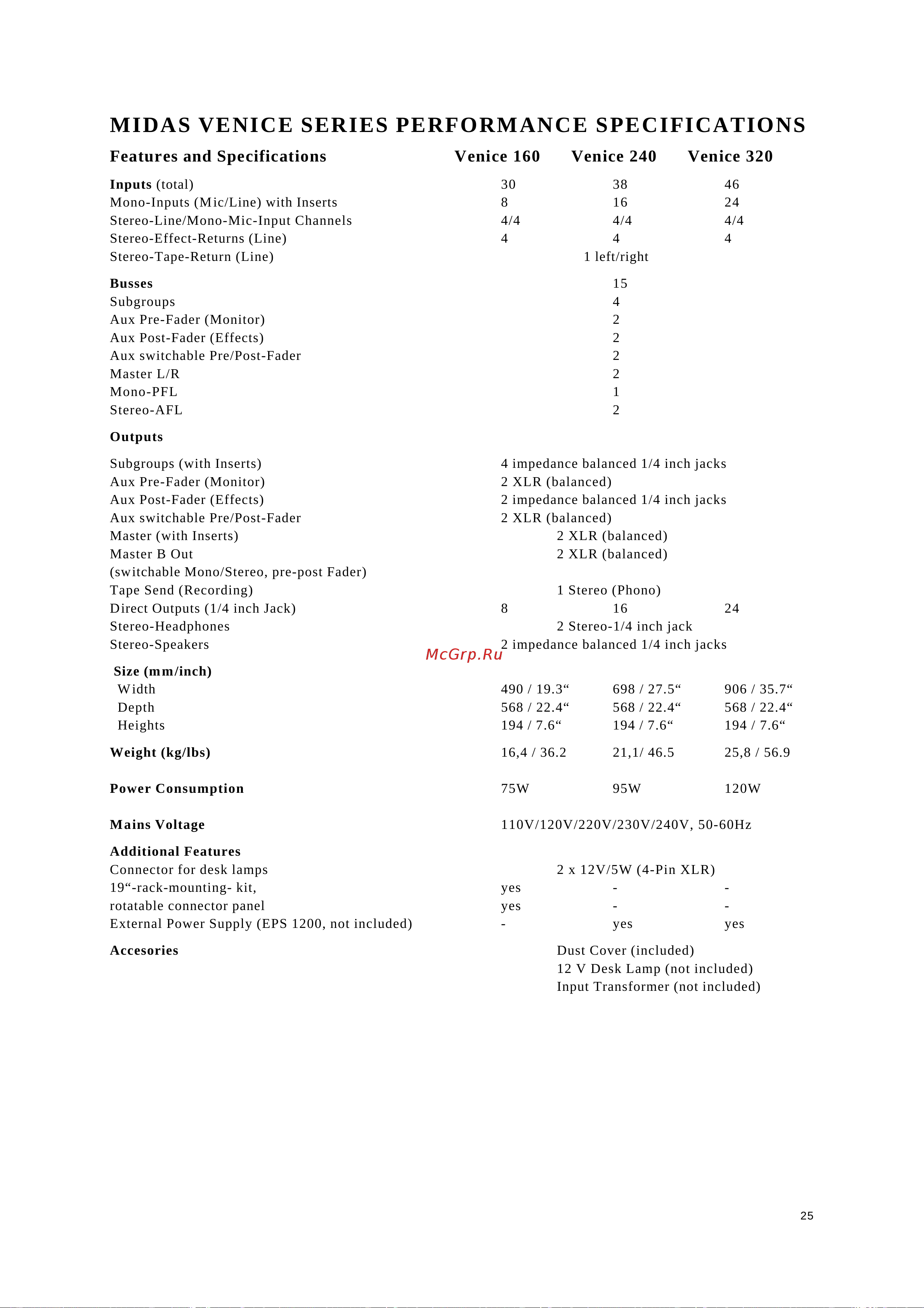

MIDAS VENICE SERIES PERFORMANCE SPECIFICATIONS

Features and Specifications Venice 160 Venice 240 Venice 320

Inputs (total) 30 38 46

Mono-Inputs (Mic/Line) with Inserts 8 16 24

Stereo-Line/Mono-Mic-Input Channels 4/4 4/4 4/4

Stereo-Effect-Returns (Line) 4 4 4

Stereo-Tape-Return (Line) 1 left/right

Busses 15

Subgroups 4

Aux Pre-Fader (Monitor) 2

Aux Post-Fader (Effects) 2

Aux switchable Pre/Post-Fader 2

Master L/R 2

Mono-PFL 1

Stereo-AFL 2

Outputs

Subgroups (with Inserts) 4 impedance balanced 1/4 inch jacks

Aux Pre-Fader (Monitor) 2 XLR (balanced)

Aux Post-Fader (Effects) 2 impedance balanced 1/4 inch jacks

Aux switchable Pre/Post-Fader 2 XLR (balanced)

Master (with Inserts) 2 XLR (balanced)

Master B Out 2 XLR (balanced)

(switchable Mono/Stereo, pre-post Fader)

Tape Send (Recording) 1 Stereo (Phono)

Direct Outputs (1/4 inch Jack) 8 16 24

Stereo-Headphones 2 Stereo-1/4 inch jack

Stereo-Speakers 2 impedance balanced 1/4 inch jacks

Size (mm/inch)

Width 490 / 19.3“ 698 / 27.5“ 906 / 35.7“

Depth 568 / 22.4“ 568 / 22.4“ 568 / 22.4“

Heights 194 / 7.6“ 194 / 7.6“ 194 / 7.6“

Weight (kg/lbs) 16,4 / 36.2 21,1/ 46.5 25,8 / 56.9

Power Consumption 75W 95W 120W

Mains Voltage 110V/120V/220V/230V/240V, 50-60Hz

Additional Features

Connector for desk lamps 2 x 12V/5W (4-Pin XLR)

19“-rack-mounting- kit, yes - -

rotatable connector panel yes - -

External Power Supply (EPS 1200, not included) - yes yes

Accesories Dust Cover (included)

12 V Desk Lamp (not included)

Input Transformer (not included)
