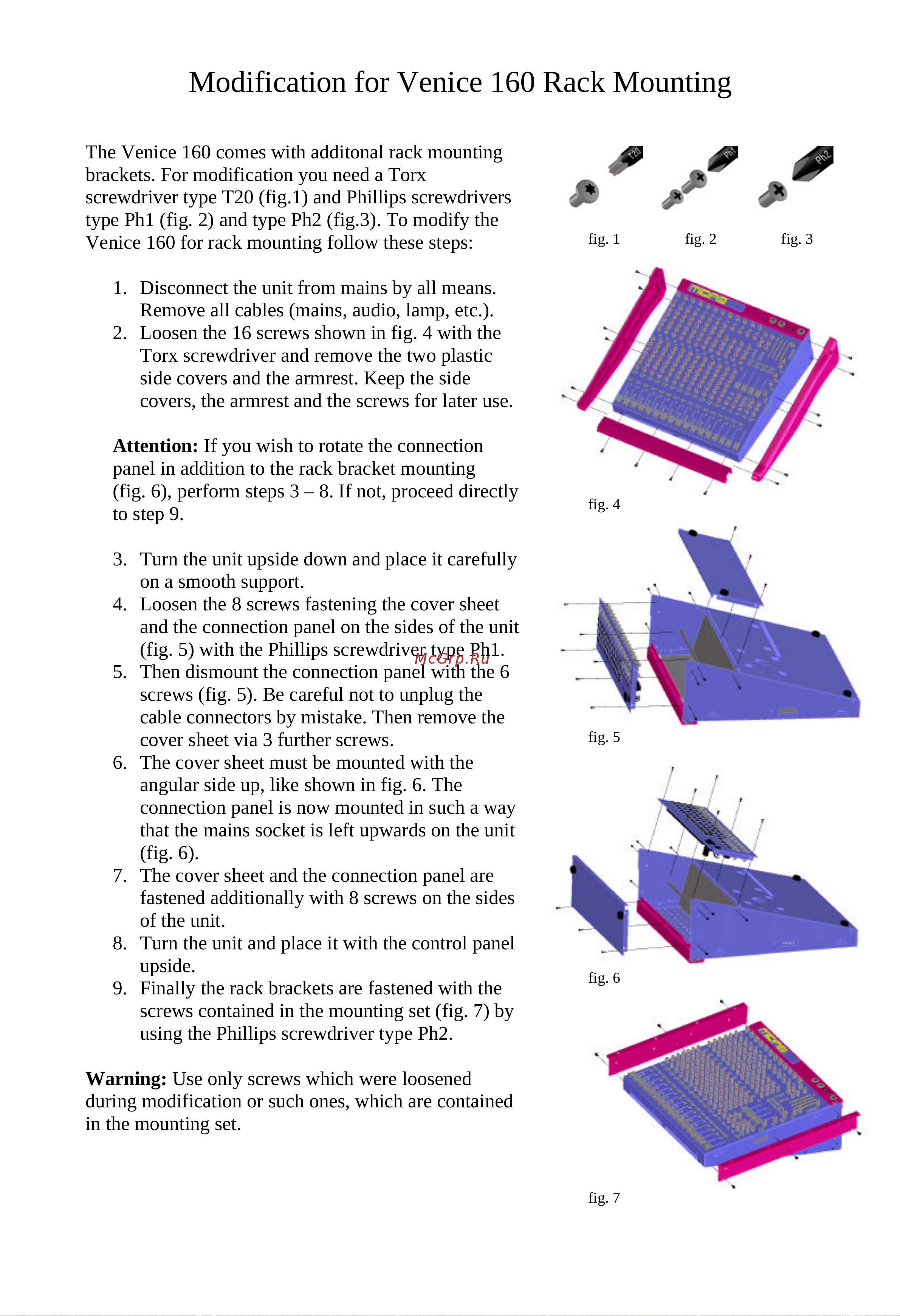

Modification for Venice 160 Rack Mounting
The Venice 160 comes with additonal rack mounting
brackets. For modification you need a Torx
screwdriver type T20 (fig.1) and Phillips screwdrivers
type Ph1 (fig. 2) and type Ph2 (fig.3). To modify the
Venice 160 for rack mounting follow these steps:
1. Disconnect the unit from mains by all means.
Remove all cables (mains, audio, lamp, etc.).
2. Loosen the 16 screws shown in fig. 4 with the
Torx screwdriver and remove the two plastic
side covers and the armrest. Keep the side
covers, the armrest and the screws for later use.
Attention: If you wish to rotate the connection
panel in addition to the rack bracket mounting
(fig. 6), perform steps 3 – 8. If not, proceed directly
to step 9.
3. Turn the unit upside down and place it carefully
on a smooth support.
4. Loosen the 8 screws fastening the cover sheet
and the connection panel on the sides of the unit
(fig. 5) with the Phillips screwdriver type Ph1.
5. Then dismount the connection panel with the 6
screws (fig. 5). Be careful not to unplug the
cable connectors by mistake. Then remove the
cover sheet via 3 further screws.
6. The cover sheet must be mounted with the
angular side up, like shown in fig. 6. The
connection panel is now mounted in such a way
that the mains socket is left upwards on the unit
(fig. 6).
7. The cover sheet and the connection panel are
fastened additionally with 8 screws on the sides
of the unit.
8. Turn the unit and place it with the control panel
upside.
9. Finally the rack brackets are fastened with the
screws contained in the mounting set (fig. 7) by
using the Phillips screwdriver type Ph2.
Warning: Use only screws which were loosened
during modification or such ones, which are contained
in the mounting set.
fig. 1 fig. 2 fig. 3
fig. 4
fig. 5
fig. 6
fig. 7
