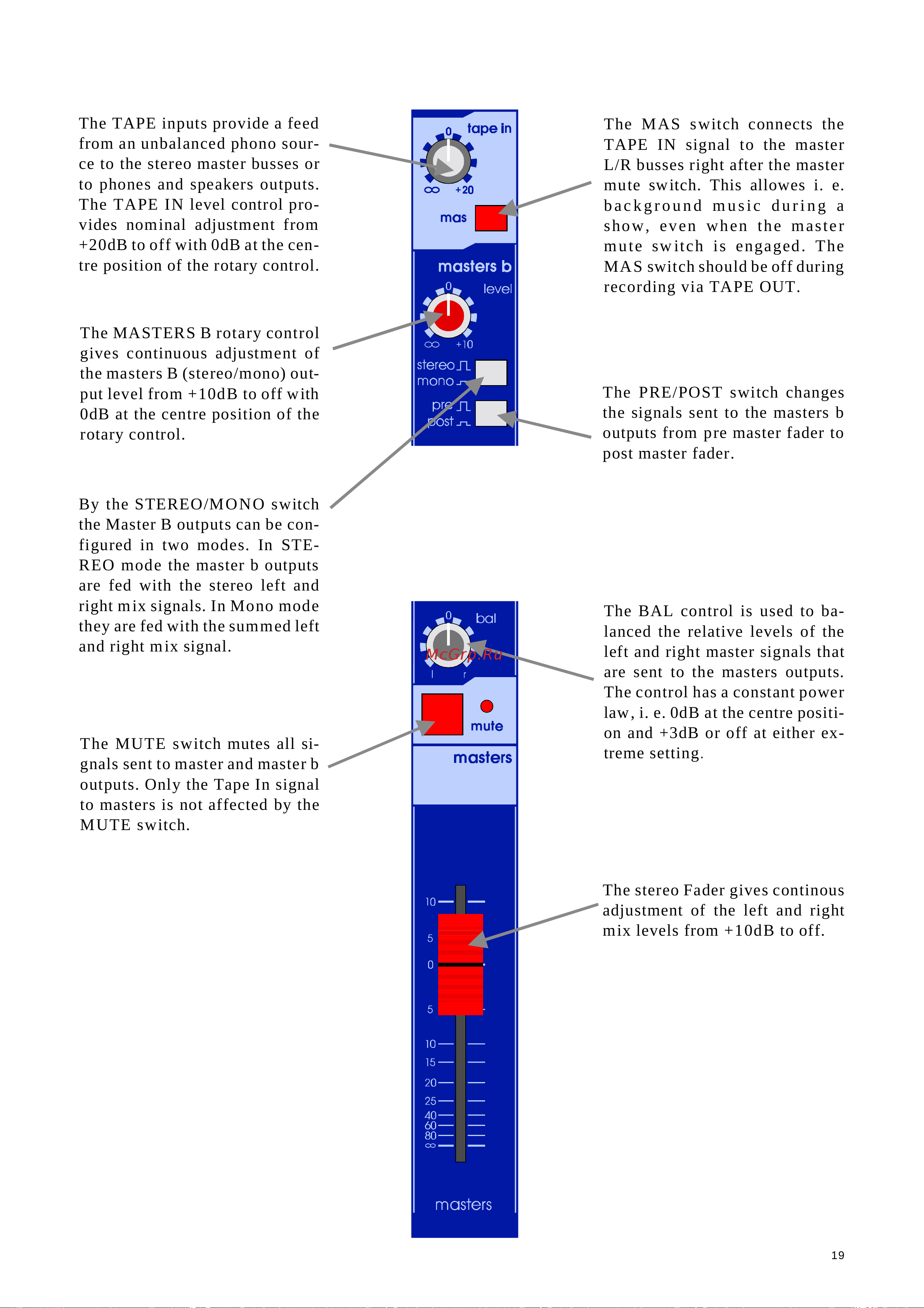

The TAPE inputs provide a feed
from an unbalanced phono sour-
ce to the stereo master busses or
to phones and speakers outputs.
The TAPE IN level control pro-
vides nominal adjustment from
+20dB to off with 0dB at the cen-
tre position of the rotary control.
The MAS switch connects the
TAPE IN signal to the master
L/R busses right after the master
mute switch. This allowes i. e.
background music during a
show, even when the master
mute switch is engaged. The
MAS switch should be off during
recording via TAPE OUT.
The MASTERS B rotary control
gives continuous adjustment of
the masters B (stereo/mono) out-
put level from +10dB to off with
0dB at the centre position of the
rotary control.
The PRE/POST switch changes
the signals sent to the masters b
outputs from pre master fader to
post master fader.
By the STEREO/MONO switch
the Master B outputs can be con-
figured in two modes. In STE-
REO mode the master b outputs
are fed with the stereo left and
right mix signals. In Mono mode
they are fed with the summed left
and right mix signal.
The BAL control is used to ba-
lanced the relative levels of the
left and right master signals that
are sent to the masters outputs.
The control has a constant power
law, i. e. 0dB at the centre positi-
on and +3dB or off at either ex-
treme setting.
The MUTE switch mutes all si-
gnals sent to master and master b
outputs. Only the Tape In signal
to masters is not affected by the
MUTE switch.
The stereo Fader gives continous
adjustment of the left and right
mix levels from +10dB to off.
19
