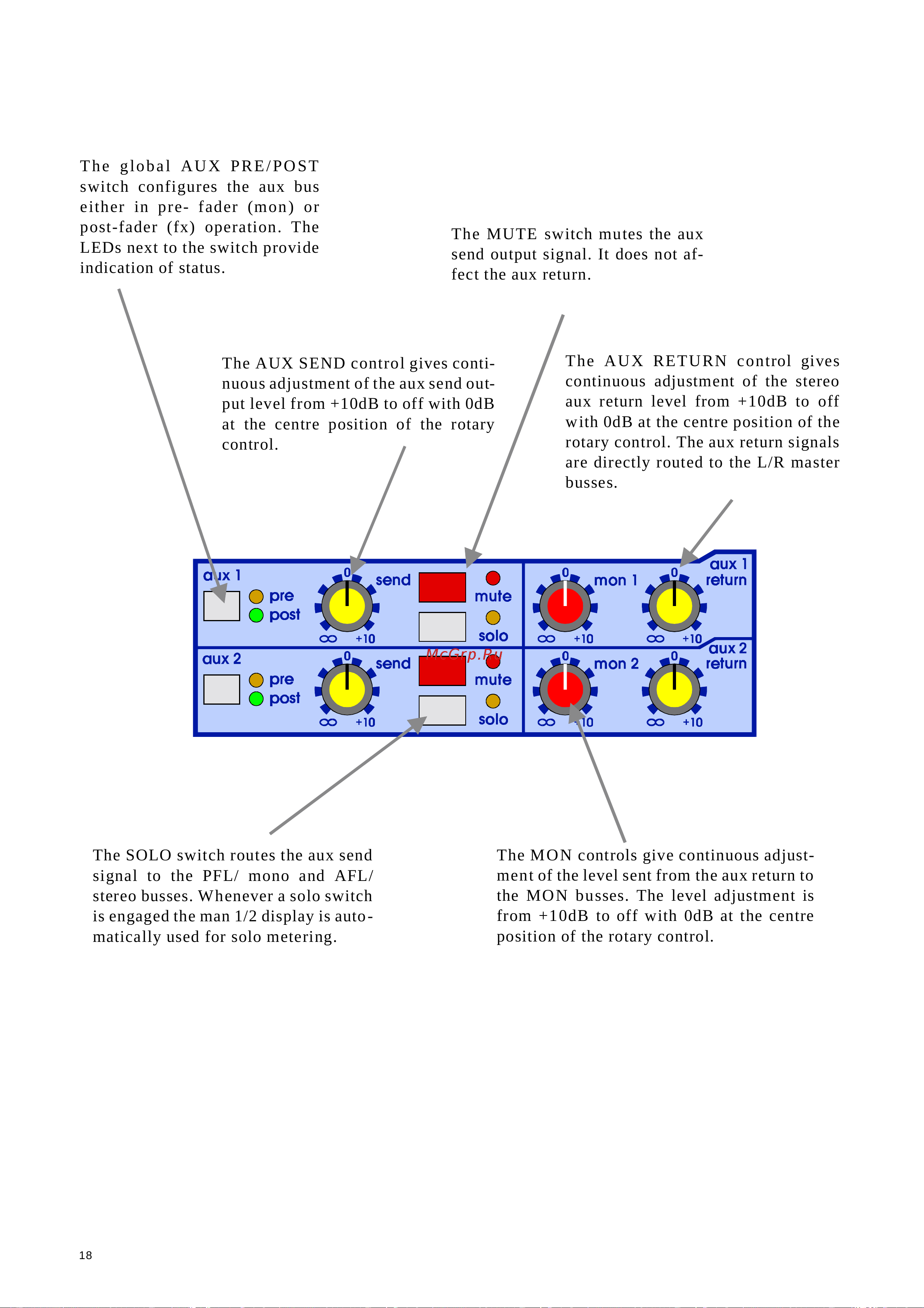

The global AUX PRE/POST

switch configures the aux bus

either in pre- fader (mon) or

post-fader (fx) operation. The

LEDs next to the switch provide

indication of status.

The AUX SEND control gives conti-

nuous adjustment of the aux send out-

put level from +10dB to off with 0dB

at the centre position of the rotary

control.

The MUTE switch mutes the aux

send output signal. It does not af-

fect the aux return.

The AUX RETURN control gives

continuous adjustment of the stereo

aux return level from +10dB to off

with 0dB at the centre position of the

rotary control. The aux return signals

are directly routed to the L/R master

busses.

The SOLO switch routes the aux send

signal to the PFL/ mono and AFL/

stereo busses. Whenever a solo switch

is engaged the man 1/2 display is auto-

matically used for solo metering.

The MON controls give continuous adjust-

ment of the level sent from the aux return to

the MON busses. The level adjustment is

from +10dB to off with 0dB at the centre

position of the rotary control.
