NOTE:

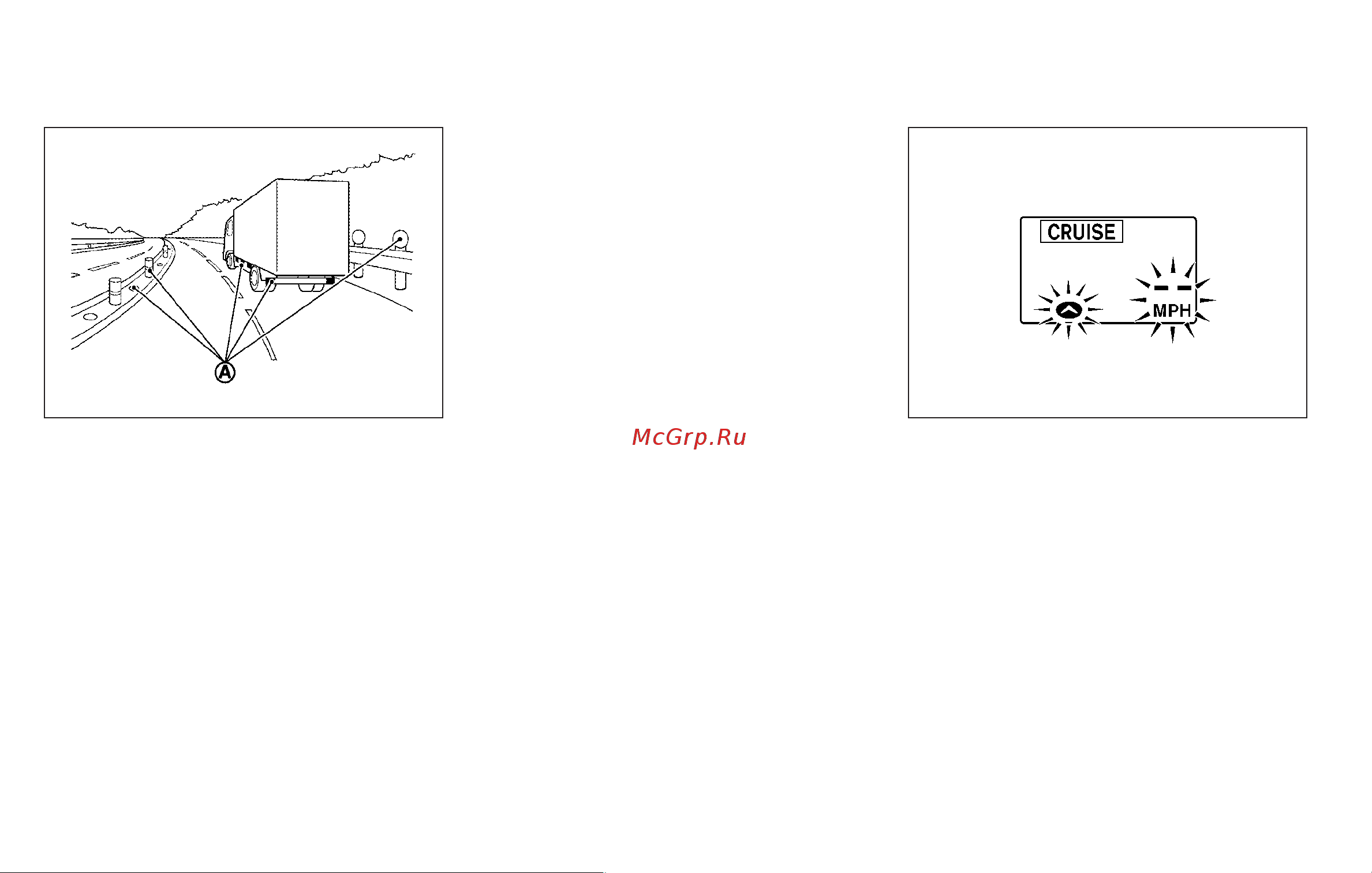

The approach warning chime may sound and the
system display may blink when the ICC sensor
detects some reflectors
䊊
A
which are fitted on
vehicles in other lanes or on the side of the road.
This may cause the ICC system to decelerate or
accelerate the vehicle. The ICC sensor may de-
tect these reflectors when the vehicle is driven
on winding roads, hilly roads or when entering
or exiting a curve. The ICC sensor may also de-
tect reflectors on narrow roads or in road con-
struction zones. In these cases you will have to
manually control the proper distance ahead of
your vehicle.
Also, the sensor sensitivity can be affected by
vehicle operation (steering maneuver or driving
position in the lane) or traffic or vehicle condi-
tion (for example, if a vehicle is being driven
with some damage).
Automatic cancellation
A chime sounds under the following conditions
and the control is automatically canceled.
● When the vehicle speed falls below approxi-
mately 20 MPH (32 km/h)
● When the selector lever is not in the D
(Drive), DS (Drive Sport) or manual shift
mode
● When the windshield wipers are operated at
low speed (LO) or high speed (HI)
● When the rain sensing auto wiper system is
operated and the wiper speed is at least the
same as the LO (low ) position speed
● When the VDC is turned off
● When the VDC operates
Warning light and display
Condition A
The chime sounds and the Intelligent Cruise
Control system is canceled automatically in the
conditions described below. Part of the system
display will come on or blink, making it impos-
sible to set.
● When the VDC is turned off
● When the ABS or VDC (including the traction
control system) operates
● When a tire slips
● When strong light (sunlight, etc.) is directly
shining on the front of the vehicle
SSD0284A SSD0614
Starting and driving 5-35
