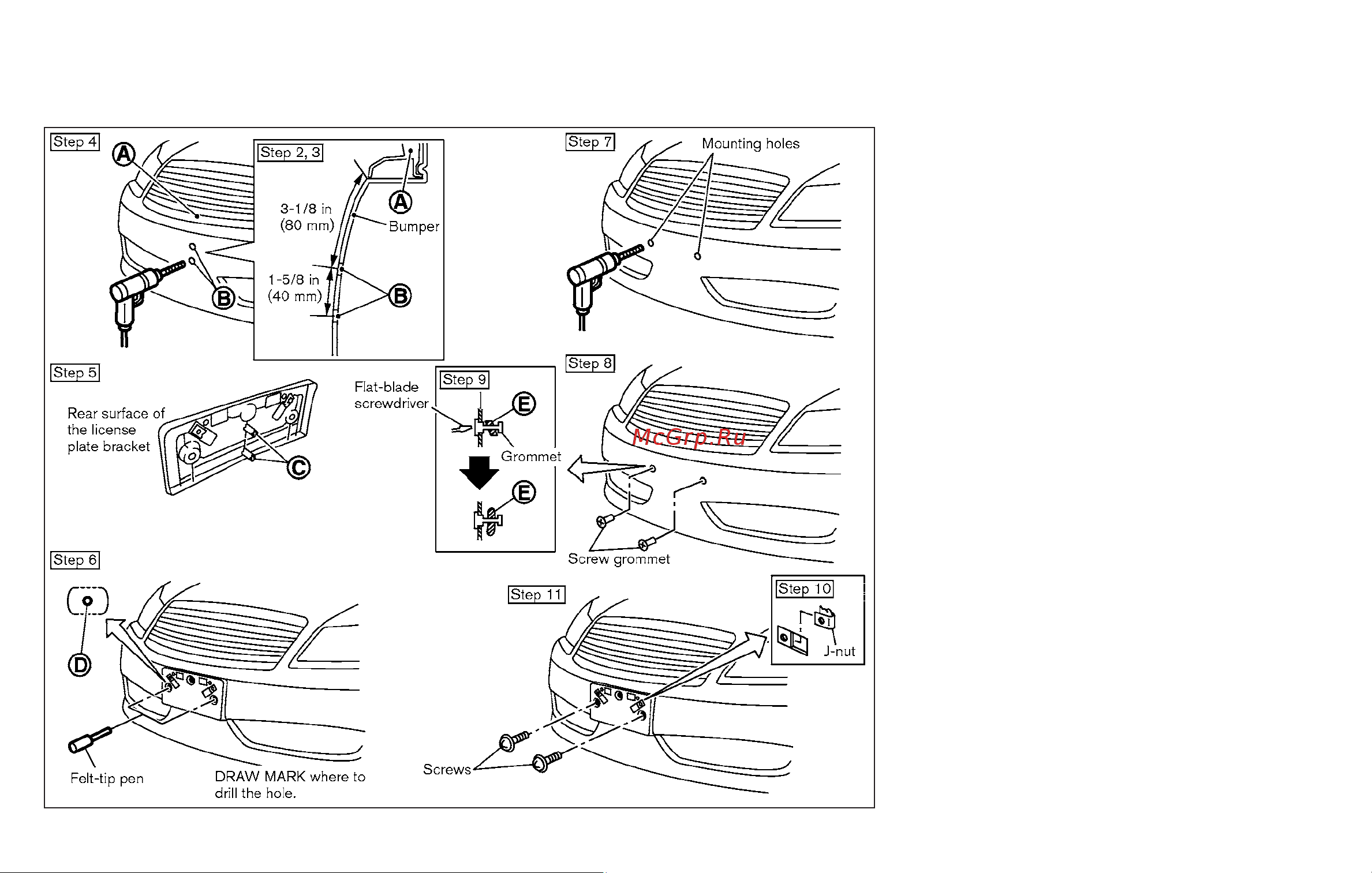

1. Park the vehicle on flat, level ground.

2. Locate the center position indicator

䊊

the lower part of the grille. Measure

straight down from the edge where the

bumper and grille meet to the aligning

holes

䊊

, keeping the tape measure lined

up with the center position indicator.

3. Mark the holes

䊊

with a felt-tip pen.

4. Carefully drill the two aligning holes

䊊

using a 0.39 in (10 mm) drill bit at the

marked locations. (Be sure that the drill

only goes through the bumper fascia.)

5. Line up the bosses

䊊

or license plate

bracket with the holes and hold the li-

cense plate bracket in place.

6. Mark the center of the holes

䊊

with a

felt-tip pen.

7. Carefully drill the two pilot holes using a

0.39 in (10 mm) drill bit at the marked

locations. (Be sure that the drill only goes

through the bumper fascia.)

8. Insert grommets into the hole on the

fascia.

9. Insert a flat-blade screwdriver into the

grommet hole to add 90° turn onto the

part

䊊

STI0551
