In the third control area (located at the bottom of the plug-in), you can

adjust all the parameters in the preset by clicking on and moving the sliders.

You can select different groups of parameters to adjust by clicking the but-

tons in the row at the top of the third control area (in the example above,

I/O Levels, Input Control, Shape, etc.). Some parameters appear as drop-

down menus; click the menu to open it, and click on an option to select it.

When you move a parameter’s slider, an arrow appears where the slider’s

default position is. To return a preset to its default, click on the arrow or

move the slider toward the arrow until the arrow disappears.

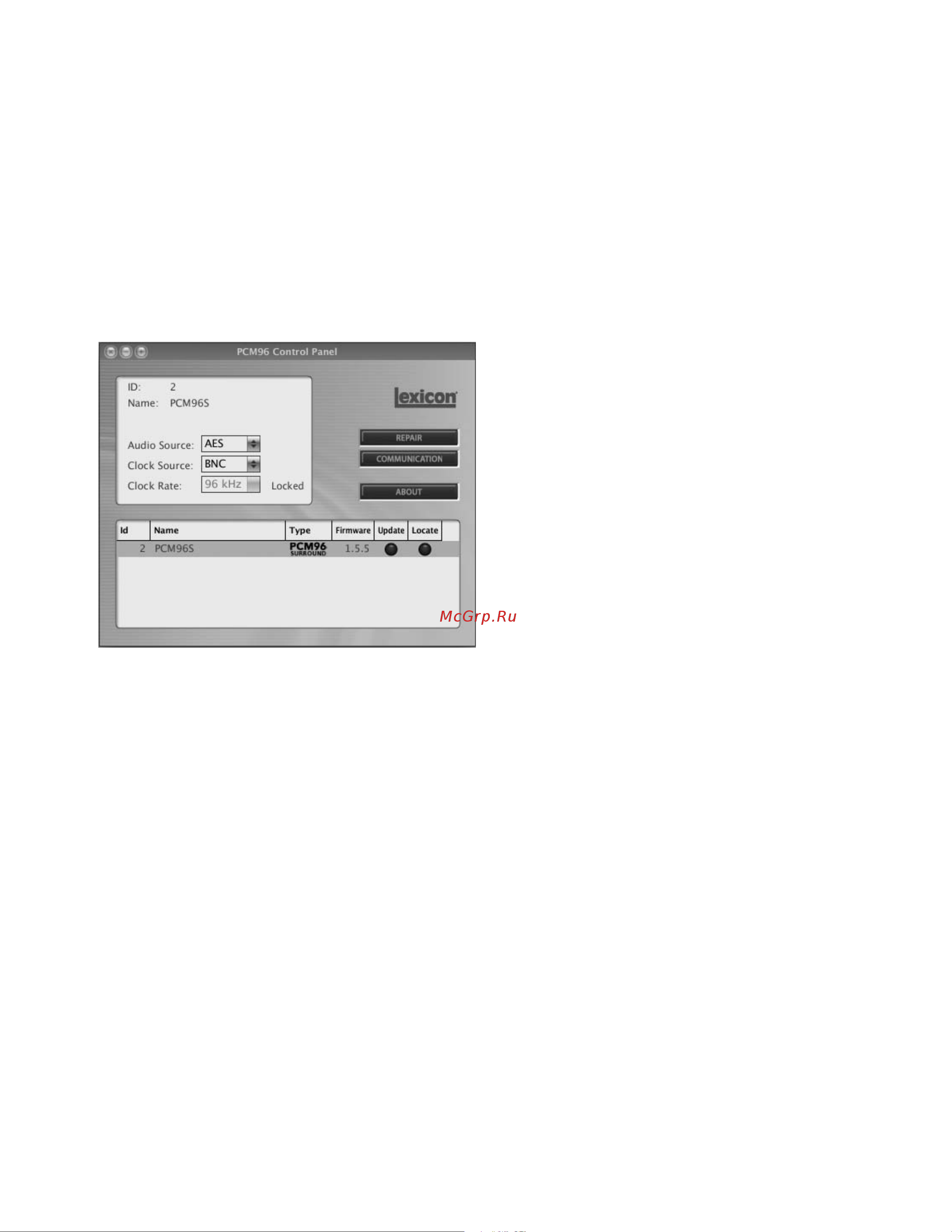

the PCM96 sUrroUnd PlUg-in Control Panel

You can manage various network- and software-related aspects of the

PCM96 Surround with the Control Panel. To open the

Control Panel, click the PCM96SurroundControlPanel

icon located in the System Preferences menu on your

computer.

Repair

Click to re-initialize communication between the

PCM96 Surround and your computer.

PCM96 Surround Communication

Click to check the connection status between the

PCM96 Surround and your computer, and to open the

PCM96 Surround Setup dialog (described on page 23).

About

Click to see the names of the PCM96 Surround devel-

opment team, and to check for software updates.

Name

Assign a name to your PCM96 Surround to identify it on a network.

Assign a number to your PCM96 Surround for network purposes.

Audio Source

Controls the PCM96 Surround unit’s Audio Source parameter. Select Analog

or AES.

Clock Source

Controls the PCM96 Surround unit’s Clock Source parameter. Select

Internal, AES or BNC.

Clock Rate

Controls the PCM96 Surround unit’s Clock Rate parameter. Select 44.1

kHz, 48 kHz, 88.2 kHz, or 96 kHz.
