Locate
Click to make the PCM96 Surround display flash, so you can easily find
the curently selected PCM96 Surround in a large rack full of PCM96
Surrounds.
Update
Click to automatically update the PCM96 Surround software via the
Internet.

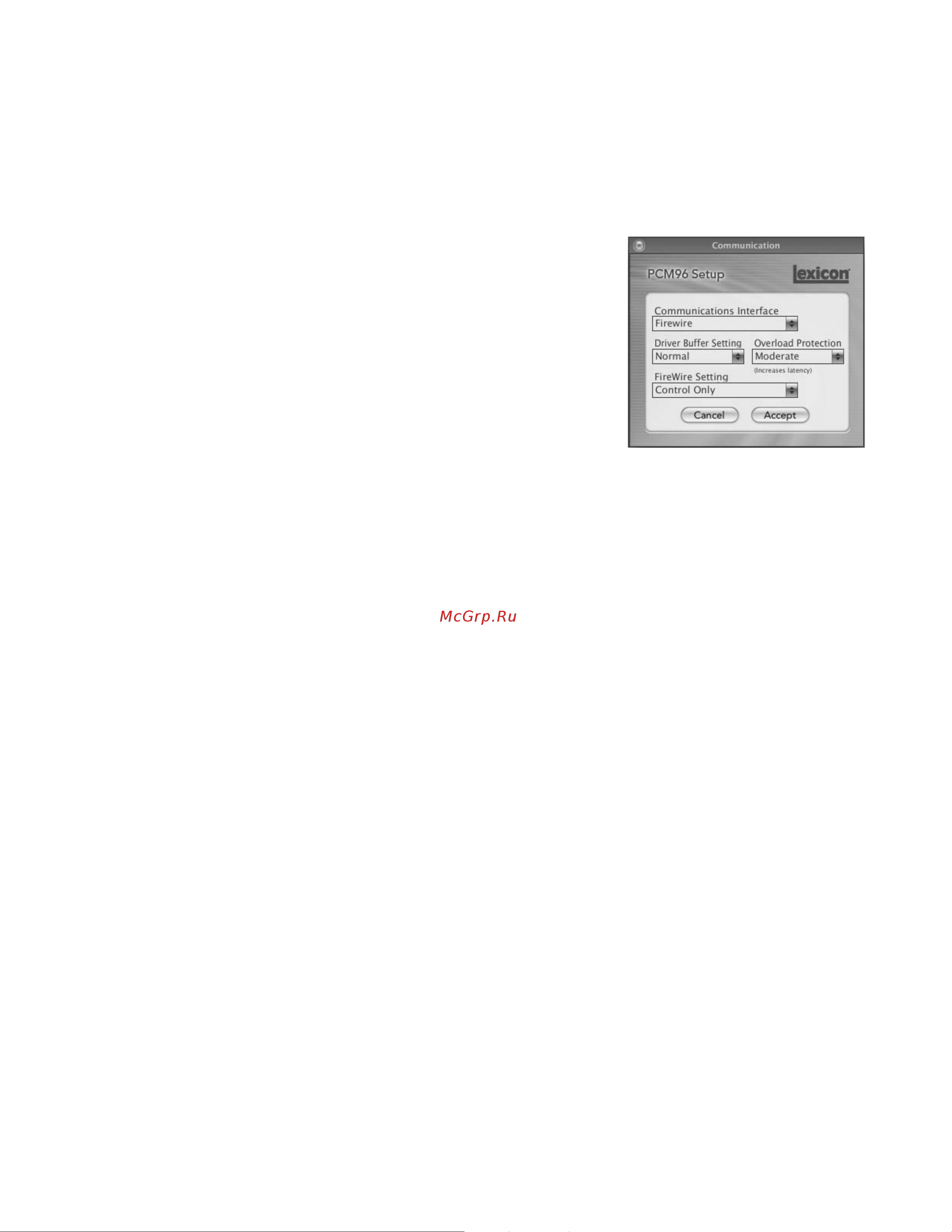

PCM96 sUrroUnd setUP dialog
When you click the PCM96 Surround Communication button in the
PCM96 Surround Control Panel, the PCM96 Surround Setup dialog
appears.
Communications Interface
Select your computer’s connection to the PCM96 Surround here. Choose
from Firewire
TM
or “Ethernet X,” where “X” is a number corresponding to
your computer’s network interface card.
Driver Buffer Setting
This control manages latency. Choose from Max Latency (highest latency,
least chance of audio droput), Slow (higher latency, less chance of audio
dropout), Normal (medium latency, medium change of audio dropout), and
DAW (lower latency, more chance of audio dropout).
FireWire Setting
Determines if the plug-in streams audio to and from the PCM96 Surround,
or if the plug-in controls the PCM96 Surround without streaming audio.
Choose from “Control And Audio” and “Control Only.” FireWire stream-
ing is supported only up to OS X 10.6. Control Only is supported for all
versions.
Note that when the PCM96 Surround is in Control Only mode, you may
be prompted to “Select the PCM96 Surround you would like to connect to.”
When this happens, select the channel you’d like to apply the plug-in to.
Cancel
Click to cancel any changes you’ve made and return to the PCM96
Surround Control Panel.
Accept
Click to save any changes you’ve made and return to the PCM96 Surround
Control Panel.
streaMing PlUg-in ConfigUrations
When the PCM96 Surround is used as a streaming plug-in, using FireWire
I/O, the cascaded options will be unavailable. The increased channel count
of the FireWire connection lets you use up to four simple mono or two sim-
ple stereo virtual machines at the same time. There are no cascade configura-
tions available although effects can still be cascaded in the DAW. FireWire
streaming is supported only up to OS X 10.6.
• Single Stereo
• Two Stereo
• Dual Mono
• Four Mono
• Two Mono and One
Stereo
• Single Two In Four Out
• Single Four In Four Out
• Single Two In Five Out
• Single Five In Five Out
• Single Six In Six Out
The Setup Dialog
