User's Guide ADI-6432R BNC © RME

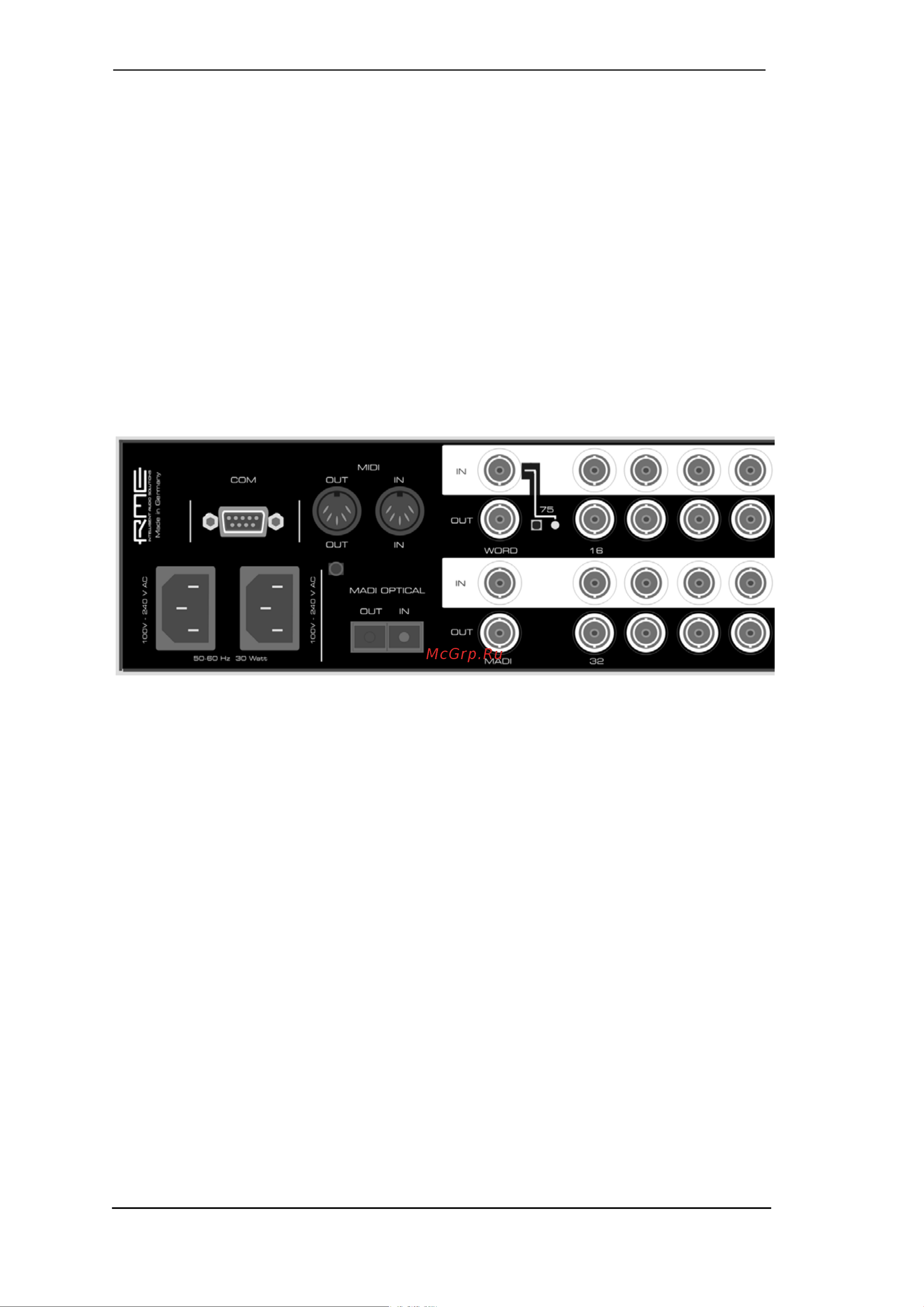

The rear of the ADI-6432R BNC provides the following connections: 64 BNC connectors (AES-

3id I/O), two MADI optical, two MADI coaxial (BNC), two word clock (BNC), two MIDI (5-pin

DIN), one RS232 (D-Sub), and two mains power.

MADI I/O optical: Standard MADI ports.

MADI I/O koaxial (BNC): Standard MADI ports.

AES-3id (64 x BNC): Each of the 64 BNC sockets transfers 2 channels of digital audio each.

WORD IN (BNC): A push switch allows to activate internal termination (75 Ohms).

WORD OUT (BNC): Standard word clock output.

MIDI I/O (5 pin DIN): MIDI input and output via 5-pin DIN jacks. Used for transmission of MIDI

data via MADI, and for remote control of the ADI-6432.

COM (9 pin D-sub): Serial interface for data transmission via MADI.

IEC receptacle for power connection. The specially developed, internal hi-performance switch

mode power supply makes the ADI-6432 operate in the range of 100V to 240V AC. It is short-

circuit-proof, has an integrated line-filter, is fully regulated against voltage fluctuations, and sup-

presses mains interference.

The ADI-6432R BNC uses two identical, complete power supplies, which operate simultane-

ously and in parallel. This allows for a redundant operation on the power side by connecting the

second mains receptacle to a different power source. The unit will continue to operate without

interruption if one of the power sources fails.
