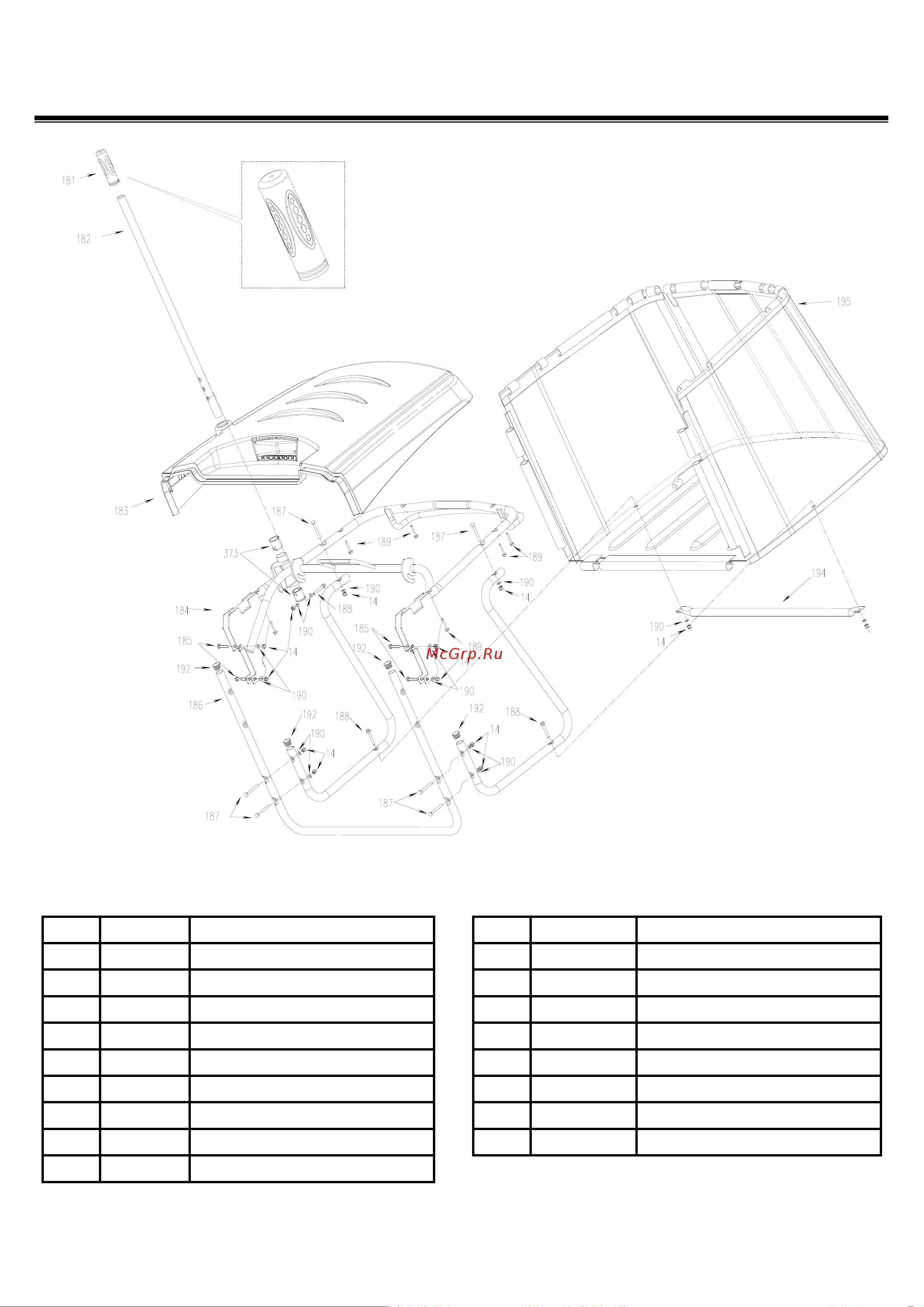

DDE CTH175-102 [14/21] Grass catcher assembly

Grass catcher assembly

No Parts no. Description

189 B5285-5535 Tapping screws ST5.5*35

190 B97.1-6 Washer 6

191 T003503 Right supporting pipe

192 2111055 Pipe plug

193 T003501 Left supporting pipe

194 T003504 Supporting pipe

195 T003580 Sutured cloth grass catcher

373 T003533 Shaft sleeve

No Parts no. Description

14 B6182-6 Nut M6

181 W401033 Handle sheath

182 T003531 Discharging grass handle

183 T003540 Crass catcher cover assembly

184 T003570 Crass catcher frame welding assembly

185 B801-640 Bolt M6*40

186 T003502 Fixed pipe

187 B12-650 Bolt M6*50

188 B5787-640 Bolt M6*40
