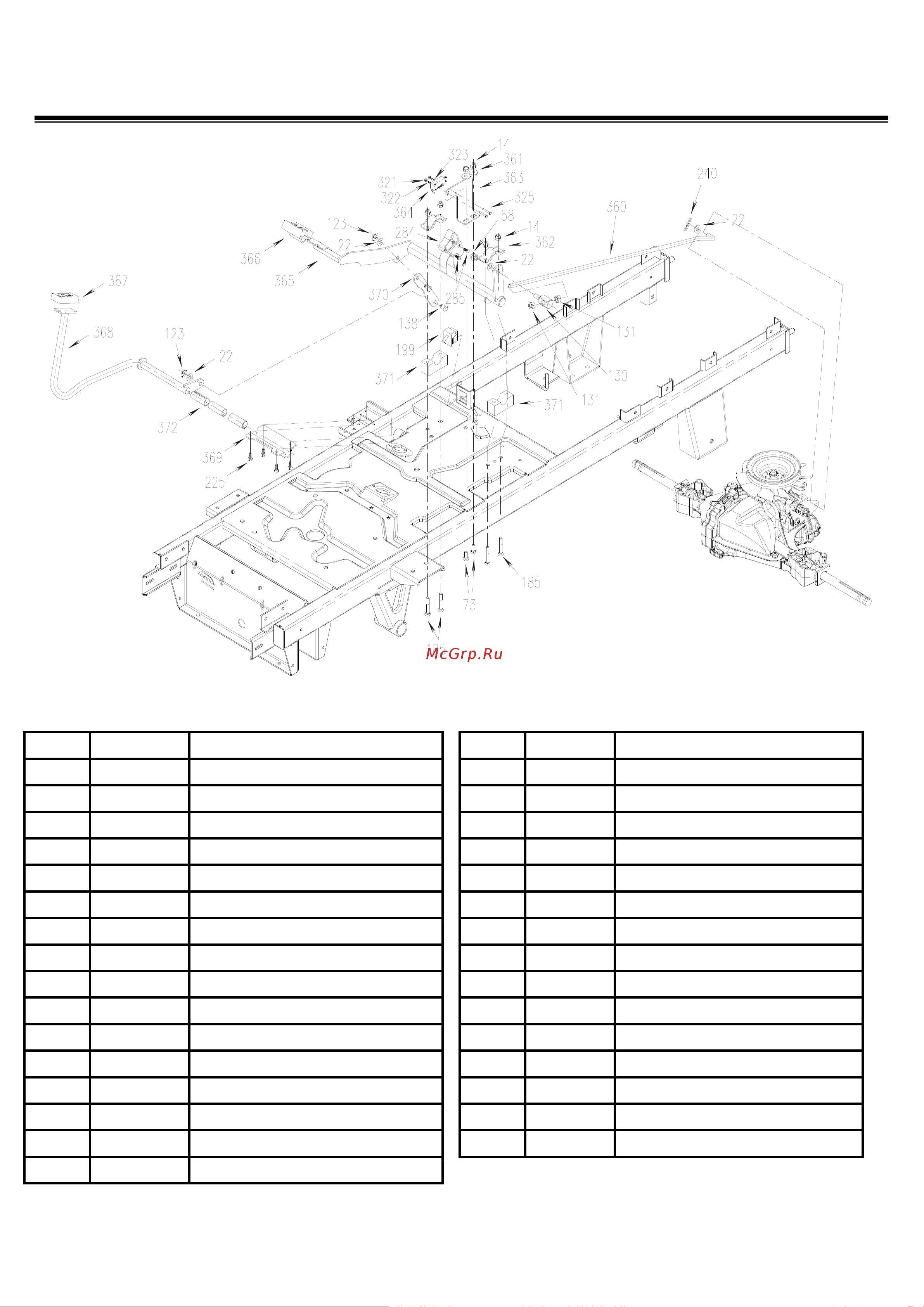

DDE CTH175-102 [21/21] Foot control system

Foot control system

No. Parts no. Description

14 B6182-6 Nut M6

22 B97.1-8 Washer 8

58 B6182-8 Nut M8

73 B801-616 Bolt M6*16

123 T002012 Limit fastener

130 T002002 Fixed pin

131 B6170-8 Nut M8

138 T002010 Pin

185 B801-640 Bolt M6*40

199 T005003 Switch HC-050K.4-2

225 B5285-4813 Screw 4.8*13

240 XSZ56.1-17 Pin

284 T001548 Switch clicking block

285 B5285F-4295 F type tapping screw ST4.2*9.5

321 B6170-3 Nut M3

322 B93-3 Spring washer 3

No. Parts no. Description

323 B97.1-3 Washer 3

325 B5783-320 Bolt M3*20

360 T006025 Pull rod welding assembly

361 B96-6 Washer 6

362 T006003 Small cover plate

363 T006082 Switch installed board

364 T005004 Micro switch WS2-05D4-W150-150

365 T006050 Forward structure welding assembly

366 T006016 Forward pedal

367 T006017 Reverse pedal

368 T006060 Reverse structure welding assembly

369 T006018 Cover plate

370 T006041 Joint plate

371 T006001 Nylon housing

372 T006019 Nylon bushing
