DDE CTH175-102 [20/21] Seat assembly

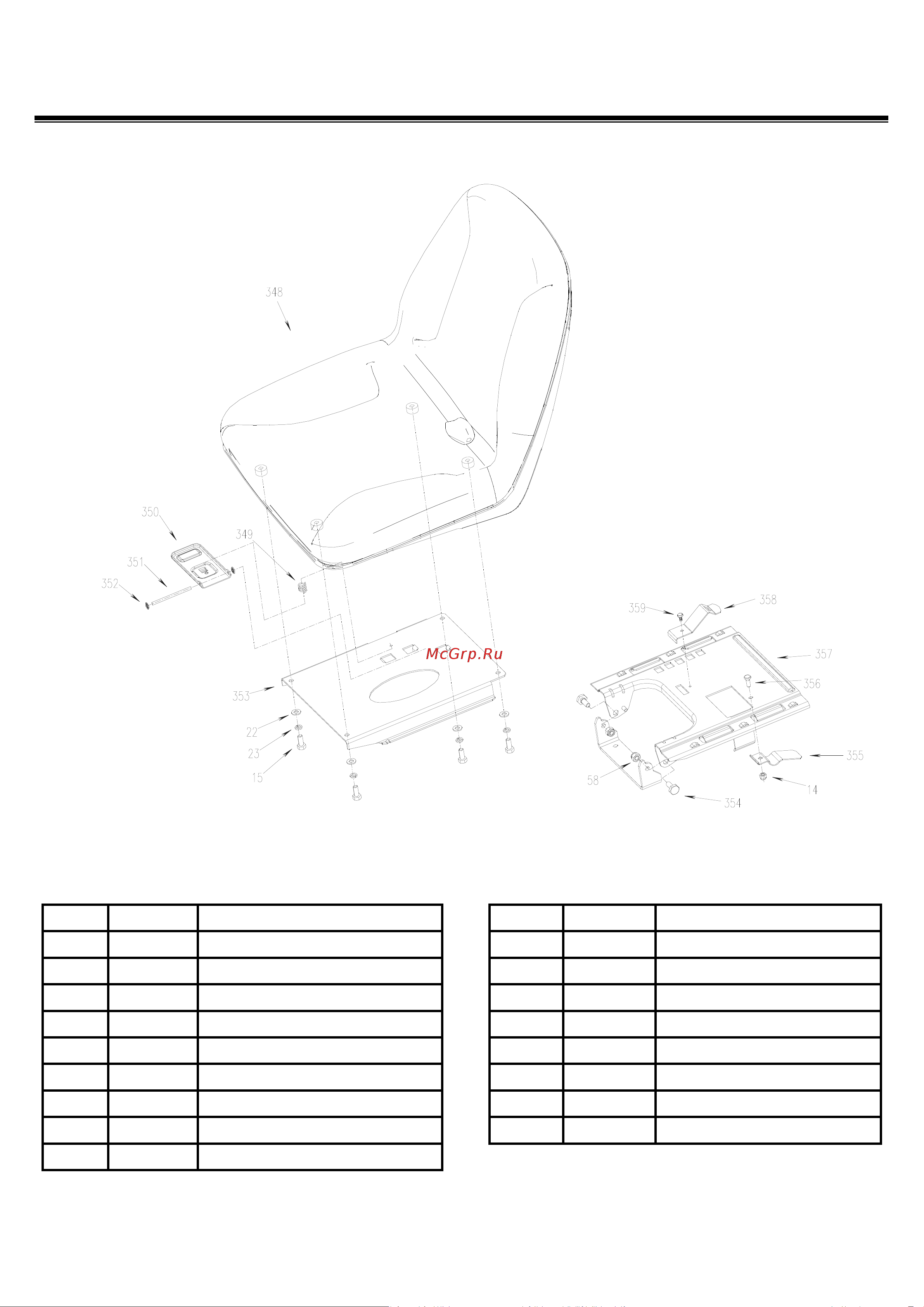

Seat assembly

No. Parts no. Description

14 B6182-6 Nut M6

15 3300106 Bolt 5/16-18UNC*3/4

22 B97.1-8 Washer 8

23 B93-8 Spring washer 8

58 B6182-8 Nut M8

348 T001802 Seat

349 T001959 Pressure spring

350 T001956 Seat adjusting plate

351 T001958 Joint rod

No. Parts no. Description

352 4004228 Star lock washer

353 T001952 Seat portable plate

354 T001801 Pin roll

355 T001955 Joint plate

356 B5781-616 Bolt M6*16

357 T001960 Seat fixed plate welding assembly

358 T001954 Joint plate

359 B5285-4895 Tapping screw 4.8*9.5
