INSTALLATION

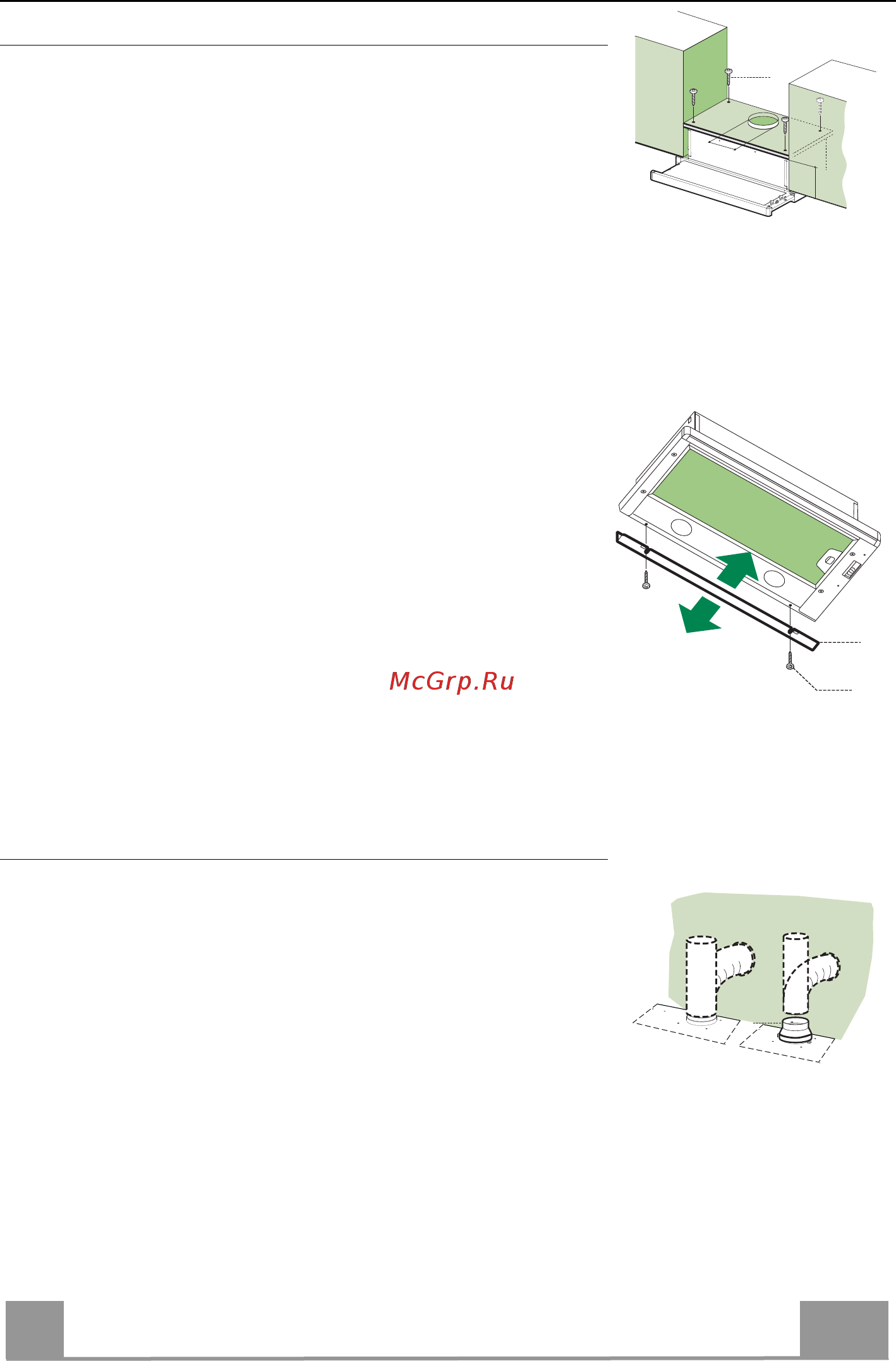

Drilling the Support surface and Fitting the Hood

SCREW FITTING

• The hood support surface must be 135 mm above the bottom

surface of the wall units.

• Drill the support with a ø 4,5 mm drill bit, using the drilling

template provided.

• Cut a hole ø 150 mm in size on the support surface, using the

drilling template provided.

• Fix using the 4 screws 12a (4,2 x 44,4) provided.

12a

135

150

CLOSING ELEMENT

• The space between the edge of the hood and the rear wall can

be closed by applying the element 20 provided, using the

screws 12b.

12b

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the

chimney using either a flexible or rigid pipe ø 150 or 120 mm,

the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection, insert the re-

ducer flange 9 on the hood body outlet.

• Fix the pipe in position using sufficient pipe clamps (not sup-

plied).

• Remove possible charcoal filters.

ø 150

ø 120
