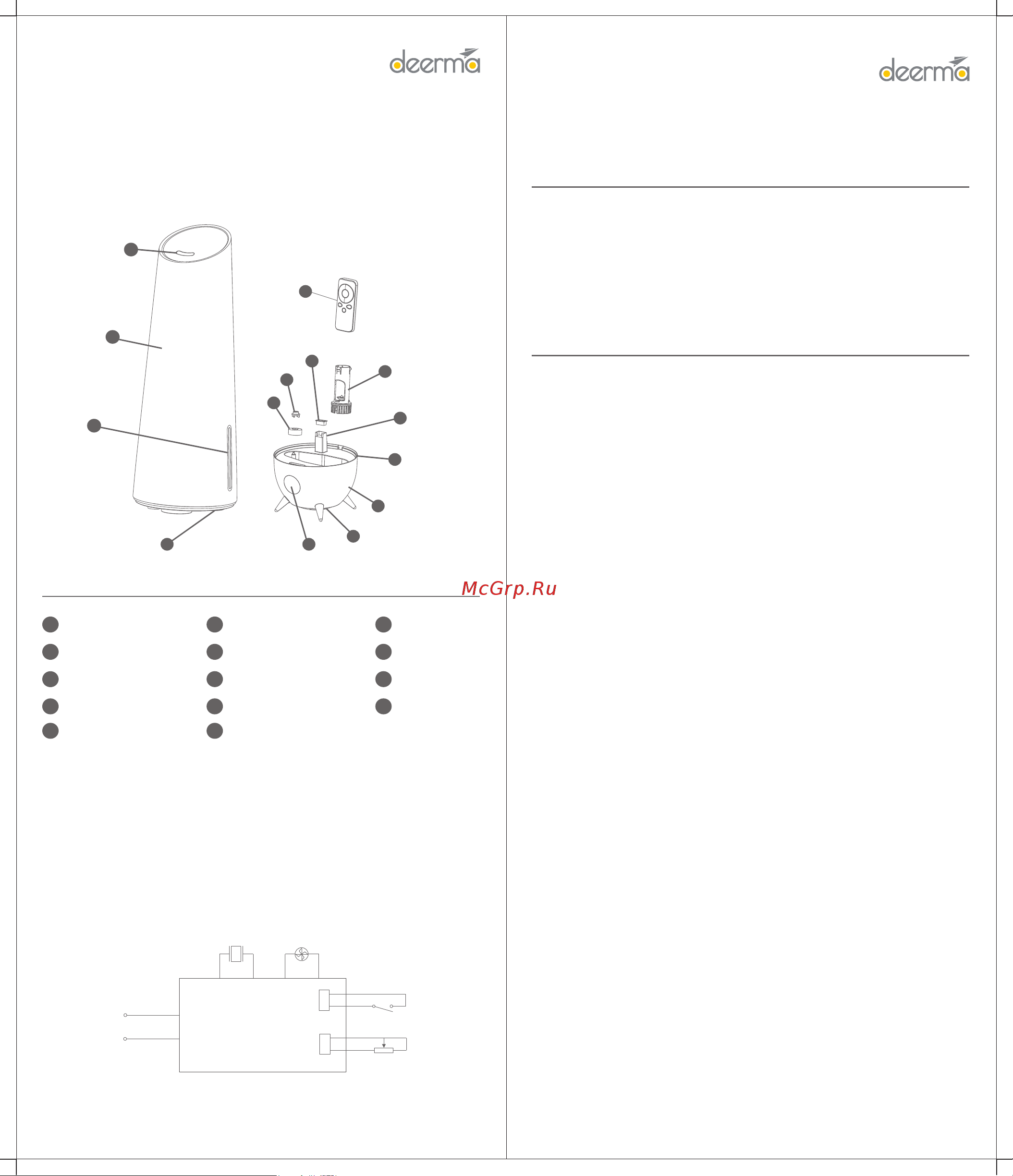

Structure Diagram
1
2
4 5
6
7
8
9
10
11
12
13
14
Water tank
Display panel
Power cord
Silicone box
2
5
8
11
Water gauge
Base air inlet
Air outlet
Float gland
3
6
9
12
Mist nozzle
Water tank port
Base
Water valve kit
Float
1
4
7
10
13
Remote control unit
14
Circuit Diagram
Atomizer
Reed switch
Fan
L
N
2
1
2
1
Regulator
220-240V~ /50-60Hz
This diagram is only for reference, and is subject to update without
notice.Please refer to the actual product. Deerma reserves the right to
final interpretation.
1
Working Principle
Safety Precautions
Deerma humidifier atomizes water mist into 1～5 micron ultramicrons
based on the principle that ultrasonic wave can generate 1.7 million
times of high frequency oscillation per second and diffuses the mist into
air through a pneumatics drive so as to realize the purpose of even air
humidification.The humidifier can keep rooms under ideal humidity and
prevent static electricity.
1. Thank you for choosing Deerma humidifiers. Read this instruction manual
carefully before use.
2. Be sure to apply the voltage and frequency consistent with those of this
humidifier: 220-240V～ 50-60Hz.
3. Do not disassemble, repair or modify this humidifier without authorization.
4. If the power cord is damaged, it must be replaced by the manufacturer or
its maintenance department or similar professional maintenance department
or personnel in order to avoid danger.
5. In case of any abnormality, please unplug the power plug immediately,
and deliver this humidifier for repair by the manufacturer or its maintenance
department or similar professional maintenance department or personnel.
6. Clear the dust from the power plug regularly.
7. Before cleaning or moving this humidifier, please power it off and unplug
the power plug.
8. To unplug the power plug, please hold it firmly instead of pulling it.
9. Do not move or turn over this humidifier when it is energized or when
there is water inside.
10. Do not touch the water and parts in the water channel after power on.
11. Do not cover the air inlet and mist nozzle with towels and other items
when this humidifier is working.
12. This humidifier is not a toy. In order to avoid accidents, please keep it
away from babies and children. Do not put it in a crib, stroller or playpen. Do
not allow babies and children to play or use it.
13. Do not use this humidifier on an inclined table, and please place it in a
flat and firm place.
14. Do not add essential oil or similar substances that are not produced or
supervised by our company in the water channel and water tank.
15. Do not use this humidifier in the kitchen, please place it away from heat
sources, avoid direct sunlight exposure, and place it 2m away from furniture
and other household appliances to avoid moisture.
16. Please unplug the power plug before adding water.
Parameters
Product name: Floor type humidifier
Rated power: 25W
Rated voltage/frequency: 220-240V~ /50-60Hz
Product size: 180*210*595mm
Packing list: Complete machine, instruction manual (including warranty
card) and remote control unit
Product model: DEM-LD612
Rated capacity: 6L
2
22
2
3
